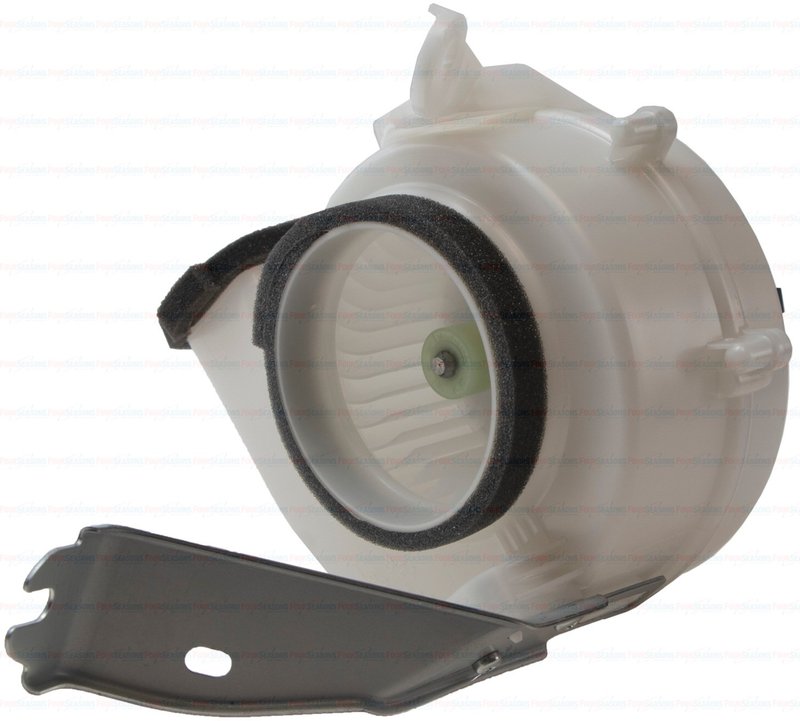

Four Seasons 76807 Drive Motor Battery Pack Cooling Fan Assembly

Overview of Four Seasons Battery Fan Motor 76807

The Four Seasons Battery Fan Motor 76807 is designed specifically for Toyota Prius models to ensure optimal battery cooling performance. This drive motor battery pack cooling fan assembly helps maintain the proper temperature of your hybrid battery system, supporting efficient operation and longevity.

• Connector Type: 2 spade connector
• Number of Terminals: 2
• Rotation Direction: Clockwise (CW)
• Shaft Shape: Round
• Style: Flanged
• Type: Blower motor with wheel
• Voltage: 12V
• Vented for battery cooling

Four Seasons Battery Fan Motor Product Line

The Battery Fan Motor line by Four Seasons focuses on reliable blower motors designed to maintain proper cooling for battery packs in hybrid vehicles. This product line emphasizes compatibility and durability, providing components like the 76807 model that meet specific vehicle requirements such as those for the Toyota Prius.

Detailed Product Description

The Four Seasons Battery Fan Motor 76807 is a 12-volt blower motor featuring a flanged style and a round shaft shape, engineered to fit the battery cooling system of Toyota Prius vehicles. It includes a wheel for effective airflow and uses a 2 spade connector with two terminals for secure electrical connections. The motor rotates clockwise, ensuring proper ventilation within the battery pack housing. This vented motor assembly is essential for maintaining the hybrid battery's temperature within safe operating limits.

Common Applications and Issues Addressed

• Prevents battery overheating in Toyota Prius hybrid systems
• Replaces faulty or worn-out battery cooling fan motors
• Restores proper airflow to battery pack compartments
• Helps maintain battery efficiency and longevity
• Reduces risk of battery-related performance issues

Installation Notes and Tips

When installing the Four Seasons Battery Fan Motor 76807, ensure the 2 spade connectors are securely attached to the vehicle’s wiring harness. Verify the clockwise rotation direction matches the original motor to maintain proper airflow. The flanged style allows for straightforward mounting in the battery pack housing. Always disconnect the vehicle battery before installation to avoid electrical hazards.

Quality Assurance

Four Seasons manufactures the Battery Fan Motor 76807 to meet OEM specifications for Toyota Prius models. This part undergoes quality control testing to ensure reliable performance and durability. While specific warranty details are not provided, Four Seasons products typically come with a limited warranty covering defects in materials and workmanship.
