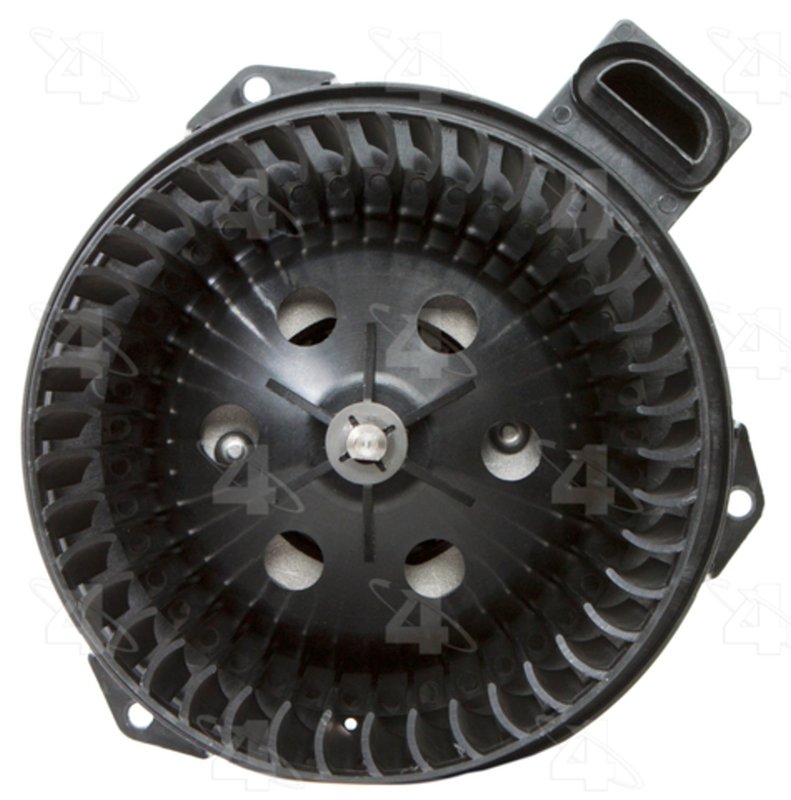

Four Seasons 76970 HVAC Blower Motor

Overview of Four Seasons Blower Motor 76970

The Four Seasons Blower Motor 76970 is designed specifically for Toyota Yaris and Yaris R models, providing reliable HVAC performance. This new, OE replacement blower motor assembly features a flanged design and includes a cage wheel for efficient airflow.

• 12 Volt operation suitable for standard automotive electrical systems
• Flanged end style for secure OE mounting
• Counterclockwise (CCW) rotation for proper fitment
• Includes cage wheel with a diameter of 5.25 inches and height of 2.75 inches
• Vented motor housing for improved cooling and durability
• Lead wire terminal type with two terminals and one female connector
• Motor dimensions: 3.0 inch diameter and 2.3125 inch length
• Shaft length of 1.75 inches (44.45 mm)
• Constructed with durable plastic materials

Four Seasons Blower Motor Product Line Details

The Four Seasons Blower Motor product line focuses on delivering direct OE replacement HVAC blower motors that meet original equipment specifications. The 76970 model maintains the exact mounting style, electrical requirements, and physical dimensions to ensure seamless integration with Toyota Yaris and Yaris R HVAC systems. This line emphasizes compatibility and reliable airflow performance through quality materials and design features such as vented housings and included cage wheels.

Product Description and Specifications

This HVAC blower motor assembly (part number 76970) is engineered for Toyota Yaris and Yaris R vehicles requiring a 12-volt motor with a flanged mounting style. The motor diameter measures 3 inches (76.2 mm) and the length is approximately 2.31 inches (58.74 mm), providing a compact yet efficient design. The included cage wheel, measuring 5.25 inches in diameter and 2.75 inches in height, ensures optimal air movement within the HVAC system. The motor shaft length is 1.75 inches (44.45 mm), and the unit features a vented housing to help dissipate heat during operation. The lead wire terminal type with two terminals and a single female connector supports straightforward electrical connections. Constructed from durable plastic, this blower motor assembly is designed for OE mounting and is a new replacement part.

Common Applications and Issues Addressed

• Restores proper airflow in Toyota Yaris and Yaris R HVAC systems
• Replaces faulty or worn blower motors causing weak or no air circulation
• Eliminates unusual noises or vibrations from the blower motor assembly
• Resolves overheating issues due to vented motor design
• Corrects electrical connection problems with lead wire terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Toyota Yaris or Yaris R models before installation
• Disconnect the battery prior to removal of the old blower motor to prevent electrical hazards
• Verify the flanged mounting points align correctly for secure installation
• Check the rotation direction (CCW) matches the original motor to avoid performance issues
• Inspect wiring connections and confirm the female connector fits properly

Quality Assurance and Warranty

The Four Seasons Blower Motor 76970 is a new, OE replacement part manufactured to meet original equipment standards. It undergoes quality control inspections to ensure durability and reliable operation within Toyota Yaris and Yaris R HVAC systems. This part is backed by Four Seasons' standard warranty coverage, providing assurance of performance and fitment.
