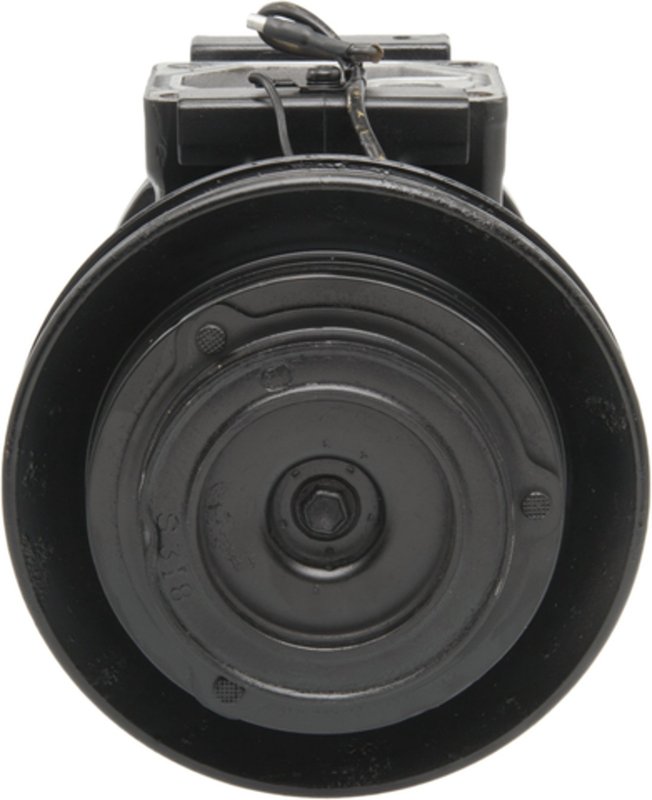

Four Seasons 77350 A/C Compressor

Reman A/C Compressor for Acura RL and TL

Four Seasons Reman Compressor 77350 is a remanufactured A/C compressor for select Acura applications with R134a refrigerant. It includes the clutch and comes oil filled with PAG 46, making it a direct-fit service part for restoring cabin cooling performance on supported Acura RL, TL, and Legend models.

Key Features

• Remanufactured Four Seasons A/C compressor, part number 77350
• Uses R134a refrigerant and PAG 46 refrigerant oil
• Clutch included with 12V coil voltage
• 10PA20C compressor type with Nippondenso design
• Serpentine belt pulley with 5-groove configuration
• Pad mount suction and discharge ports
• Tangent mount design with 48.000 mm mount distance
• May require use of OE manifold

Product Details

Four Seasons 77350 is a reman compressor built for Acura HVAC systems that use the 10PA20C compressor layout. It features a 5.500-inch clutch diameter, 139.700 mm pulley diameter, and a butt terminal connection with a 1-wire lead coil clock position. This remanufactured compressor is oil filled and supplied with the clutch installed, helping simplify replacement on vehicles that match the listed fitment.

This part cross-references FEL-PRO 35062 for the same application. Four Seasons Reman Compressor 77350 is listed for 1991-1995 Acura Legend, 1996 Acura TL, 1996 and 2003-2004 Acura RL, and 1997-2002 Acura RL with a 10PA20C compressor and reman w/ clutch.

Common Problems This Part Can Address

• No cold air from the A/C system
• Compressor noise or seizure
• Clutch engagement failure
• Low system pressure caused by compressor wear
• Weak cooling performance in Acura RL, TL, or Legend HVAC systems

Installation Notes and Tips

• Verify the vehicle uses R134a refrigerant before installation
• Confirm PAG 46 oil specification during service
• Check manifold and port style before ordering; OE manifold may be required
• Inspect the serpentine belt, O-rings, and system contamination before compressor replacement
• Evacuate and recharge the system according to factory service procedures

Quality Assurance

Four Seasons remanufactured compressors are rebuilt to meet application-specific HVAC service requirements for supported Acura vehicles. Part number 77350 is a remanufactured compressor assembly with clutch included for direct replacement use on listed fitments.
