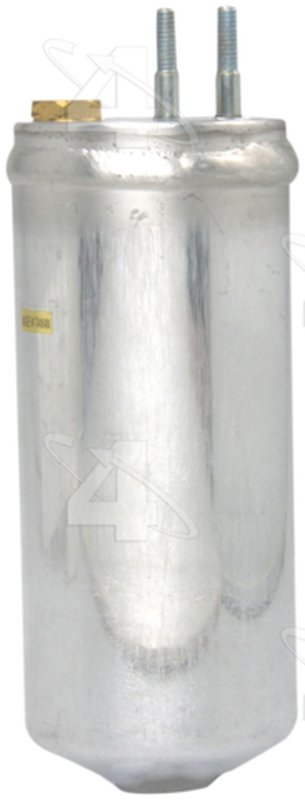

Four Seasons 83002 A/C Receiver Drier

Four Seasons 83002 A/C Receiver Drier

Four Seasons 83002 is an aluminum A/C receiver drier with pad mount connections, built for HVAC systems that need moisture control and refrigerant filtration. It includes desiccant and gasket/seal components, and it meets or exceeds OEM requirements for the listed applications.

Key Features

• Aluminum filter drier construction
• Pad mount inlet and outlet fittings
• Desiccant included for moisture removal
• Switch port included; no service port
• Gasket/seals included
• Meets or exceeds OEM specifications
• Body diameter: 2.375 in. / 60.325 mm
• Overall length: 6.000 in. / 152.400 mm

Product Details

The Four Seasons Filter Drier line is built for A/C service applications where refrigerant cleanliness and moisture control are critical. Part number 83002 uses a pad mount design with 1/2 in. inlet and outlet fittings, aluminum housing, and a non-replaceable desiccant element. It also includes the specified O-ring seals for the connection points. This receiver drier is a direct-fit style service part for select Hyundai HVAC systems, including 1994-2000 Hyundai Elantra, 1994-1995 Hyundai Scoupe, and 1997-2001 Hyundai Tiburon.

This part cross-references Monroe Shocks & Struts 172932 for the same application.

What It Is Used For

• Removing moisture from the A/C refrigerant circuit
• Filtering contaminants in the HVAC system
• Restoring proper receiver drier function after A/C service
• Addressing weak cooling caused by a saturated or restricted drier
• Supporting reliable operation in Hyundai Elantra, Scoupe, and Tiburon A/C systems

Installation Notes and Tips

Verify pad mount fitment, inlet and outlet orientation, and switch-port configuration before installation. Replace the receiver drier whenever the A/C system has been opened for service, and inspect mating surfaces and O-rings for cleanliness before assembly. Confirm the vehicle application against the listed fitment for 1994-2000 Hyundai Elantra, 1994-1995 Hyundai Scoupe, or 1997-2001 Hyundai Tiburon.

Quality Assurance

Four Seasons 83002 is listed as meeting or exceeding OEM requirements for the specified applications. The aluminum construction and included sealing components support a service-ready replacement for compatible Hyundai A/C systems.
