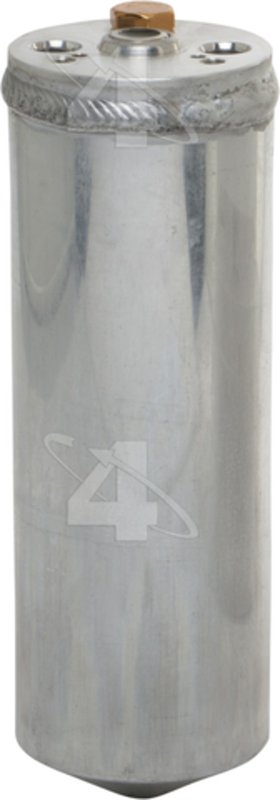

Four Seasons 83036 A/C Receiver Drier
| Brand | Four Seasons 83036 |
|---|---|
| Body Diameter | 2.375 |
| Body Length | 7.000 |
| Connector B Type | Pad Mount |
| Connector Type | Pad Mount |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 60.325 |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Pad Mount |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Pad Mount |
| Inlet Fraction | 3/8 |
| Inlet IN | 0.375 |
| Inlet MM | 10.000 |
| Length MM | 177.800 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | Not Included |
| O-Ring A Number/Desc | [24611] / Green O-Ring |
| O-Ring B Number/Desc | [24650] / Green O-Ring |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 3/8 |
| Outlet IN | 0.375 |
| Outlet MM | 10.000 |
| Overall Depth IN | 7.000 |
| Overall Depth MM | 177.800 |
| Pad Mount | w/ Pad Mount |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port? | w/ Switch Port |
| Type | W/ Pad Mount |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Honda · 1 vehicle |
OE-spec replacement. Meets or exceeds OEM requirements for dependable A/C service.
Aluminum construction. Lightweight body with integrated pad-mount connections.
Desiccant filter drier. Helps remove moisture from the A/C system.
Cross-references FEL-PRO 71249, Four Seasons 83036 and UAC RD1249C for the same application. See all 17.
Four Seasons 83036 A/C Receiver Drier
The Four Seasons 83036 is an aluminum A/C receiver drier built for HVAC systems that use pad-mount connections and a switch port. It is a direct-fit style replacement for the 1998 Honda Passport and is specified with included gaskets/seals and green O-rings for the listed application.
Key Features
- Four Seasons Filter Drier line for automotive air conditioning service
- Aluminum body with pad-mount inlet and outlet fittings
- Desiccant included to help manage moisture in the A/C system
- Switch port included; no service port and no sight glass
- Body diameter: 2.375 in. Body length: 7.000 in.
- Meets or exceeds OEM requirements for the listed application
- Fits 1998 Honda Passport, N/A
Product Details
Four Seasons 83036 is a filter drier/receiver drier assembly for automotive HVAC systems that need moisture control and refrigerant filtration in a pad-mount configuration. The aluminum construction, 3/8 in. inlet and outlet fittings, and included seals support a clean replacement on the 1998 Honda Passport. This part cross-references UAC RD1249C for the same application.
Common A/C Problems It Can Help Address
- Moisture contamination in the refrigerant circuit
- Reduced A/C cooling performance caused by a saturated desiccant
- Debris buildup in the HVAC system
- Leak concerns at worn receiver drier sealing surfaces
- Service issues on a 1998 Honda Passport A/C repair
Installation Notes
Verify pad-mount fitment, inlet and outlet orientation, and switch-port location before installation. Replace the receiver drier whenever the A/C system has been opened for major service, compressor replacement, or contamination cleanup. Use the specified green O-rings and confirm the sealing surfaces are clean and undamaged before reassembly. This part is listed for the 1998 Honda Passport, so match the vehicle and HVAC layout before ordering.
Quality Assurance
Four Seasons lists this receiver drier as meeting or exceeding OEM requirements for the stated application. The part number is 83036, and the Four Seasons 83036 designation is useful when confirming interchange and service references for the 1998 Honda Passport.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Honda | Passport | N/A | Filter Drier |
