Four Seasons 83039 A/C Receiver Drier

Four Seasons 83039 A/C Receiver Drier

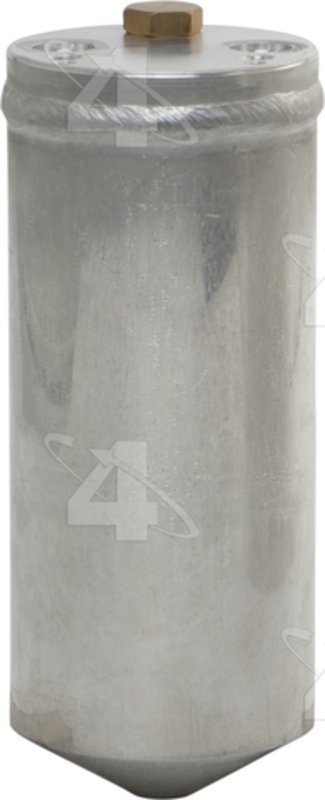

Four Seasons 83039 is an aluminum A/C receiver drier built for HVAC systems that use a pad mount connection and switch port. It is listed for 2001-2003 Mazda Protege applications and is a direct-fit style replacement for service work on the air conditioning system.

Key Features

• Aluminum receiver drier construction
• Pad mount inlet and outlet fittings
• Desiccant included to help manage moisture in the A/C system
• Gaskets/seals included
• Switch port included; no service port
• Meets or exceeds OEM requirements
• Dimensions: 2.375 in. body diameter, 5.625 in. body length

Product Details

This Four Seasons Filter Drier line part is engineered for A/C systems that require moisture control and refrigerant filtration in a compact pad mount design. The aluminum body measures 2.375 inches in diameter and 5.625 inches in overall length, with 1/2-inch inlet and outlet fractions and .482-inch inlet/outlet fitting diameter. It includes a non-replaceable desiccant element, green O-ring seals, and a switch port, while a mounting bracket and service port are not included. Fits 2001-2003 Mazda Protege, N/A. This part cross-references UAC RD10106C for the same application. Four Seasons 83039 is also listed under the Filter Drier product line for HVAC service applications where pad mount receiver drier construction is required.

Common Problems This Part Addresses

• Moisture buildup inside the A/C system
• Reduced refrigerant flow through a contaminated receiver drier
• Seal leakage at pad mount connections
• Service issues related to a worn or saturated desiccant element
• Poor A/C performance caused by restricted filtration

Installation Notes

Verify pad mount fitment, port orientation, and switch-port requirements before installation. Replace the receiver drier whenever the A/C system has been opened for major service, compressor replacement, or contamination cleanup. Inspect mating surfaces and seals carefully, and follow the vehicle service procedure for evacuation and recharge after installation. Fits 2001-2003 Mazda Protege, N/A.

Quality Assurance

Four Seasons 83039 is specified as meeting or exceeding OEM requirements for the listed application. The aluminum construction and included seals support proper system sealing when installed according to factory service procedures.
