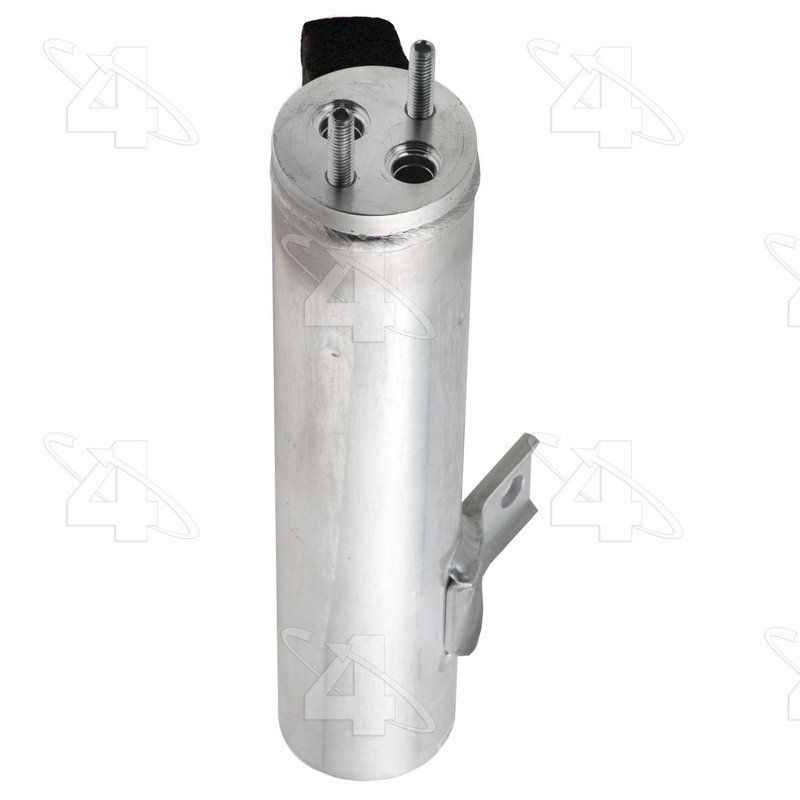

Four Seasons 83249 A/C Receiver Drier
| Brand | Four Seasons 83249 |
|---|---|
| Body Diameter | 1.750 |
| Body Length | 8.250 |
| Bracket? | w/ Bracket |
| Connector B Type | Pad Mount |
| Connector Type | Pad Mount |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Pad Mount |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | 0.500 |
| Inlet Fraction | 1/2 |
| Inlet IN | 0.500 |
| Inlet MM | 12.700 |
| Length MM | 210.000 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | Not Included |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 1/2 |
| Outlet IN | 0.500 |
| Outlet MM | 12.700 |
| Overall Depth IN | 9.000 |
| Overall Depth MM | 228.600 |
| Pad Mount | w/ Pad Mount |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port? | w/o Switch Port |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Hyundai · 5 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable HVAC service.
Aluminum construction. Lightweight body resists corrosion in demanding conditions.
Desiccant filter drier. Helps remove moisture and contaminants from the system.
Cross-references Four Seasons 83249, Global Parts Distributors LLC 1412068 and UAC RD10931C for the same application. See all 12.
Four Seasons 83249 A/C Receiver Drier
Four Seasons 83249 is an aluminum A/C receiver drier built for HVAC systems that use pad mount connections and a replaceable-style filter drier layout with desiccant media. It is a direct-fit service part for 2005-2009 Hyundai Tucson applications and meets or exceeds OEM requirements.
Key Features
- Aluminum receiver drier construction for A/C system service
- Pad mount inlet and outlet fittings with 1/2 in. connections
- Desiccant included to help manage moisture in the refrigerant circuit
- Gasket and seals included
- No service port, no switch port, and no sight glass
- Body diameter: 1.750 in.; body length: 8.250 in.
- Four Seasons 83249 cross-references UAC RD10931C for the same application
Product Details
The Four Seasons Filter Drier line is built for HVAC repair work where moisture control and refrigerant cleanliness matter. This Four Seasons 83249 receiver drier uses aluminum construction, pad mount connector design, and desiccant filtration to support proper A/C system operation in the 2005-2009 Hyundai Tucson. The unit is specified with 1/2 in. inlet and outlet fittings, included gasket/seals, and a bracket configuration noted in the product data.
Fits 2005-2009 Hyundai Tucson, N/A. Fits 2005-2009 Hyundai Tucson, N/A, when replacing the A/C receiver drier in the factory HVAC system. Four Seasons 83249 is also referenced by aftermarket part numbers used for the same Hyundai Tucson application.
What It Helps Address
- Moisture contamination in the A/C refrigerant circuit
- Reduced cooling performance caused by a saturated drier
- Debris management in the HVAC system
- Service replacement for a worn or failed receiver drier
- Leak concerns at the drier connection points when seals are replaced
Installation Notes
Verify pad mount fitment, inlet and outlet size, and overall dimensions before installation. Replace the receiver drier any time the A/C system has been opened for service, and follow the vehicle manufacturer’s evacuation, vacuum, and recharge procedures. Confirm the system is clean and free of contamination before returning it to service.
Quality Assurance
This part meets or exceeds OEM requirements and is backed by Four Seasons product engineering standards for HVAC service parts.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Hyundai | Tucson | 2.7L | V6 | N/A | Filter Drier |
| 2008 | Hyundai | Tucson | 2.7L | V6 | N/A | Filter Drier |
| 2007 | Hyundai | Tucson | 2.7L | V6 | N/A | Filter Drier |
| 2006 | Hyundai | Tucson | 2.7L | V6 | N/A | Filter Drier |
| 2005 | Hyundai | Tucson | 2.7L | V6 | N/A | Filter Drier |
| No rows match your filter. | ||||||
