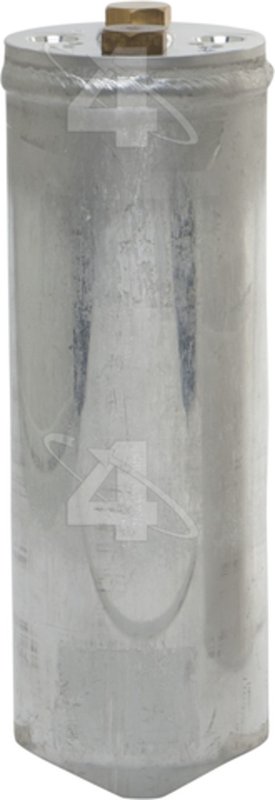

Four Seasons 83250 A/C Receiver Drier
| Brand | Four Seasons 83250 |
|---|---|
| Body Diameter | 2.375 |
| Body Length | 7.000 |
| Connector B Type | Pad Mount |
| Connector Type | Pad Mount |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 60.325 |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Pad Mount |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | .402 |
| Inlet Fitting Type | Pad Mount |
| Inlet Fraction | 3/8 |
| Length MM | 177.800 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | Not Included |
| O-Ring A Number/Desc | [24611] / Green O-Ring |
| O-Ring B Number/Desc | [24650] / Green O-Ring |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 3/8 |
| Outlet IN | .402 |
| Overall Depth IN | 7.000 |
| Overall Depth MM | 177.800 |
| Pad Mount | w/ Pad Mount |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port? | w/ Switch Port |
| Type | W/ Pad Mount |
| Type | Washer Not Included |
| Product line | Filter Drier |
| Fits | Isuzu · 8 vehicles |
OE-grade replacement. Meets or exceeds OEM requirements for dependable HVAC service.
Aluminum construction. Lightweight body resists corrosion in demanding A/C systems.
Desiccant filter drier. Helps remove moisture and contaminants from refrigerant flow.
Cross-references AMS Automotive 4026, Four Seasons 83250 and Monroe Shocks & Struts 210207 for the same application. See all 21.
Four Seasons 83250 A/C Receiver Drier
Four Seasons 83250 is an aluminum A/C receiver drier built for pad-mount HVAC systems. It uses desiccant to help manage moisture in the refrigerant circuit and includes gasket/seals with green O-rings for the inlet and outlet connections.
Compatible with select Isuzu Axiom, Trooper, and VehiCROSS applications, this Four Seasons Filter Drier line part is a direct-fit style replacement for vehicles that use a pad-mount receiver drier with switch port provisions. The Four Seasons 83250 is listed as meeting or exceeding OEM requirements.
Key Features
- Aluminum receiver drier construction
- Pad-mount inlet and outlet fittings
- Desiccant included to help control moisture in the A/C system
- Gasket/seals included
- Switch port included; no service port
- Body diameter: 2.375 in. | Body length: 7.000 in.
- 3/8 in. inlet and outlet fractions
- Meets or exceeds OEM specifications
Product Details
The Four Seasons Filter Drier line is built for HVAC service applications where moisture control and refrigerant cleanliness matter. Part number 83250 uses an aluminum body with pad-mount connector types, a non-replaceable desiccant, and a washer-not-included design. It is specified with a 60.325 mm body diameter, 177.800 mm overall depth, and .402 in. inlet and outlet fitting diameter. This part cross-references Monroe Shocks & Struts 210207 for the same application.
What It Helps Address
- Moisture buildup in the A/C refrigerant circuit
- Reduced cooling performance caused by contaminated refrigerant flow
- System service needs after receiver drier replacement
- Fitment issues on pad-mount A/C receiver drier applications
- Replacement needs for Isuzu Axiom, Trooper, and VehiCROSS HVAC systems
Installation Notes
Verify pad-mount configuration, inlet and outlet size, and switch port layout before installation. Replace the green O-rings and seals during service, and confirm the system is evacuated and recharged according to the vehicle service procedure. Fits 2002-2004 Isuzu Axiom, N/A. Fits 2001-2002 Isuzu Trooper, N/A. Fits 1999-2001 Isuzu VehiCROSS, N/A.
Quality Assurance
Four Seasons lists this receiver drier as meeting or exceeding OEM requirements. The part number is 83250, and it is part of the Four Seasons Filter Drier product line for A/C service applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Isuzu | Axiom | N/A | Filter Drier |
| 2003 | Isuzu | Axiom | N/A | Filter Drier |
| 2002 | Isuzu | Axiom | N/A | Filter Drier |
| 2002 | Isuzu | Trooper | N/A | Filter Drier |
| 2001 | Isuzu | Trooper | N/A | Filter Drier |
| 2001 | Isuzu | VehiCROSS | N/A | Filter Drier |
| 2000 | Isuzu | VehiCROSS | N/A | Filter Drier |
| 1999 | Isuzu | VehiCROSS | N/A | Filter Drier |
