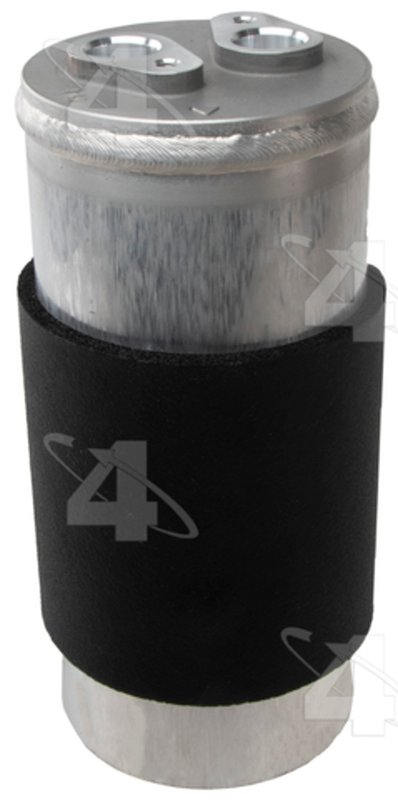

Four Seasons 83296 A/C Accumulator
| Brand | Four Seasons 83296 |
|---|---|
| Body Diameter | 3.500 |
| Body Length | 8.5 |
| Description | Accumulators |
| Dia. MM | 90.488 |
| Friction Material Attachment | w/o Service Port |
| Fuse Plug? | No |
| Inlet Fitting Diameter | 3/4 |
| Inlet Fitting Type | Pad Mount |
| Inlet IN | 0.750 |
| Inlet MM | 19.050 |
| Inlet Size | 0.720 |
| Length MM | 215.9 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | w/o Bracket |
| Mounting Hardware? | Not Included |
| O-Ring A Number/Desc | [24150] Green O-Ring |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 3/4 |
| Style | Complete Unit |
| Switch | w/o Switch Port |
| Type | Accumulator |
| Product line | Accumulator |
| Fits | Toyota · 6 vehicles |
OE direct replacement. Complete unit meets or exceeds OEM requirements.
Aluminum construction. Lightweight material helps resist corrosion.
Pad-mount fittings. Simplifies installation with a secure connection.
Cross-references ACI 83296, UAC RD11323C and 705179 for the same application. See all 5.
Four Seasons 83296 A/C Accumulator
The Four Seasons Accumulator 83296 is a complete aluminum A/C accumulator built for vehicles that use a pad-mount inlet and outlet layout. It meets or exceeds OEM requirements and is listed for 2017-2022 Toyota Prius Prime applications, making it a direct-fit choice for restoring proper HVAC performance.
Key Features
- Four Seasons Accumulator line replacement part
- Part number 83296
- Complete unit construction in aluminum
- Pad mount inlet and outlet fittings
- Body diameter: 3.500 in. / 90.488 mm
- Body length: 8.5 in. / 215.9 mm
- Inlet fitting diameter: 3/4 in.
- Outlet fitting size: 3/4 in.
- Without service port and without switch port
- Without mounting bracket
- Meets or exceeds OEM specifications
Product Details
Four Seasons 83296 is an A/C accumulator for the Four Seasons Accumulator product line, engineered as a complete unit for HVAC service work. It uses aluminum construction, pad-mount inlet and outlet fittings, and includes the correct green O-ring sealing points specified for the application. This part cross-references UAC RD11323C for the same application. For Toyota Prius Prime owners servicing the air conditioning system, 83296 provides the correct accumulator configuration for 2017-2022 Toyota Prius Prime models.
What It Helps Address
- Loss of A/C system moisture control after accumulator failure
- Refrigerant flow issues caused by a restricted or damaged accumulator
- Seal leakage at the accumulator connections
- HVAC performance problems during A/C system repair
- Replacement needs during compressor or major A/C service
Installation Notes
Verify the pad-mount fitting style, body dimensions, and port configuration before installation. Replace the accumulator when opening the A/C system for service, and evacuate and recharge the system according to factory procedures. Confirm fitment for 2017-2022 Toyota Prius Prime, and compare the original unit to Four Seasons 83296 before final assembly.
Quality Assurance
Four Seasons 83296 is built to meet or exceed OEM requirements for the listed application. The part number 83296 is also referenced by ACI 83296 and interchange numbers 705179, 8847147020, and A87028.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Toyota | Prius Prime | N/A | Accumulator |
| 2021 | Toyota | Prius Prime | N/A | Accumulator |
| 2020 | Toyota | Prius Prime | N/A | Accumulator |
| 2019 | Toyota | Prius Prime | N/A | Accumulator |
| 2018 | Toyota | Prius Prime | N/A | Accumulator |
| 2017 | Toyota | Prius Prime | N/A | Accumulator |
