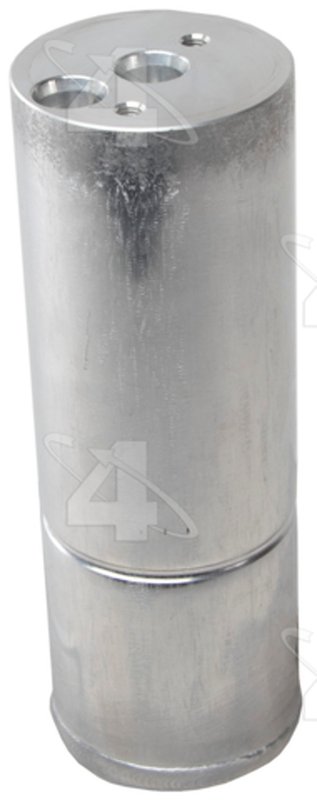

Four Seasons 83310 A/C Receiver Drier
| Brand | Four Seasons 83310 |
|---|---|
| Body Diameter | 2.36 |
| Body Length | 6.95 |
| Description | Filter Driers |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 60 |
| Gasket / Seals? | Included |
| In Line Filter Material | Desiccant |
| Inlet Dia. Fraction | 9/16 |
| Inlet Dia. MM | 13.8 |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | 0.54 |
| Inlet Fraction | 9/16 |
| Inlet IN | 0.54 |
| Inlet MM | 13.8 |
| Length MM | 176.6 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mounting Bracket Included | Not Included |
| O-Ring A Number/Desc | [24649] / Green O-Ring |
| Outlet Fitting Type | Pad Mount |
| Outlet IN | 0.54 |
| Overall Depth IN | 6.95 |
| Overall Depth MM | 176.6 |
| Service Port? | w/o Service Port |
| Sight Glass? | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port? | w/o Switch Port |
| Product line | Filter Drier |
| Fits | Audi · 6 vehicles |
OE direct replacement. Meets or exceeds OEM requirements for dependable service.
Aluminum construction. Lightweight body with integrated pad-mount fittings.
Filter drier design. Uses desiccant to help remove moisture from the system.
Cross-references Four Seasons 83310, 4S0820193 and 709185 for the same application. See all 4.
Four Seasons 83310 A/C Receiver Drier
The Four Seasons 83310 is an aluminum A/C receiver drier built for HVAC systems that use a pad-mount filter drier design. It includes desiccant and gasket/seals, and it meets or exceeds OEM requirements for service replacement on select Audi R8 applications.
Key Features
- Aluminum receiver drier with pad mount inlet and outlet fittings
- Desiccant included to help manage moisture in the A/C system
- Gasket/seals included for service installation
- Body diameter: 2.36 in. / 60 mm
- Body length: 6.95 in. / 176.6 mm
- Inlet and outlet fitting diameter: 0.54 in. / 13.8 mm
- Meets or exceeds OEM specifications
- Four Seasons 83310 direct replacement format
Product Details
Four Seasons Filter Drier line components are built for HVAC service work where moisture control and refrigerant cleanliness matter. This receiver drier uses a non-replaceable desiccant element inside an aluminum body, with pad-mount inlet and outlet connections and no service port, switch port, or sight glass. Four Seasons 83310 is listed for 2017-2018 Audi R8 and 2020-2023 Audi R8 applications, making it a focused replacement for Audi R8 A/C receiver drier service.
This part cross-references 4S0820193 and 709185 for the same application.
Common Problems This Part Helps Address
- Moisture contamination in the A/C refrigerant circuit
- Reduced cooling performance caused by a saturated drier
- Debris management issues in the receiver drier section of the HVAC system
- Leak concerns at worn pad-mount seals or gaskets
- Service replacement needs on Audi R8 A/C receiver drier applications
Installation Notes
Verify the pad-mount connection style, inlet and outlet diameter, and overall body dimensions before installation. Replace the included seals during service and confirm the system is properly evacuated and recharged after installation. This receiver drier is listed without a service port, switch port, or sight glass, so match the vehicle’s original configuration before ordering. For Audi R8 owners searching for a Four Seasons 83310 receiver drier or an Audi R8 A/C receiver drier replacement, confirm fitment by model year.
Quality Assurance
Four Seasons 83310 meets or exceeds OEM specifications and is built as a direct-fit HVAC service part for the listed Audi R8 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Audi | R8 | N/A | Filter Drier |
| 2022 | Audi | R8 | N/A | Filter Drier |
| 2021 | Audi | R8 | N/A | Filter Drier |
| 2020 | Audi | R8 | N/A | Filter Drier |
| 2018 | Audi | R8 | N/A | Filter Drier |
| 2017 | Audi | R8 | N/A | Filter Drier |
