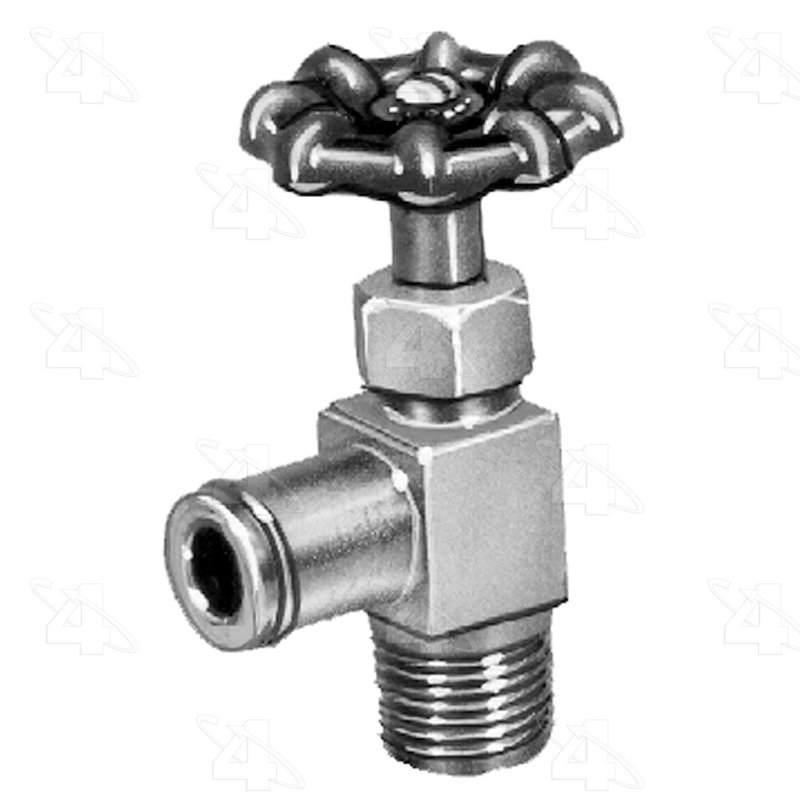

Four Seasons 84789 HVAC Heater Control Valve

Reliable HVAC Heater Control Valve for Precise Temperature Management

The Four Seasons Shut-off Valve 84789 is a durable steel HVAC heater control valve designed to regulate coolant flow in vehicle heating systems. Engineered for manual operation, this valve ensures effective temperature control and system protection in various automotive applications.

• Constructed from robust steel for long-lasting performance
• Manual shut-off valve type for precise coolant flow control
• Fitting sizes: 3/4 inch hose to 1/2 inch male pipe thread
• Compact dimensions with overall length of 3.5 inches and depth of 3 inches
• Compatible with HVAC temperature control systems requiring heater fittings

Detailed Specifications and Features

This HVAC heater control valve features a center B width of 2.5 inches (63.5 mm) and a center width of 2.25 inches (57.15 mm), making it suitable for tight engine compartments. The inlet diameter measures 13/16 inch (0.8125 inch or 20.638 mm), with an inlet length of 0.625 inch (15.875 mm) and an inlet B length of 0.5 inch (12.7 mm). The outlet length is 0.75 inch (19.05 mm), with outlet C and D lengths of 0.875 inch (22.225 mm) and 0.75 inch (19.05 mm) respectively. Thread size is 1/2 inch, matching common heater hose and pipe thread connections. The valve’s manual style allows for straightforward operation and maintenance.

About the Four Seasons Shut-off Valve Product Line

The Four Seasons Shut-off Valve line focuses on providing heavy-duty, manual shut-off valves designed for HVAC systems in automotive applications. These valves are engineered to offer reliable control over coolant flow, helping maintain optimal cabin temperature and protecting heater cores from damage. Part number 84789 is a representative component within this line, built to meet the demands of various vehicle makes and models requiring precise temperature control solutions.

Common Applications and Problem Solving

• Regulates coolant flow to prevent heater core overheating
• Stops coolant flow for heater system maintenance or repair
• Prevents coolant leaks in HVAC temperature control circuits
• Ensures consistent cabin heating performance in cold weather
• Replaces worn or faulty heater control valves in compatible vehicles

Installation Notes and Tips

When installing the Four Seasons Shut-off Valve 84789, ensure compatibility with your vehicle’s HVAC system by verifying fitting sizes and thread dimensions. The manual valve requires proper hose connections: a 3/4 inch hose to a 1/2 inch male pipe thread. Use appropriate clamps to secure hoses and prevent leaks. Inspect the valve for smooth operation before final installation. This valve is suitable for vehicles that require manual control of heater coolant flow.

Quality Assurance and Warranty

Four Seasons manufactures the Shut-off Valve 84789 with high-quality steel materials to ensure durability and resistance to corrosion. While specific warranty details are not provided, Four Seasons products typically meet industry standards for automotive HVAC components, offering reliable performance and longevity when installed correctly.
