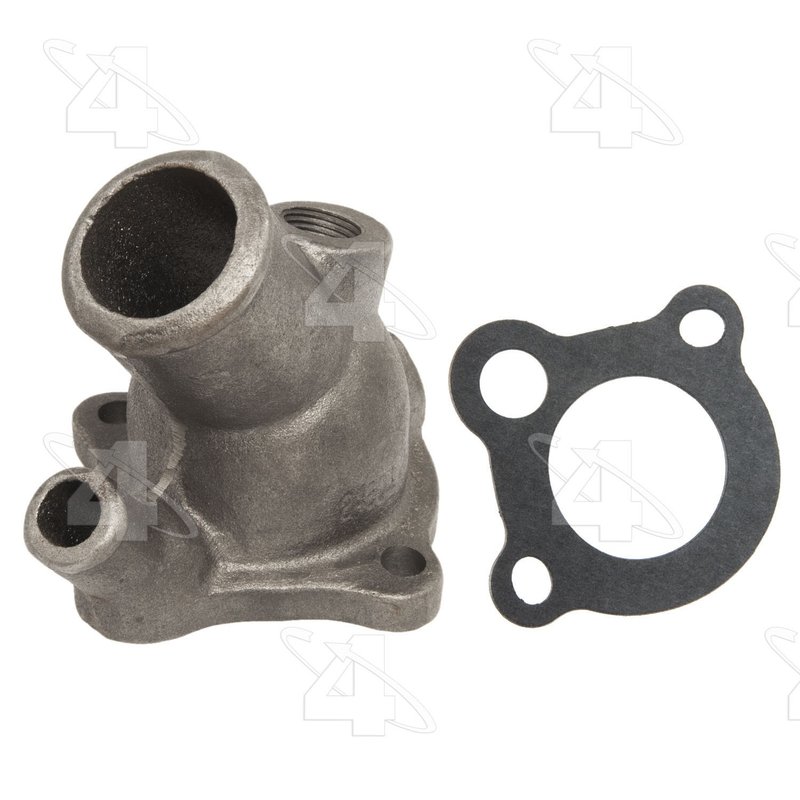

Four Seasons 84801 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Jeep Applications

Four Seasons Water Outlet 84801 is an engine coolant water outlet built for direct replacement service on select Jeep cooling systems. It is an outlet-style component without a thermostat, with a gasket or seal included for a cleaner repair on the Jeep Grand Wagoneer, J10, J20, Cherokee, Wagoneer, CJ5, and CJ7 applications listed below.

Key Features

• Engine coolant water outlet, style without thermostat
• Aluminum and cast iron construction details listed for application matching
• Gasket or seal included
• Inlet diameter: 1.184 in.
• Bolt hole center to bolt hole center: 2.875 in.
• Maximum height: 3.418 in.
• Mounting flange width: 0.395 in.
• Meets or exceeds OEM requirements

Product Details

This Four Seasons Water Outlet is designed for cooling-system service where the engine coolant outlet housing needs replacement. Part number 84801 is specified as an outlet type, with no thermostat included, and is built to meet or exceed OEM standards for fit and function. It cross-references ACI 84801 for the same application. For Jeep Grand Wagoneer, Jeep J10, Jeep J20, Jeep Cherokee, Jeep Wagoneer, Jeep CJ5, and Jeep CJ7 cooling repairs, this part supports a direct-fit replacement approach based on the listed dimensions and application data.

What It Helps Address

• Coolant leakage at the water outlet housing
• Damaged or corroded outlet surfaces
• Improper sealing at the coolant connection
• Cooling-system service on vehicles using an outlet without thermostat
• Replacement of a worn engine coolant component during repair

Installation Notes and Tips

Verify inlet diameter, bolt-hole spacing, and mounting flange width against the removed part before installation. Clean the mating surfaces thoroughly and inspect the gasket surface for corrosion or pitting. Because the thermostat is not included, transfer or replace the thermostat separately only if your application requires one. Confirm the vehicle year and model match the listed fitment before assembly.

Quality Assurance

Four Seasons lists this water outlet as meeting or exceeding OEM requirements, supporting consistent replacement quality for cooling-system repairs. Confirmed fitment includes 1984-1991 Jeep Grand Wagoneer; 1980-1988 Jeep J10; 1980-1988 Jeep J20; 1980-1983 Jeep Cherokee; 1980-1983 Jeep Wagoneer; 1980-1981 Jeep CJ5; and 1980-1981 Jeep CJ7.
