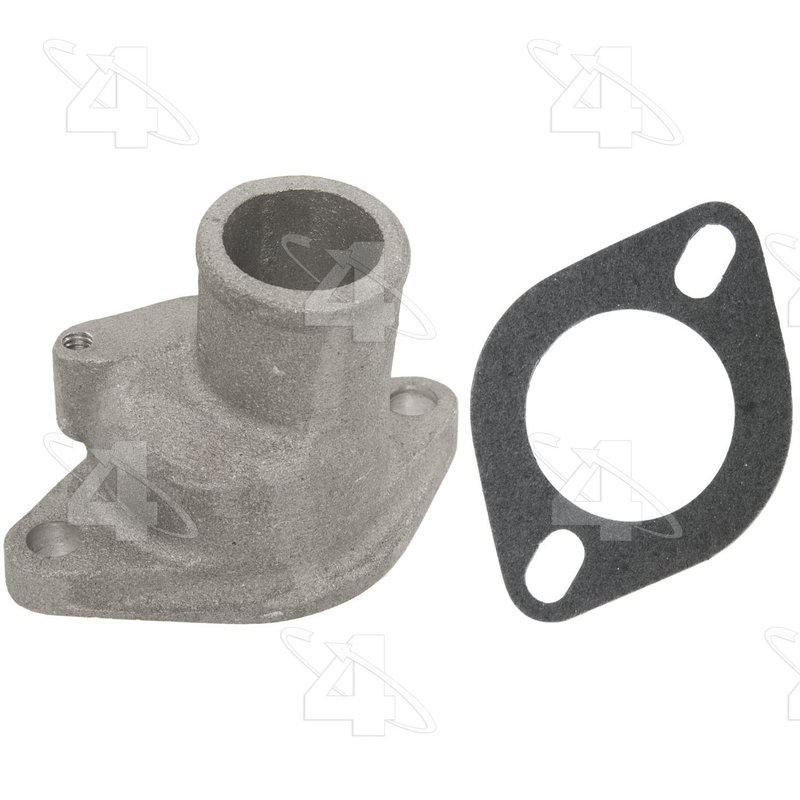

Four Seasons 84804 Engine Coolant Water Outlet

Four Seasons Water Outlet 84804 Overview

Four Seasons 84804 is an engine coolant water outlet for select Chevrolet and GMC applications. It is built with aluminum or cast iron construction, includes a gasket or seal, and is supplied in a thermostat-free style for direct replacement service on the listed vehicles.

Compatible with 1965-1978 Chevrolet and GMC models, this water outlet is specified for applications such as Chevrolet G10, G20, G30, P10, P20, and P30, along with GMC G15, G25, G35, and G1000 Series vehicles. Four Seasons 84804 is an OE-style cooling system component that meets or exceeds OEM requirements.

Key Features

• Brand: Four Seasons Water Outlet
• Part number: 84804
• Engine coolant water outlet, outlet type
• Aluminum or cast iron construction
• Gasket or seal included
• Thermostat not included
• Style: without thermostat
• Inlet diameter: 1.093 in.
• Bolt hole center to bolt hole center: 3.15 in. and 3.250 in.
• Maximum height: 2.818 in.
• Mounting flange width: 0.448 in.
• Meets or exceeds OEM specifications

Product Details

The Four Seasons Water Outlet line focuses on engine coolant components that support proper coolant routing at the thermostat housing connection point. This 84804 outlet is a direct-fit cooling system part for vehicles that use a thermostat-free outlet configuration, making it a practical replacement for worn, corroded, or leaking original housings. This part cross-references Dorman - HELP 31002 for the same application.

Use Four Seasons 84804 when servicing Chevrolet G10, G20, G30, P30, or GMC G15, G25, G35 cooling systems that require the listed outlet dimensions and mounting pattern. The part number 84804 is also referenced across multiple aftermarket catalogs for the same application.

Common Problems This Part Can Address

• Coolant leakage at the water outlet or housing flange
• Corrosion or pitting in the original coolant outlet
• Cracked or warped outlet surfaces
• Improper sealing at the gasket interface
• Replacement needs during cooling system service on Chevrolet and GMC vans, trucks, and P-series applications

Installation Notes and Tips

Confirm the vehicle’s original outlet style before installation, especially on Chevrolet P10, P20, and P30 applications and GMC van models with configuration-specific notes. Verify the inlet diameter, bolt-hole spacing, and overall height against the removed part before assembly. Clean the mating surfaces thoroughly and install with the included gasket or seal to help achieve a proper seal.

Because this outlet is supplied without a thermostat, reuse or replace the thermostat separately only if your application requires one elsewhere in the cooling system. Always refill and bleed the cooling system according to the vehicle service procedure after installation.

Quality Assurance

Four Seasons 84804 is listed as meeting or exceeding OEM requirements for the specified applications. It is engineered as an OE-style engine coolant water outlet for dependable fitment on the covered Chevrolet and GMC vehicles.
