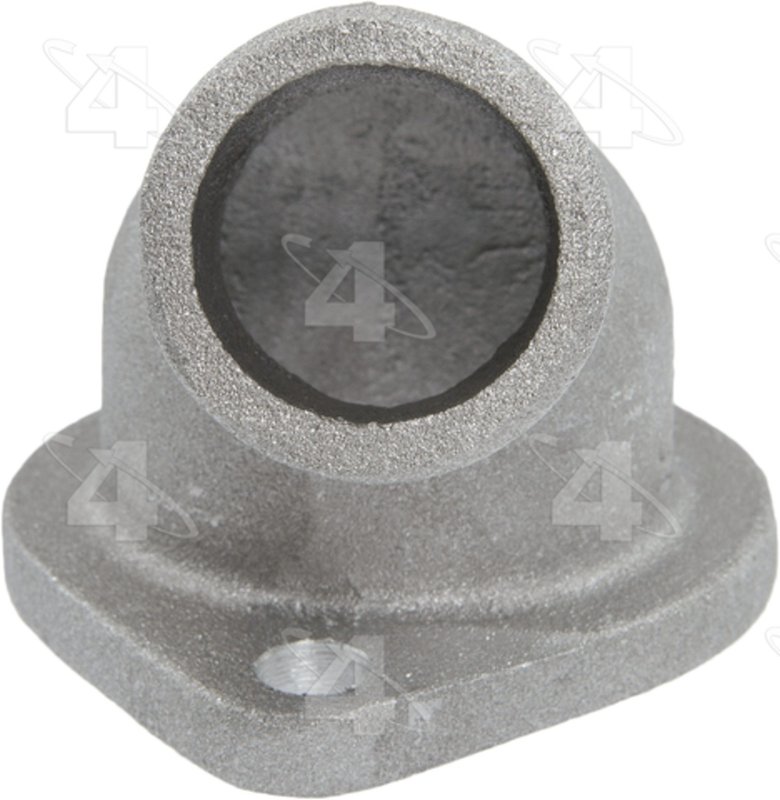

Four Seasons 84805 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Chrysler and Dodge

Four Seasons Water Outlet 84805 is an engine coolant water outlet built for select Chrysler and Dodge applications from 1957-1974. It is an OE-style replacement with aluminum and cast iron construction, a gasket or seal included, and a thermostat-free design for vehicles that use a separate thermostat housing arrangement.

Key Features

• Engine coolant water outlet for thermostat and housing applications
• Four Seasons Water Outlet line
• Part number 84805
• Aluminum and cast iron construction
• Gasket or seal included
• Thermostat not included
• Style: w/o thermostat
• Meets or exceeds OEM requirements
• Inlet diameter: 1.239 in.
• Bolt hole center to bolt hole center: 3.2 in. and 3.250 in.
• Maximum height: 2.998 in.
• Mounting flange width: 0.320 in.

Detailed Description

Four Seasons 84805 is an engine coolant water outlet for cooling system service on select Chrysler, Dodge, and Imperial vehicles. This outlet is built to meet or exceed OEM specifications and is intended for applications that use a separate thermostat, making it a direct service part for restoring coolant routing at the engine outlet. This part cross-references Anchor 9510 for the same application.

Compatible vehicle coverage includes Fits 1970-1974 Dodge Challenger, N/A; Fits 1972-1973 Dodge Charger, N/A; Fits 1968-1973 Dodge Dart, N/A; Fits 1972-1973 Dodge Monaco, N/A; Fits 1959-1966 Chrysler 300, N/A; Fits 1957-1966 Chrysler Imperial, N/A; Fits 1959-1966 Chrysler New Yorker, N/A; Fits 1959-1966 Chrysler Newport, N/A; Fits 1959-1966 Chrysler Town & Country, N/A; and additional listed Chrysler and Dodge applications through 1967-1966 model years.

Common Repair Uses

• Replacing a leaking or corroded coolant outlet
• Restoring proper coolant flow at the engine outlet
• Addressing gasket seepage at the housing interface
• Repairing a damaged mounting flange or bolt pattern
• Servicing cooling system components on Chrysler and Dodge V8 applications

Installation Notes and Tips

Verify inlet diameter, bolt-hole spacing, and overall height against the original part before installation. Clean the mating surfaces thoroughly, inspect the hose connection and flange for wear, and install with the included gasket or seal. Because the thermostat is not included, reuse or replace the thermostat separately as required by the vehicle’s cooling system layout.

Quality Assurance

Four Seasons identifies this water outlet as meeting or exceeding OEM requirements, supporting accurate fit and dependable cooling-system service for the listed Chrysler and Dodge applications.
