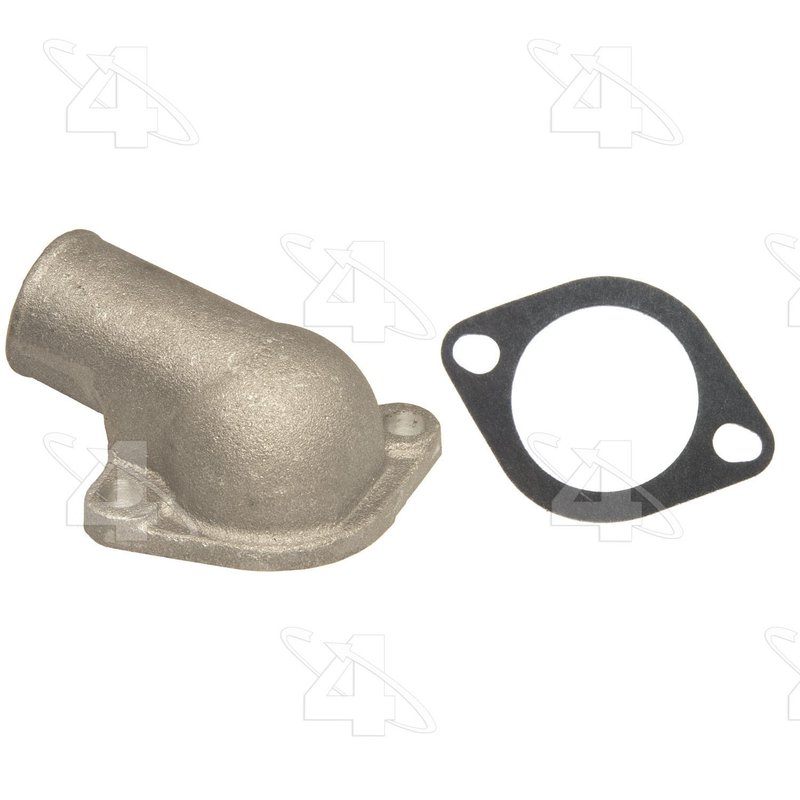

Four Seasons 84844 Engine Coolant Water Outlet

Engine Coolant Water Outlet for OE-Style Cooling Service

Four Seasons Water Outlet 84844 is an engine coolant water outlet built for direct replacement service on a wide range of classic and late-model applications. It is an outlet-style housing without a thermostat, with the gasket or seal included for a cleaner repair process.

With aluminum and cast iron construction options listed for this part, plus OEM-matching dimensions and a 90-degree outlet application on select vehicles, this water outlet is suited for restoring proper coolant routing on vehicles such as the Pontiac Firebird, Chevrolet Camaro, and Mercury Mountaineer.

Key Features

• Four Seasons Water Outlet part number 84844
• Engine coolant outlet, style without thermostat
• Gasket or seal included
• Meets or exceeds OEM requirements
• Inlet diameter: 1.190 in.
• Bolt hole center to bolt hole center: 2.9 in. and 3.000 in.
• Maximum height: 2.130 in.
• Mounting flange width: 0.380 in.
• Outlet-style coolant component for direct-fit replacement service

Product Details

Four Seasons Water Outlet 84844 is part of the Water Outlet line within the Belts and Cooling category. This engine coolant water outlet is designed to restore the coolant passage at the housing connection point and is listed as an OE-level replacement that meets or exceeds OEM specifications. The included gasket or seal supports a proper sealing surface during service, while the no-thermostat design makes it the correct choice when replacing the outlet housing only. This part cross-references Motorad (e.g., 4844KT, CH4844) for the same application.

Fits 1997-1998 Mercury Mountaineer, outlet; 90 deg.; water outlet. Fits 1982-1986 Chevrolet Camaro, water outlet. Fits 1979-1986 Pontiac Firebird, water outlet. Fits 1968-1977 Pontiac Firebird, water outlet. Fits 1985-1986 Chevrolet Astro, water outlet. Fits 1985-1986 Chevrolet S10, water outlet. Fits 1985-1986 Chevrolet S10 Blazer, water outlet. Fits 1985-1986 GMC S15, water outlet. Fits 1985-1986 GMC S15 Jimmy, water outlet. Fits 1985-1986 GMC Safari, water outlet.

Common Repair Uses

• Replacing a leaking or corroded coolant outlet housing
• Restoring proper coolant flow at the engine outlet connection
• Addressing coolant seepage at the gasket or seal surface
• Repairing a damaged outlet flange or mounting area
• Servicing vehicles with a thermostat separate from the outlet housing

Installation Notes and Tips

Verify the inlet diameter, bolt-hole spacing, and outlet orientation before installation. Clean the mating surfaces thoroughly, inspect the hose connection and adjacent cooling components, and replace any worn clamps or hoses during service. Because this part is listed without a thermostat, transfer or replace the thermostat separately only if your application requires one.

Quality Assurance

Four Seasons lists this water outlet as meeting or exceeding OEM requirements, making it a direct replacement option for cooling system repair on supported applications. Confirm vehicle year, make, model, and outlet configuration against the fitment data before ordering.
