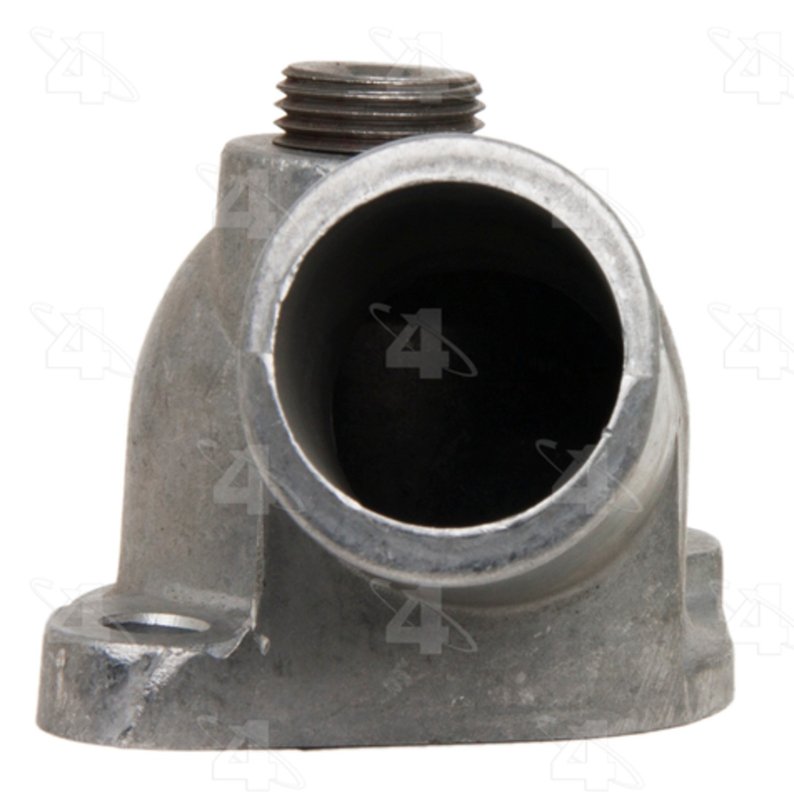

Four Seasons 84852 Engine Coolant Water Outlet

Engine Coolant Water Outlet for GM Applications

Four Seasons Water Outlet 84852 is an engine coolant water outlet built for select Chevrolet, GMC, Buick, Oldsmobile, and Pontiac applications from 1964-1979. It is an aluminum outlet with gasket or seal included, and it meets or exceeds OEM requirements for direct replacement service.

Key Features

• Aluminum construction for cooling system service
• Gasket or seal included
• Outlet style without thermostat
• Meets or exceeds OEM specifications
• Inlet diameter: 1.220 in.
• Bolt hole center to bolt hole center: 3.250 in. / 3.26 in.
• Maximum height: 2.420 in.
• Mounting flange width: 0.441 in.

Product Details

This Four Seasons Water Outlet line focuses on engine coolant components that support proper coolant routing at the thermostat housing area. Part number 84852 is a direct-fit style outlet for a wide range of classic GM vehicles, including Chevrolet Camaro, Chevrolet El Camino, Chevrolet Impala, GMC Jimmy, and Pontiac Firebird applications. This part cross-references Motorad CH4852 for the same application.

Use Four Seasons 84852 when replacing a worn, corroded, or leaking coolant outlet on vehicles such as the Chevrolet C10, Chevrolet K10, and GMC G25/G2500 Van. The aluminum design and included seal help restore a secure coolant connection at the engine outlet point.

Common Issues This Part Can Address

• Coolant leaks at the water outlet or housing connection
• Corrosion or pitting on the original outlet surface
• Damaged sealing surfaces that prevent a proper gasket seal
• Cracked or warped outlet components
• Service replacement for aging cooling system hardware

Installation Notes and Tips

Verify inlet diameter, bolt spacing, and outlet style before installation. This part is supplied without a thermostat, so reuse or replace the thermostat separately as needed. Clean the mating surfaces thoroughly before installing the included gasket or seal to help achieve a proper coolant seal.

Quality Assurance

Four Seasons 84852 is listed as meeting or exceeding OEM requirements for the specified applications. It is built for cooling system service on classic Chevrolet, GMC, Buick, Oldsmobile, and Pontiac vehicles where accurate fitment and dependable sealing are important.
