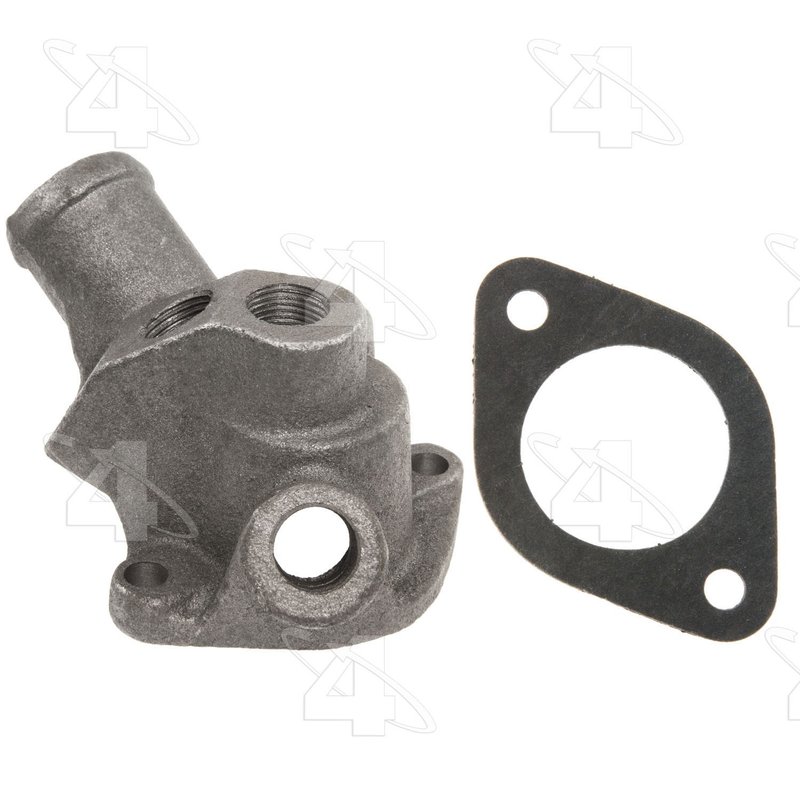

Four Seasons 84862 Engine Coolant Water Outlet - Upper

Engine Coolant Water Outlet for Ford and Mercury

Four Seasons Water Outlet 84862 is an engine coolant water outlet built for upper cooling-system service on select Ford and Mercury applications. It features an aluminum and cast iron construction, includes a gasket or seal, and meets or exceeds OEM requirements for direct replacement use.

Key Features

• Engine coolant water outlet, style without thermostat
• Material construction: aluminum and cast iron
• Gasket or seal included
• Inlet diameter: 0.920 in.
• Bolt hole center to bolt hole center: 2.83 in. and 2.875 in.
• Maximum height: 2.350 in.
• Mounting flange width: 0.350 in.
• Meets or exceeds OEM specifications

Product Details

Four Seasons 84862 is a replacement engine coolant water outlet for upper cooling-system locations where a thermostat is not part of the assembly. The Water Outlet line is focused on engine coolant components, and this part is built to match OE-style dimensions for proper sealing and fit. It is listed for 1974 Mercury Capri, upper; 1975-1979 Ford Pinto, upper; 1975-1979 Mercury Bobcat, upper; 1976-1977 Mercury Capri, upper; and 1979 Ford Mustang, upper. This part cross-references Motorad CH2065 for the same application.

Common Repair Uses

• Replacing a leaking upper coolant outlet
• Restoring a damaged or corroded coolant housing surface
• Addressing coolant seepage at the gasket or seal area
• Correcting fitment issues on an OE-style cooling system repair
• Servicing Ford Pinto, Mercury Bobcat, Mercury Capri, or Ford Mustang upper coolant connections

Installation Notes and Tips

Verify the inlet diameter, bolt-hole spacing, and mounting flange dimensions before installation. Clean the mating surfaces thoroughly and inspect the gasket surface for pitting or warpage. This water outlet is supplied without a thermostat, so confirm that the vehicle application uses a separate thermostat arrangement before assembly.

Quality Assurance

Four Seasons 84862 is manufactured to meet or exceed OEM specifications for cooling-system replacement. The part is designed for direct-fit service on the listed Ford and Mercury applications, including 1974-1979 model-year coverage shown above.
