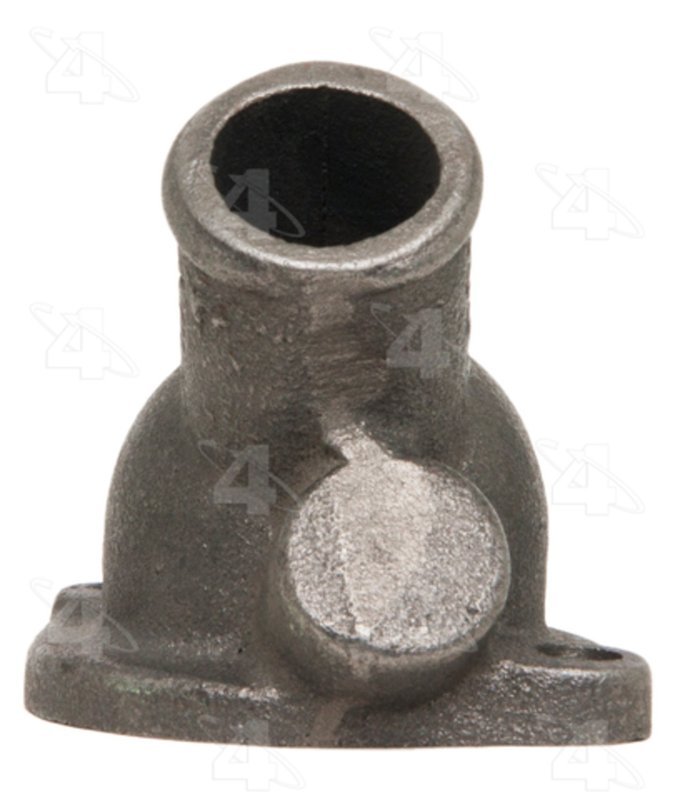

Four Seasons 84865 Engine Coolant Water Outlet

Four Seasons 84865 Water Outlet

The Four Seasons Water Outlet, part number 84865, is an engine coolant outlet built for direct-fit cooling system service. It is made from aluminum and cast iron, includes a gasket or seal, and is specified as an outlet without a thermostat. Compatible With select Ford and Mercury applications, including Ford Courier, Pinto, Fairmont, and Mercury Bobcat, Capri, and Zephyr models.

Key Features

• Engine coolant water outlet for thermostat and housing service
• Aluminum and cast iron construction
• Gasket or seal included
• Outlet style without thermostat
• Meets or exceeds OEM requirements
• Inlet diameter: 0.920 in.
• Bolt hole center to bolt hole center: 2.625 in.
• Maximum height: 2.820 in.
• Mounting flange width: 0.294 in.

Product Details

Four Seasons 84865 is an engine coolant water outlet designed for cooling system repair where the outlet housing is serviced separately from the thermostat. The part is built to OEM-level specifications and uses a gasket or seal for installation. This water outlet is listed for 1974-1977 Ford Pinto, 1975-1977 Mercury Bobcat, 1976-1977 Mercury Capri, 1977-1982 Ford Courier, 1978-1979 Ford Fairmont, and 1978-1979 Mercury Zephyr applications. This part cross-references Gates 31413 for the same application.

Common Repair Uses

• Replacing a leaking coolant outlet
• Restoring proper coolant flow at the housing connection
• Addressing corrosion or cracking in the outlet body
• Repairing thermostat housing service points on older Ford and Mercury vehicles
• Correcting coolant seepage at the gasket sealing surface

Installation Notes

Verify the inlet diameter, bolt spacing, and mounting dimensions before installation. Clean the mating surfaces thoroughly and inspect the gasket surface for pitting or debris before assembly. This outlet is supplied without a thermostat, so reuse or replace the thermostat separately if your application requires one. Fits 1974-1977 Ford Pinto, 1975-1977 Mercury Bobcat, 1976-1977 Mercury Capri, 1977-1982 Ford Courier, 1978-1979 Ford Fairmont, and 1978-1979 Mercury Zephyr, N/A.

Quality Assurance

Four Seasons 84865 is engineered to meet or exceed OEM specifications for fit and function in the listed applications. It is part of Four Seasons' Water Outlet line for engine coolant components and is built for service on classic Ford and Mercury cooling systems.
