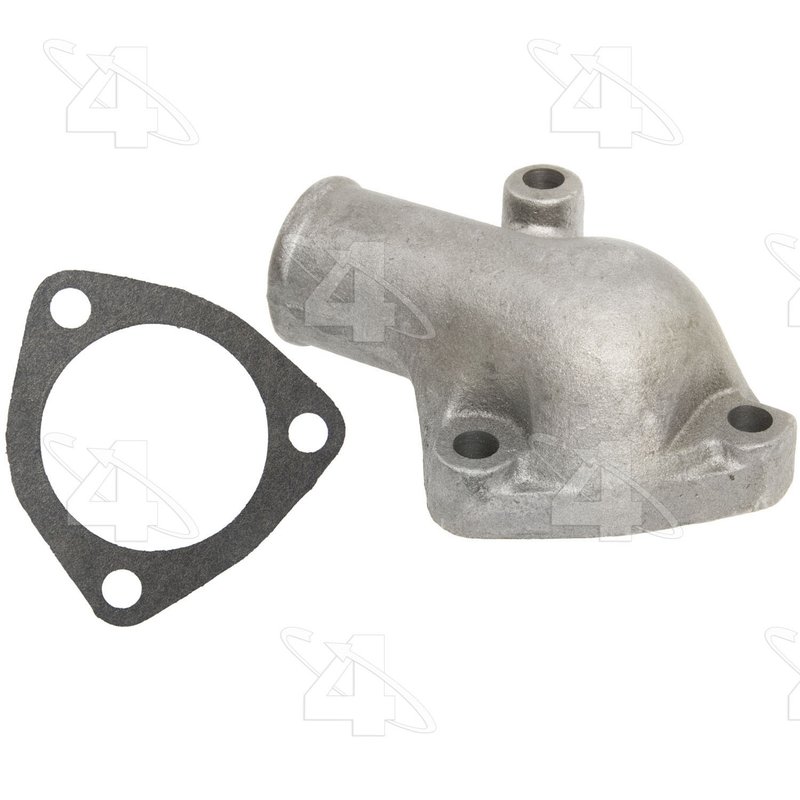

Four Seasons 84938 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Nissan Applications

Four Seasons Water Outlet 84938 is an engine coolant water outlet built for direct replacement use in select Nissan cooling systems. It is made from aluminum and cast iron, includes a gasket or seal, and is listed as meeting or exceeding OEM requirements.

Compatible With 1978-1983 Nissan 510, 200SX, 810, and Maxima applications, this Four Seasons Water Outlet 84938 is specified as an outlet without thermostat. It is a practical choice for drivers searching for a Nissan Maxima water outlet, Nissan 510 coolant outlet, or Nissan 200SX engine coolant water outlet replacement.

Key Features

• Four Seasons Water Outlet, part number 84938
• Engine coolant outlet design without thermostat
• Aluminum and cast iron construction
• Gasket or seal included
• Meets or exceeds OEM requirements
• Inlet diameter: 1.085 in.
• Bolt hole center to center dimensions: 2.15 in. and 2.469 in.
• Maximum height: 1.601 in.
• Mounting flange width: 0.564 in.

Product Details

The Four Seasons Water Outlet line focuses on engine coolant components used in thermostat and housing service. Part number 84938 is an outlet-style coolant housing component for applications that do not use an integrated thermostat at the outlet. Its material construction and included seal support a proper cooling-system connection when replacing a worn or leaking outlet on Nissan 510, Nissan 200SX, Nissan 810, and Nissan Maxima models.

This part cross-references Gates 31821 for the same application.

Common Problems This Part Can Address

• Coolant leakage at the outlet housing
• Cracked or corroded coolant outlet surfaces
• Damaged sealing area at the thermostat housing connection
• Improper coolant flow routing from a worn outlet assembly
• Service replacement for a deteriorated Nissan cooling-system outlet

Installation Notes and Tips

Verify inlet diameter, bolt-hole spacing, and mounting flange dimensions before installation. Clean the mating surfaces thoroughly, inspect the hose connection and adjacent cooling components, and replace the seal supplied with the part during assembly. Confirm that the vehicle uses an outlet without thermostat before ordering or installing Four Seasons 84938.

Quality Assurance

Four Seasons lists this water outlet as meeting or exceeding OEM requirements. The part is built for engine coolant component service in the specified Nissan applications and is intended to restore a secure, properly sealed outlet connection.
