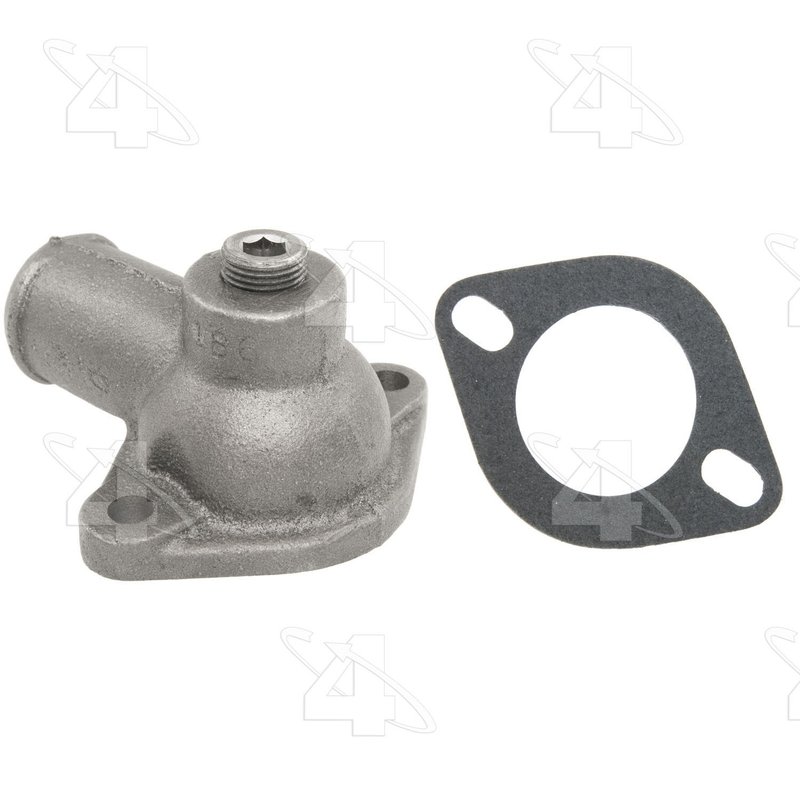

Four Seasons 84952 Engine Coolant Water Outlet

Engine Coolant Water Outlet Overview

Four Seasons 84952 is an engine coolant water outlet for select compact GM applications, including Buick Skyhawk, Cadillac Cimarron, Chevrolet Cavalier, Oldsmobile Firenza, and Pontiac Sunbird models. This Water Outlet line focuses on direct-fit cooling system service with the correct inlet diameter, mounting dimensions, and seal included.

Key Features

• Aluminum and cast iron construction for cooling system durability
• Gasket or seal included for service-ready installation
• Outlet style without thermostat
• Thermostat not included
• Inlet diameter: 1.012 in.
• Bolt hole center to bolt hole center: 2.75 in. and 2.906 in.
• Mounting flange width: 0.438 in.
• Maximum height: 1.904 in.
• Meets or exceeds OEM requirements

Product Details

Four Seasons 84952 is an engine coolant water outlet built for cooling system repair where the outlet housing needs replacement without a thermostat. The part is specified with a 1.012-inch inlet diameter, dual bolt-hole center measurements, and a compact 1.904-inch maximum height to match the original installation geometry. Four Seasons 84952 also includes the gasket or seal, helping support a proper seal at the coolant connection point. This part cross-references Gates 31523 for the same application.

Compatible With 1982-1986 Buick Skyhawk, 1982-1986 Cadillac Cimarron, 1982-1986 Chevrolet Cavalier, 1982-1986 Oldsmobile Firenza, 1986 Pontiac Sunbird, 1984-1985 Pontiac J2000 Sunbird, and 1982-1983 Pontiac J2000. The Four Seasons Water Outlet line is positioned for direct replacement service in cooling system maintenance, and part number 84952 is also referenced in interchange listings for related OE and aftermarket applications.

Common Repair Uses

• Replacing a leaking coolant outlet housing
• Restoring a damaged or corroded water outlet connection
• Correcting coolant seepage at the gasket or seal surface
• Repairing a cracked outlet on the engine coolant circuit
• Addressing overheating caused by coolant loss at the outlet

Installation Notes

Verify the inlet diameter, bolt-hole spacing, and mounting flange dimensions before installation. Clean the mating surfaces thoroughly, inspect the hose connection and adjacent coolant passages, and replace worn clamps or hoses as needed. Because this outlet is supplied without a thermostat, reuse or replace the thermostat separately if the application requires one. Confirm vehicle-specific fitment for your Buick Skyhawk, Chevrolet Cavalier, or Pontiac Sunbird before assembly.

Quality Assurance

Four Seasons states that this part meets or exceeds OEM requirements. The Water Outlet line is built for service replacement in engine coolant systems, with fitment coverage for select 1982-1986 GM compact models and related Pontiac applications.
