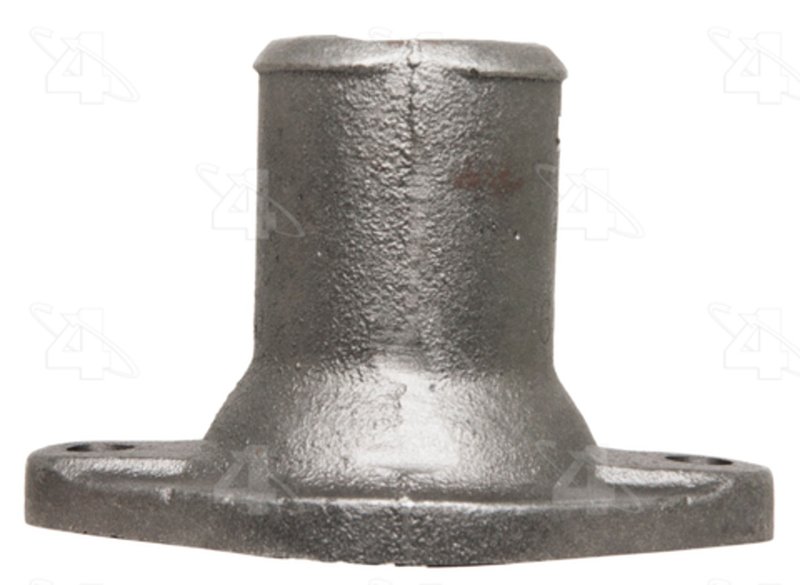

Four Seasons 84987 Engine Coolant Water Outlet

Four Seasons 84987 Water Outlet

Four Seasons 84987 is an engine coolant water outlet for select Chevrolet and GMC trucks and SUVs from 1982-1991. Built from aluminum or aluminum/cast iron construction and supplied with a gasket or seal, this outlet is designed for OE-style cooling system service where a thermostat is not included.

Key Features

• Engine coolant water outlet, style without thermostat
• Aluminum / cast iron construction for cooling system durability
• Gasket or seal included for service replacement
• Inlet diameter: 1.427 in.
• Maximum height: 2.937 in.
• Bolt hole center to bolt hole center: 3.625 in. and 3.6875 in.
• Meets or exceeds OEM requirements
• Four Seasons Water Outlet line, part number 84987

Detailed Description

The Four Seasons Water Outlet line is built for cooling system repairs that require a direct-fit outlet housing rather than a thermostat assembly. Part number 84987 is an OE-style engine coolant water outlet with a 1.427-inch inlet, a 0.482-inch mounting flange width, and included gasket or seal support for a cleaner reseal during service. Its aluminum construction, with aluminum/cast iron material specification, is suited for replacing worn or corroded coolant outlets on older Chevrolet and GMC applications.

This part cross-references Anchor 9595 for the same application. It is listed for a wide range of Chevrolet Blazer, K5 Blazer, C10, C20, C30, R10, R20, R30, V10, V20, V30, and GMC Jimmy, C1500, C2500, C3500, K1500, K2500, K3500, R1500, R2500, R3500, V1500, V2500, and V3500 models. Four Seasons 84987 is a practical replacement when servicing a leaking or damaged coolant outlet on classic GM trucks and SUVs.

What It Is Used For

• Replacing a leaking engine coolant water outlet
• Restoring coolant flow at the outlet housing connection
• Repairing corrosion or cracking in the original outlet
• Addressing coolant seepage around the gasket surface
• Servicing Chevrolet Blazer and GMC Jimmy cooling systems

Installation Notes and Tips

Confirm the outlet style, inlet diameter, and bolt-hole spacing before installation. Clean the mating surface thoroughly, inspect the hose connection for wear, and replace any damaged coolant hose clamps or adjacent seals as needed. Because the thermostat is not included, reuse or replace the thermostat separately if your application requires one. Verify fitment against the vehicle listing for your Chevrolet or GMC model before assembly.

Quality Assurance

Four Seasons 84987 is listed as meeting or exceeding OEM requirements for the specified applications. The Water Outlet line is intended for direct replacement service on supported Chevrolet and GMC vehicles, including 1982-1991 Chevrolet Blazer and GMC Jimmy applications.
