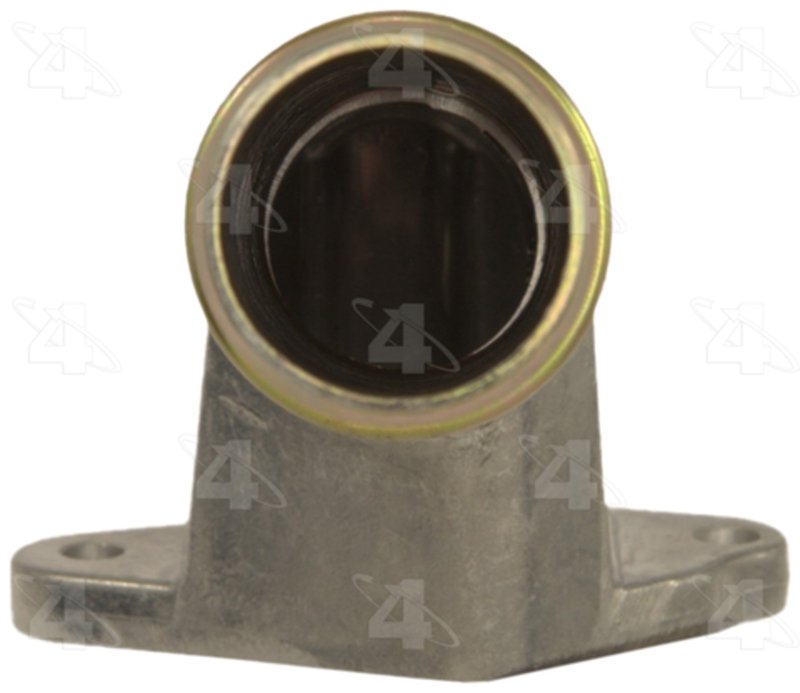

Four Seasons 85096 Engine Coolant Water Outlet

Engine Coolant Water Outlet for GM Applications

Four Seasons Water Outlet 85096 is an engine coolant water outlet built for direct replacement service on select GM trucks and SUVs. It is an aluminum outlet with aluminum/steel construction details, made to meet or exceed OEM requirements for fit and function.

Compatible With 2002-2007 Chevrolet Trailblazer, 2002-2006 Chevrolet Trailblazer EXT, 2004-2006 Chevrolet Colorado, 2002-2007 GMC Envoy, 2002-2006 GMC Envoy XL, 2004-2005 GMC Envoy XUV, 2004-2006 GMC Canyon, 2003-2007 Isuzu Ascender, 2006 Hummer H3, 2006 Isuzu i-280, 2006 Isuzu i-350, 2005 Saab 9-7x, 2002-2004 Oldsmobile Bravada, and 2004-2007 Buick Rainier applications. Four Seasons 85096 is also a fitment match for the listed vehicle coverage across the 2002-2007 model years.

Key Features

• Engine coolant water outlet, style without thermostat
• Aluminum construction with aluminum/steel material details
• Inlet diameter: 1.31 in.
• Bolt hole center to bolt hole center: 2.85 in. and 2.906 in.
• Maximum height: 2.54 in.
• Mounting flange width: 0.35 in.
• Gasket or seal not included
• Thermostat not included
• Meets or exceeds OEM specifications

Product Details

This Four Seasons Water Outlet line part is intended for engine coolant routing where a worn or leaking outlet can affect cooling system performance. The 85096 water outlet is an outlet-style component for vehicles that use a separate thermostat housing arrangement, and its dimensions support proper alignment with the factory mounting points. This part cross-references Motorad CH5096 for the same application.

Common Problems It Can Help Address

• Coolant leaks at the outlet housing
• Cracked or corroded original coolant outlet
• Improper sealing at the coolant passage connection
• Cooling system service needs on GM truck and SUV applications
• Replacement of a damaged outlet during thermostat or hose service

Installation Notes and Tips

Verify the inlet diameter, bolt spacing, and outlet style before installation. Because the gasket or seal is not included, reuse is not recommended if the sealing surface is worn; select the correct seal for the vehicle application. Inspect the mating surfaces, hoses, and nearby coolant components for corrosion or damage before reassembly.

Quality Assurance

Four Seasons 85096 is built to meet or exceed OEM requirements for the listed applications. Confirm vehicle year, make, model, and cooling system configuration before ordering to ensure proper fitment on Chevrolet Trailblazer, GMC Envoy, Buick Rainier, and related GM platforms.
