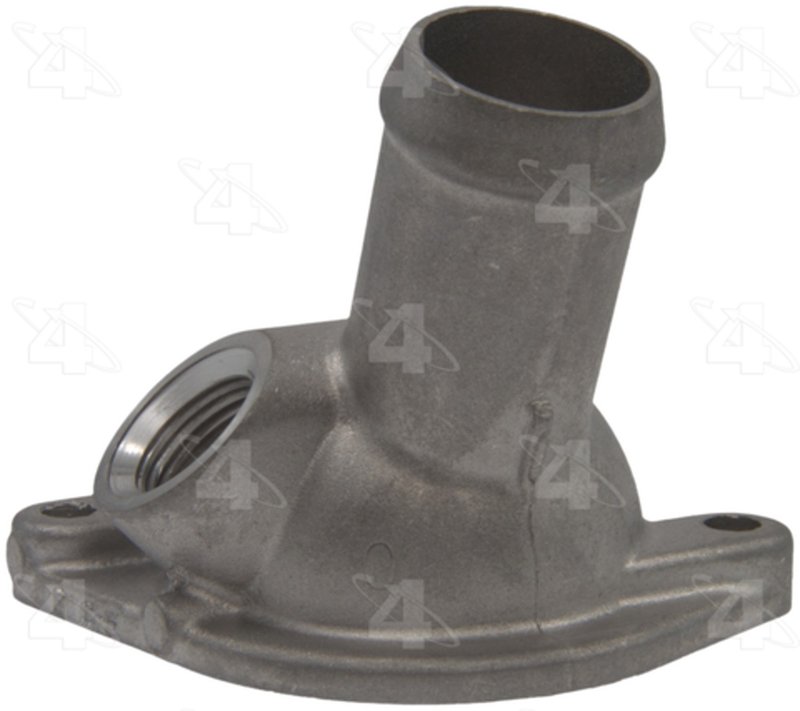

Four Seasons 85194 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Honda Civic

Four Seasons Water Outlet 85194 is an aluminum engine coolant water outlet for select Honda Civic applications. It is built to meet or exceed OEM requirements and is listed for 2001-2005 Honda Civic models with a water outlet application.

Key Features

• Aluminum construction for cooling system durability
• Engine coolant components outlet style, without thermostat
• Thermostat not included
• Gasket or seal not included
• Inlet diameter: 1.1 in.
• Maximum height: 2.75 in.
• Bolt hole center to bolt hole center: 2.98 in. / 3.000 in.
• Mounting flange width: 0.39 in.
• Meets or exceeds OEM specifications

Product Details

The Four Seasons Water Outlet line focuses on replacement coolant system components for vehicles that need a direct-fit style outlet housing. Part number 85194 is an aluminum engine coolant water outlet designed for the cooling system on 2001-2005 Honda Civic models. This Honda Civic water outlet is specified as an outlet type housing without a thermostat, making it a straightforward replacement when the original coolant outlet is worn, corroded, or leaking. Four Seasons 85194 also cross-references Motorad CH6016 for the same application.

Common Problems This Part Can Address

• Coolant leakage at the outlet housing
• Corrosion or pitting in the original aluminum housing
• Cracked or warped coolant outlet surfaces
• Improper sealing at the engine coolant connection
• Cooling system service needs on a 2001-2005 Honda Civic

Installation Notes and Tips

Verify the inlet diameter, bolt-hole spacing, and mounting flange width before installation. Because the gasket or seal is not included, transfer or replace the sealing component as required during service. Confirm thermostat requirements separately, since this outlet is supplied without a thermostat.

Quality Assurance

Four Seasons 85194 is manufactured to meet or exceed OEM specifications for fit and function in the listed application. It is intended as a replacement engine coolant water outlet for Honda Civic cooling system service.
