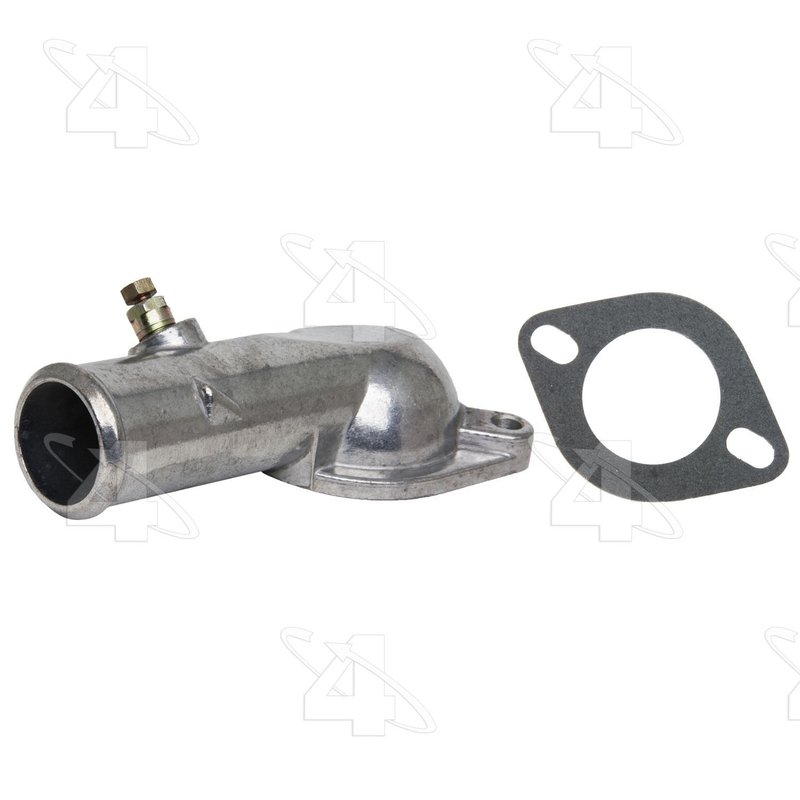

Four Seasons 85215 Engine Coolant Water Outlet

Engine Coolant Water Outlet for GM V8 Applications

Four Seasons Water Outlet 85215 is an aluminum engine coolant water outlet built for select GM applications that use a thermostat housing outlet without an included thermostat. It includes a gasket or seal and meets or exceeds OEM requirements for fit and function.

Use this Four Seasons 85215 water outlet when servicing cooling system leaks, replacing a corroded outlet, or restoring proper coolant flow at the thermostat housing on vehicles such as the Chevrolet Camaro, Pontiac Firebird, and Chevrolet Corvette.

Key Features

• Aluminum construction for cooling system durability
• Gasket or seal included for installation at the outlet
• Outlet style without thermostat
• Thermostat not included
• Meets or exceeds OEM specifications
• Inlet diameter: 1.052 in.
• Bolt hole center to bolt hole center: 3.02 in.
• Maximum height: 1.562 in.
• Mounting flange width: 0.426 in.

Detailed Description

Four Seasons 85215 is an engine coolant water outlet designed for thermostat and housing service where the outlet is replaced separately from the thermostat. The aluminum body helps provide a stable sealing surface, while the included gasket or seal supports a proper connection at the coolant passage. This part cross-references Motorad 5215KT for the same application.

Compatible With 1993-1997 Chevrolet Camaro, N/A; 1993-1997 Pontiac Firebird, N/A; 1994-1996 Buick Roadmaster, N/A; 1994-1996 Cadillac Commercial Chassis, N/A; 1994-1996 Cadillac Fleetwood, N/A; 1994-1996 Chevrolet Caprice, N/A; 1992-1996 Chevrolet Corvette, N/A; 1994-1996 Chevrolet Impala, N/A; 1994 Chevrolet Commercial Chassis, N/A.

What It Helps Address

• Coolant seepage at the water outlet or thermostat housing
• Corrosion or pitting in the original outlet
• Cracked or warped outlet sealing surfaces
• Cooling system service on GM Camaro, Firebird, and Corvette applications
• Replacement of a worn outlet during thermostat housing repair

Installation Notes and Tips

Verify inlet diameter, bolt spacing, and mounting flange dimensions before installation. Clean the mating surface thoroughly, inspect the hose connection for wear, and transfer only the components required for your application since the thermostat is not included. Confirm vehicle-specific fitment for the exact year, make, and model before assembly.

Quality Assurance

Four Seasons lists this water outlet as meeting or exceeding OEM requirements. The aluminum construction and included seal support a direct replacement approach for cooling system repair on the listed applications.
