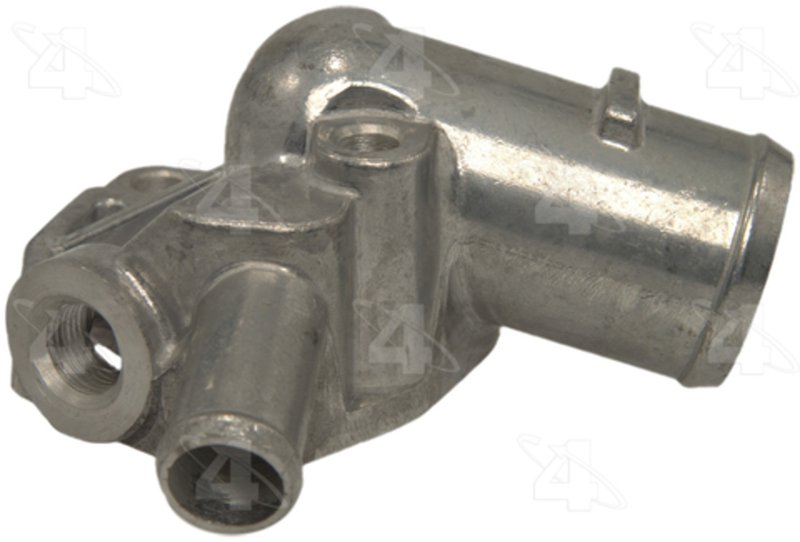

Four Seasons 85225 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Jeep Applications

Four Seasons 85225 is an aluminum engine coolant water outlet built for select Jeep Cherokee, Comanche, and Wrangler applications from 1988-1990. It includes the gasket or seal and is listed as meeting or exceeding OEM requirements for direct replacement service.

Key Features

• Aluminum construction for coolant system durability
• Gasket or seal included for service-ready installation
• Outlet style, w/o thermostat
• Inlet diameter: 1.139 in.
• Bolt hole center to bolt hole center: 2.51 in.
• Maximum height: 2.087 in.
• Mount flange width: 0.275 in.
• Meets or exceeds OEM specifications

Product Details

This Four Seasons Water Outlet, part number 85225, is an engine coolant component used to route coolant through the cooling system at the outlet connection. The aluminum housing is designed for direct-fit replacement on 1988-1990 Jeep Cherokee, 1988-1990 Jeep Comanche, and 1988-1990 Jeep Wrangler applications. This part cross-references Motorad CH4016 for the same application.

What It Helps Address

• Coolant leaks at the outlet housing
• Cracked or corroded factory water outlet
• Improper sealing at the coolant connection
• Cooling system service on Jeep Cherokee, Comanche, or Wrangler models
• Replacement of a worn outlet housing during thermostat service when the thermostat is not being replaced

Installation Notes and Tips

Verify the inlet diameter, bolt spacing, and outlet style against the original part before installation. Clean the mating surfaces thoroughly and inspect the cooling system for corrosion or residue that could affect sealing. Because this unit is supplied without a thermostat, reuse or replace the thermostat separately if your repair requires it.

Quality Assurance

Four Seasons identifies this water outlet as meeting or exceeding OEM specifications, supporting direct replacement use in the listed Jeep applications. Part number 85225 is also referenced under multiple OE and aftermarket numbers for application matching.
