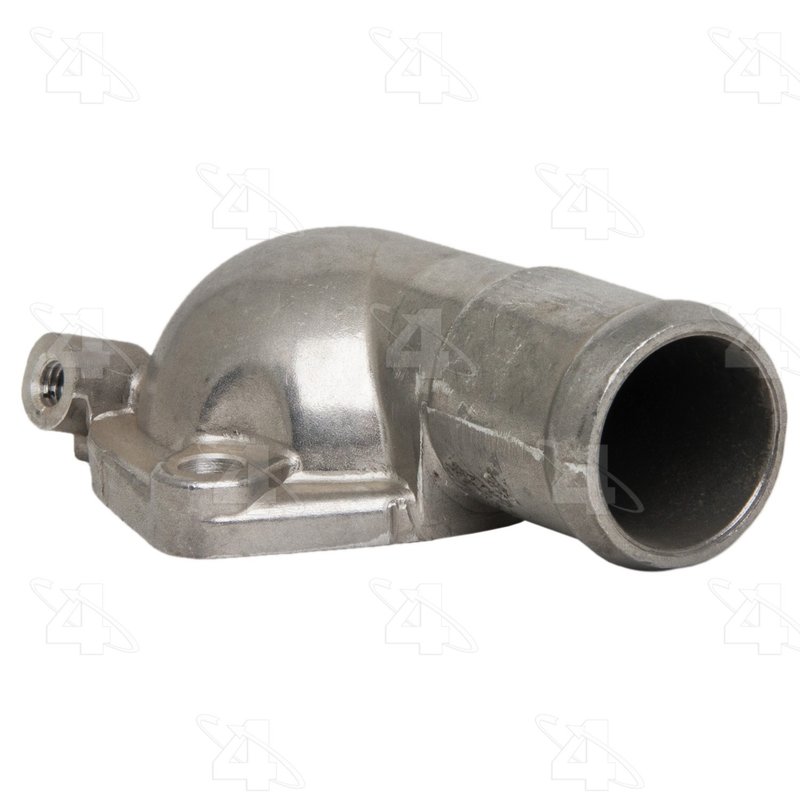

Four Seasons 85228 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Nissan Applications

The Four Seasons Water Outlet 85228 is an aluminum engine coolant outlet for select Nissan vehicles. It is built as an outlet without a thermostat and meets or exceeds OEM requirements for direct-fit cooling system service.

Compatible with 1990-1994 Nissan applications, including Sentra, NX, and Pulsar NX, this Four Seasons Water Outlet 85228 supports coolant routing at the engine outlet connection. The Four Seasons Water Outlet line focuses on replacement cooling components for service work where the original outlet has corroded, cracked, or begun leaking.

Key Features

• Aluminum construction for cooling system durability
• Outlet style without thermostat
• Thermostat not included
• Gasket or seal not included
• Inlet diameter: 0.882 in.
• Bolt hole center to bolt hole center: 2.03 in. / 2.031 in.
• Maximum height: 1.241 in.
• Mounting flange width: 0.375 in.
• Meets or exceeds OEM specifications

Detailed Description

Four Seasons 85228 is an engine coolant water outlet designed for vehicles that use a separate thermostat housing arrangement. The aluminum body helps provide a stable replacement for the original coolant outlet, while the OE-level dimensional specs support proper alignment at the mounting points and hose connection. This part cross-references Motorad CH6021 for the same application.

Fits 1991-1994 Nissan Sentra, N/A. Fits 1991-1993 Nissan NX, N/A. Fits 1990 Nissan Pulsar NX, N/A. Use this part number 85228 when replacing a worn or leaking coolant outlet on these Nissan models.

Common Problems It Can Solve

• Coolant leakage at the outlet housing
• Corrosion or pitting in the original aluminum or metal outlet
• Cracked or warped coolant outlet surfaces
• Improper sealing at the hose or mounting interface
• Cooling system service needs after thermostat housing removal

Installation Notes and Tips

Confirm hose diameter, bolt spacing, and outlet height before installation. Because the gasket or seal is not included, transfer or replace the sealing component as required during service. Inspect the mating surface, clean corrosion from the engine side, and verify that the coolant system is properly refilled and bled after installation.

Quality Assurance

Four Seasons 85228 is manufactured to meet or exceed OEM requirements for the listed Nissan fitments. Verify application by year, make, and model before ordering to ensure correct cooling system service.
