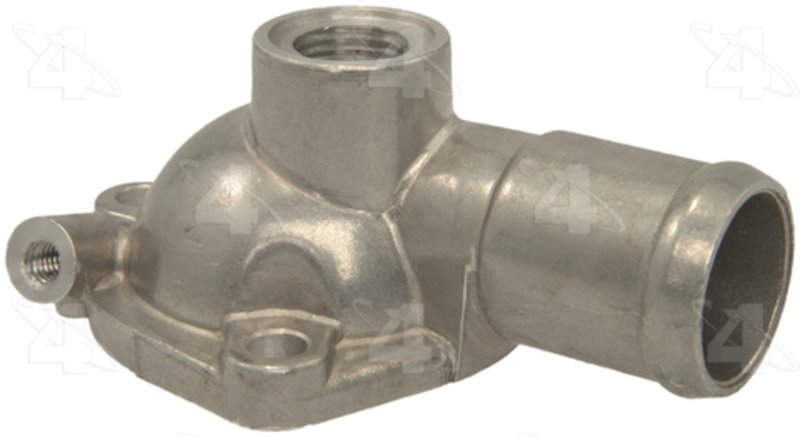

Four Seasons 85230 Engine Coolant Water Outlet
| Brand | Four Seasons 85230 |
|---|---|
| Bolt Hole Center To Bolt Hole Center | 2.03 |
| Bolt Hole Center To Bolt Hole Center | 2.031 |
| Description | Engine Coolant Components |
| Gasket Or Seal Included | Not Included |
| Inlet Dia. IN | 0.861 |
| Material | Aluminum |
| Maximum Height | 1.552 |
| Meets / Exceeds OEM? | Yes |
| Mnt Flange Width IN | 0.363 |
| Style | w/o Thermostat |
| Thermostat Included? | Not Included |
| Type | Outlet |
| Product line | Water Outlet |
| Fits | Nissan · 11 vehicles |
OE direct replacement. Meets OEM requirements for a dependable coolant outlet fit.
Aluminum construction. Lightweight material helps resist corrosion in cooling system service.
Thermostat not included. Use with your existing thermostat for a straightforward replacement.
Cross-references Dorman - Conduct-Tite 85230, Motorad CH6026 and 248376 for the same application. See all 20.
Engine Coolant Water Outlet for Nissan Applications
Four Seasons Water Outlet 85230 is an aluminum engine coolant water outlet for select Nissan cooling system applications. It is built as an outlet without a thermostat and meets or exceeds OEM requirements for direct-fit replacement use.
Key Features
- Aluminum construction for cooling system durability
- Engine coolant water outlet, style without thermostat
- Gasket or seal not included
- Thermostat not included
- Inlet diameter: 0.861 in.
- Bolt hole center to bolt hole center: 2.03 in. / 2.031 in.
- Maximum height: 1.552 in.
- Mounting flange width: 0.363 in.
- Meets or exceeds OEM specifications
Product Details
The Four Seasons Water Outlet line focuses on engine coolant components for service and replacement applications. Part number 85230 is an aluminum outlet designed for cooling system service where the thermostat is not part of the housing assembly. Its dimensions and OEM-level specification support accurate replacement on select Nissan Sentra, Nissan NX, and Nissan Pulsar NX applications. This part cross-references Motorad CH6026 for the same application.
Vehicle Fitment
- Fits 1989-1994 Nissan Sentra, N/A
- Fits 1991-1993 Nissan NX, N/A
- Fits 1990 Nissan Pulsar NX, N/A; Outlet; w/ Sensor Port
- Fits 1989 Nissan Pulsar NX, N/A
Common Repair Uses
- Replacing a leaking or corroded coolant outlet
- Restoring proper coolant flow at the housing connection
- Repairing damaged bolt holes or sealing surfaces
- Addressing coolant seepage around the outlet area
- Servicing a worn engine coolant component on Nissan cooling systems
Installation Notes
Verify inlet diameter, bolt spacing, and mounting flange dimensions before installation. Because the gasket or seal is not included, reuse is not assumed and the sealing surface should be inspected carefully. Confirm thermostat requirements separately, since this outlet is supplied without a thermostat. On 1990 Nissan Pulsar NX applications, note the sensor port reference in the fitment data.
Quality Assurance
Four Seasons part 85230 is specified to meet or exceed OEM requirements for the listed applications. The aluminum construction and application-specific dimensions support consistent fitment on 1989-1994 Nissan Sentra, 1991-1993 Nissan NX, and 1989-1990 Nissan Pulsar NX cooling system repairs.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1994 | Nissan | Sentra | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1993 | Nissan | NX | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1993 | Nissan | Sentra | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1992 | Nissan | NX | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1992 | Nissan | Sentra | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1991 | Nissan | NX | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1991 | Nissan | Sentra | Automatic | 1.6L | L4 | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1990 | Nissan | Pulsar NX | — | — | — | N/A | Outlet; w/ Sensor Port; Water Outlet |
| 1990 | Nissan | Sentra | — | — | — | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1989 | Nissan | Pulsar NX | — | — | — | N/A | Compatible with various car and truck makes/models.; Water Outlet |
| 1989 | Nissan | Sentra | — | — | — | N/A | Compatible with various car and truck makes/models.; Water Outlet |
