Four Seasons 85244 Engine Coolant Water Outlet

Engine Coolant Water Outlet for GM V8 Applications

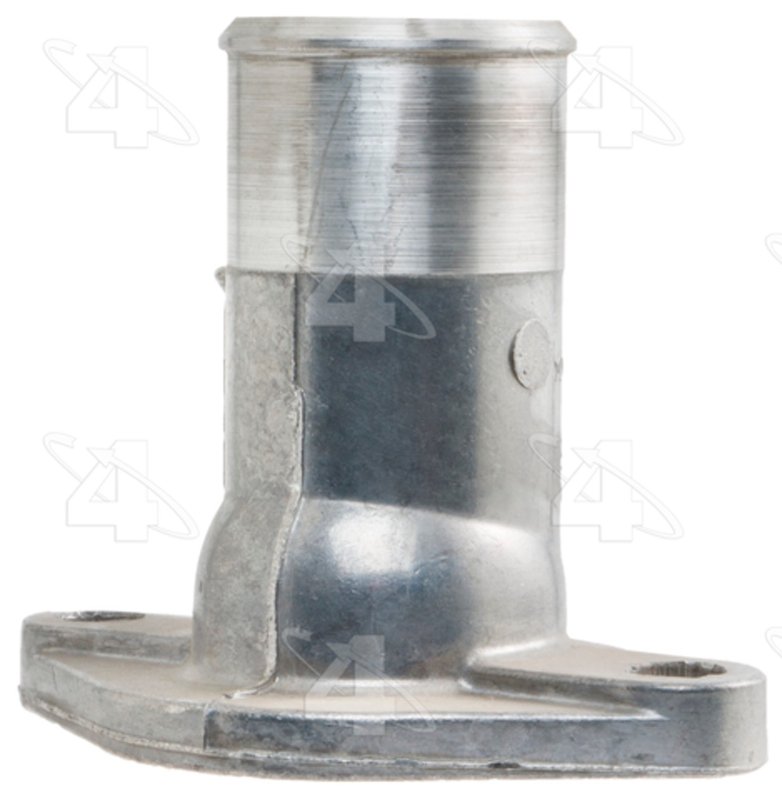

Four Seasons Water Outlet 85244 is an aluminum engine coolant water outlet for select GM trucks and vans from 1991-1996. It is built as an outlet without a thermostat and includes the gasket or seal for service-ready replacement on covered applications.

Use this Four Seasons 85244 water outlet when servicing cooling system leaks or replacing a worn coolant outlet on Chevrolet C1500, C2500, K2500, P30, and GMC C2500, K3500, and related models listed below.

Key Features

• Aluminum construction for cooling system durability
• Outlet style, without thermostat
• Gasket or seal included
• Meets or exceeds OEM requirements
• Inlet diameter: 1.261 in.
• Bolt hole center to bolt hole center: 3.19 in. and 3.219 in.
• Maximum height: 3.378 in.
• Mounting flange width: 0.452 in.

Product Details

Four Seasons Water Outlet 85244 is an engine coolant component designed for direct replacement on select Chevrolet and GMC platforms. The aluminum housing helps restore a secure coolant passage at the engine outlet, while the included seal supports a proper mating surface during installation. This part is specified as an outlet only, with no thermostat included, making it a straightforward choice when the thermostat is serviced separately or not part of the repair.

This part cross-references Motorad CH3006 for the same application.

What It Helps Fix

• Coolant seepage at the engine water outlet
• Cracked or corroded outlet housing
• Improper sealing at the coolant outlet flange
• Cooling system service on aging GM truck and van engines
• Replacement of a worn outlet during thermostat-related repairs

Installation Notes

• Verify the inlet diameter and bolt-hole spacing before installation.
• Clean the mounting surface thoroughly to help the included seal seat correctly.
• Transfer or replace any related components required by the vehicle service procedure.
• Confirm the thermostat arrangement, since this outlet is supplied without a thermostat.

Quality Assurance

Four Seasons 85244 is listed as meeting or exceeding OEM specifications for the covered applications. It is engineered for direct-fit service on select Chevrolet and GMC vehicles, including 1991-1993 Chevrolet C1500, 1991-1995 Chevrolet C2500, 1992-1995 Chevrolet C2500 Suburban, 1991-1995 Chevrolet C3500, 1991-1995 Chevrolet G30, 1991-1995 Chevrolet K2500, 1992-1995 Chevrolet K2500 Suburban, 1991-1995 Chevrolet K3500, 1991-1995 Chevrolet P30, 1991-1995 GMC C2500, 1992-1995 GMC C2500 Suburban, 1991-1995 GMC C3500, 1991-1995 GMC G3500, 1991-1995 GMC K2500, 1992-1995 GMC K2500 Suburban, 1991-1995 GMC K3500, 1991-1996 GMC P3500, 1991 Chevrolet R2500 Suburban, 1991 Chevrolet R3500, 1991 Chevrolet V3500, 1991 GMC R2500 Suburban, 1991 GMC R3500, and 1991 GMC V3500.
