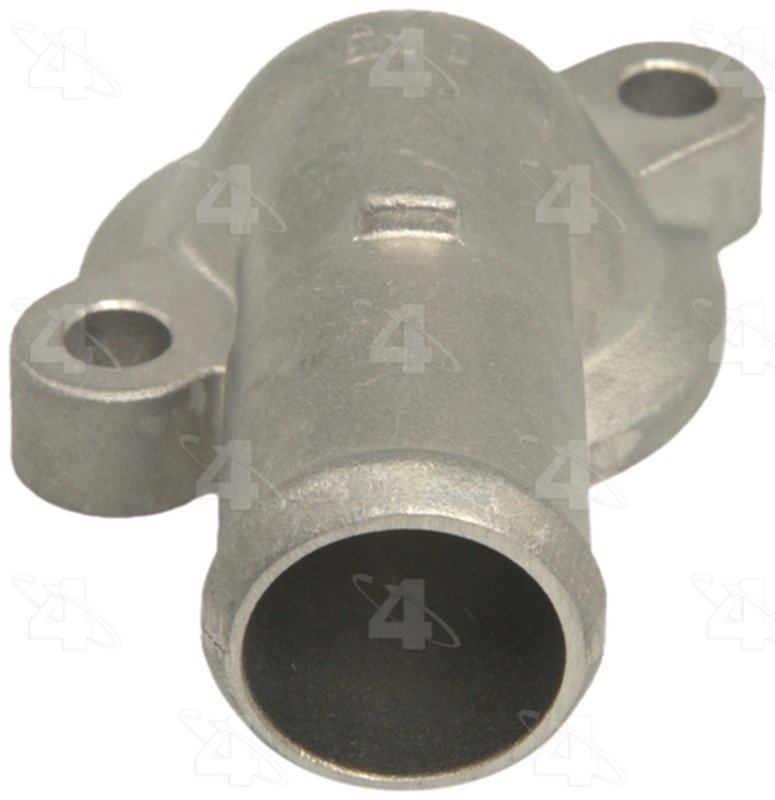

Four Seasons 85306 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Suzuki Swift

Four Seasons 85306 is an engine coolant water outlet built for cooling-system service on select vehicles, including 1989-1994 Suzuki Swift applications. This aluminum outlet is supplied as an outlet only, without a thermostat and without a gasket or seal, and it meets or exceeds OEM requirements for fit and function.

Key Features

• Engine coolant water outlet for thermostat and housing service
• Aluminum construction for durable cooling-system use
• Outlet style without thermostat
• Gasket or seal not included
• Meets or exceeds OEM specifications
• Inlet diameter: 0.887 in.
• Maximum height: 1.209 in.
• Mounting flange width: 0.466 in.
• Bolt hole center to bolt hole center: 2.31 in. and 2.375 in.

Product Details

Four Seasons Water Outlet 85306 is a direct-fit cooling component for vehicles that use an aluminum coolant outlet in the thermostat and housing assembly. It is listed for 1989-1994 Suzuki Swift and is also referenced under common cross numbers such as Valeo 815532 for the same application. The Four Seasons 85306 water outlet is built to OE-level dimensions and is intended for replacement of a worn, corroded, or leaking coolant outlet in the engine cooling circuit.

What This Part Helps Address

• Coolant leaks at the water outlet or housing connection
• Corrosion or pitting in the original aluminum outlet
• Cracked or warped outlet surfaces affecting seal integrity
• Improper coolant flow caused by a damaged outlet assembly
• Service needs on 1989-1994 Suzuki Swift cooling systems

Installation Notes and Tips

Verify the inlet diameter, bolt-hole spacing, and mounting flange dimensions before installation. Because the gasket or seal is not included, reuse is not recommended if the sealing surface is worn; install the correct new seal or gasket for the application. This part is supplied without a thermostat, so transfer or replace the thermostat separately if your repair requires it. Clean the mating surfaces thoroughly and refill the cooling system with the correct coolant after installation.

Quality Assurance

Four Seasons 85306 is manufactured to meet or exceed OEM specifications for the listed application. Four Seasons Water Outlet parts are built for accurate fitment in cooling-system repairs, including 1989-1994 Suzuki Swift service work.
