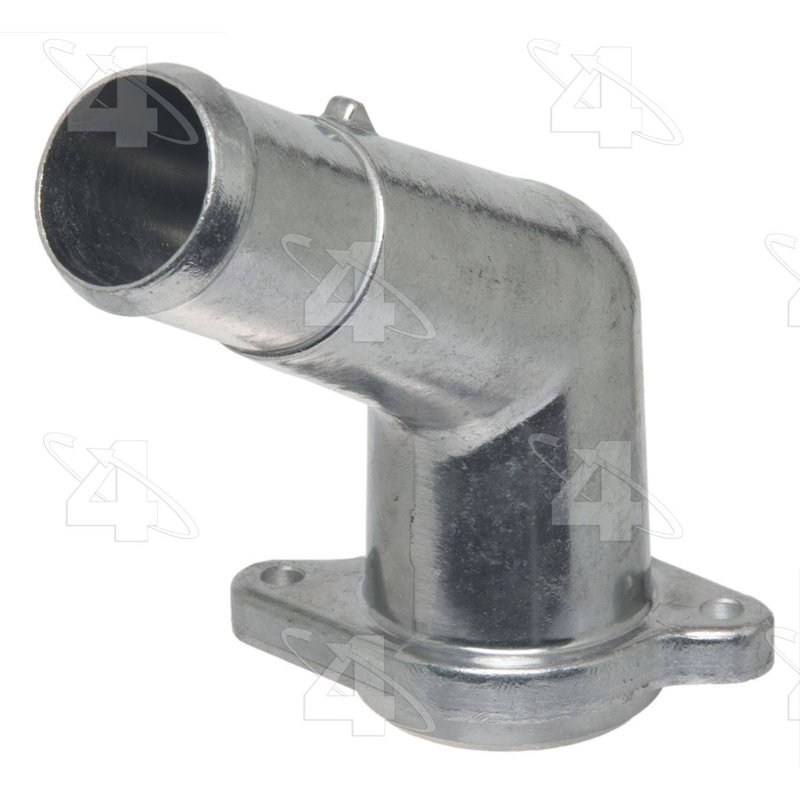

Four Seasons 86011 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Ford Applications

Four Seasons Water Outlet 86011 is an aluminum engine coolant outlet built for select Ford cooling system applications. It is an OE-style replacement that meets or exceeds OEM requirements and is supplied without a thermostat or gasket/seal.

Key Features

• Aluminum construction for cooling system durability
• Engine coolant outlet design, w/o thermostat
• Gasket or seal not included
• Thermostat not included
• Meets or exceeds OEM specifications
• Inlet diameter: 1.276 in.
• Maximum height: 5.500 in.
• Bolt hole center to bolt hole center: 3.02 in.
• Mounting flange width: 0.398 in.

Detailed Description

Four Seasons 86011 is a Water Outlet designed for engine coolant routing in Ford cooling system service. The aluminum housing supports reliable coolant flow at the outlet connection and is built to OE-level dimensional standards for proper fitment. This part number 86011 is listed for applications including 2010-2020 Ford F-350 Super Duty, 2011-2020 Ford F-250 Super Duty, 2017-2019 Ford E-350 Super Duty, 2011-2016 Ford F-350, and 2010-2014 Ford F-150, with additional 2021-2022 Ford Super Duty coverage.

Four Seasons Water Outlet 86011 is a direct-fit style engine coolant component for service work where the outlet housing needs replacement. This part cross-references Ford AL3Z8592A for the same application.

What It Helps Address

• Coolant leakage at the outlet housing
• Cracked or corroded original coolant outlet
• Improper sealing at the thermostat housing area when the outlet is serviced separately
• Restricted coolant flow caused by a damaged outlet passage
• Cooling system service on Ford F-250 Super Duty, F-350 Super Duty, F-150, and E-350 Super Duty models

Installation Notes and Tips

Verify the inlet diameter, bolt spacing, and mounting flange dimensions before installation. Because the gasket or seal is not included, reuse is not recommended if the sealing surface is worn or damaged; install the correct new seal for the application. Confirm whether the vehicle uses a separate thermostat, since this outlet is supplied without one.

Quality Assurance

Four Seasons 86011 is manufactured to meet or exceed OEM specifications for dimensional accuracy and service replacement use. The aluminum construction and OE-style design support consistent fitment in approved Ford cooling system applications.
