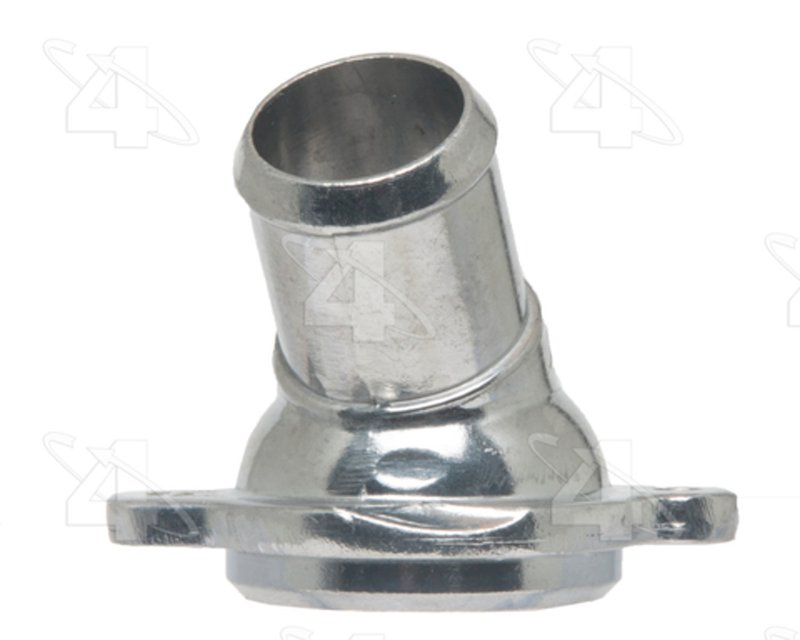

Four Seasons 86016 Engine Coolant Water Outlet - Upper

Engine Coolant Water Outlet for Ford Applications

Four Seasons 86016 is an aluminum engine coolant water outlet built for direct replacement service on select Ford trucks and vans, including Transit, Transit-150, Transit-250, Transit-350, Transit-350 HD, Explorer, Expedition, Navigator, and F-150 applications. It meets or exceeds OEM requirements and is supplied as an outlet only, with no thermostat or gasket/seal included.

Key Features

• Aluminum construction for cooling-system durability
• Engine coolant water outlet, style without thermostat
• Inlet diameter: 1.194 in.
• Bolt hole center to bolt hole center: 3.04 in.
• Maximum height: 3.320 in.
• Mounting flange width: 0.294 in.
• Meets or exceeds OEM specifications
• Gasket or seal not included
• Thermostat not included

Product Details

This Four Seasons Water Outlet line part is engineered for cooling-system service where the original outlet has cracked, warped, or begun leaking. Part number 86016 is a direct-fit style outlet for Ford Transit and Ford F-150 cooling system repairs, and it also applies to select Ford Explorer, Expedition, and Lincoln Navigator upper outlet locations. This part cross-references Focus Auto Parts 86016 for the same application.

Common Problems It Can Address

• Coolant seepage at the outlet housing
• Cracked or corroded aluminum outlet surfaces
• Improper sealing at the coolant connection point
• Overheating caused by a leaking cooling-system outlet
• Service replacement after thermostat housing wear on supported applications

Installation Notes and Tips

• Verify the vehicle year, make, model, and outlet position before ordering.
• Inspect the mating surface, hose connection, and fastener holes for damage before installation.
• Replace the gasket or seal as required, since it is not included with this part.
• Confirm thermostat requirements separately, because this outlet is supplied without a thermostat.
• Use the listed inlet diameter and bolt-hole spacing to compare against the original component.

Quality Assurance

Four Seasons 86016 is manufactured to meet or exceed OEM specifications for the listed applications. It is a replacement engine coolant water outlet for cooling-system repair on Ford Transit, Ford F-150, and related fitments.
