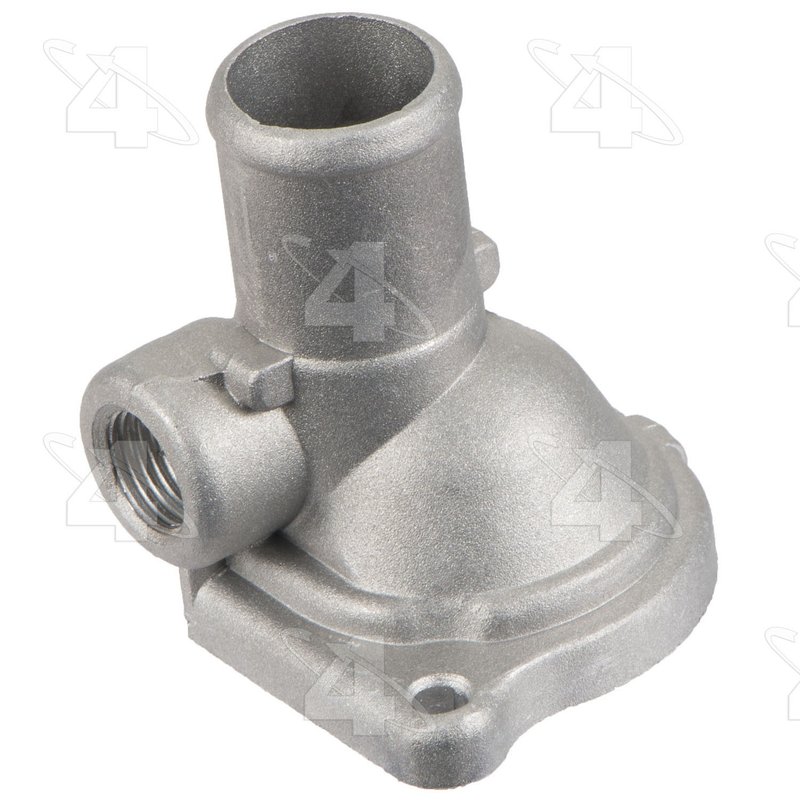

Four Seasons 86155 Engine Coolant Water Outlet

Four Seasons Water Outlet 86155

Four Seasons Water Outlet 86155 is an aluminum engine coolant water outlet for thermostat and housing service. It is built to meet or exceed OEM requirements and is listed without a thermostat or gasket/seal included.

Key Features

• Aluminum construction for engine coolant system service
• Outlet style, w/o thermostat
• Gasket or seal not included
• Thermostat not included
• Inlet diameter: 1.093 in.
• Bolt hole center to bolt hole center: 2.58 in.
• Maximum height: 2.75 in.
• Mounting flange width: 0.334 in.
• Meets or exceeds OEM specifications

Product Details

This Four Seasons Water Outlet 86155 is an engine coolant component designed for thermostat and housing applications where the outlet housing needs replacement. The aluminum body supports coolant routing at the engine, and the OE-style dimensions help maintain proper fit at the mounting points and inlet connection. This part cross-references Motorad CH5220 for the same application.

Compatible With Toyota Tercel and Toyota Paseo applications, this water outlet is listed for 1987-1999 Toyota Tercel and 1992-1998 Toyota Paseo. Use Four Seasons 86155 when replacing a worn or leaking coolant outlet on these Toyota models.

Common Repair Issues

• Coolant leaks at the outlet housing
• Cracked or corroded aluminum coolant outlet
• Improper sealing at the thermostat housing area
• Damaged inlet connection or mounting flange
• Cooling system service after overheating-related repairs

Installation Notes

Verify the inlet diameter, bolt hole spacing, and mounting flange dimensions before installation. This part is supplied without a thermostat and without a gasket or seal, so those components must be matched separately as needed for the repair. Confirm vehicle application by year and model before ordering.

Quality Assurance

Four Seasons 86155 is manufactured to meet or exceed OEM requirements for engine coolant system service. The part number 86155 is used across replacement catalogs for the same application, including Focus Auto Parts 86155.
