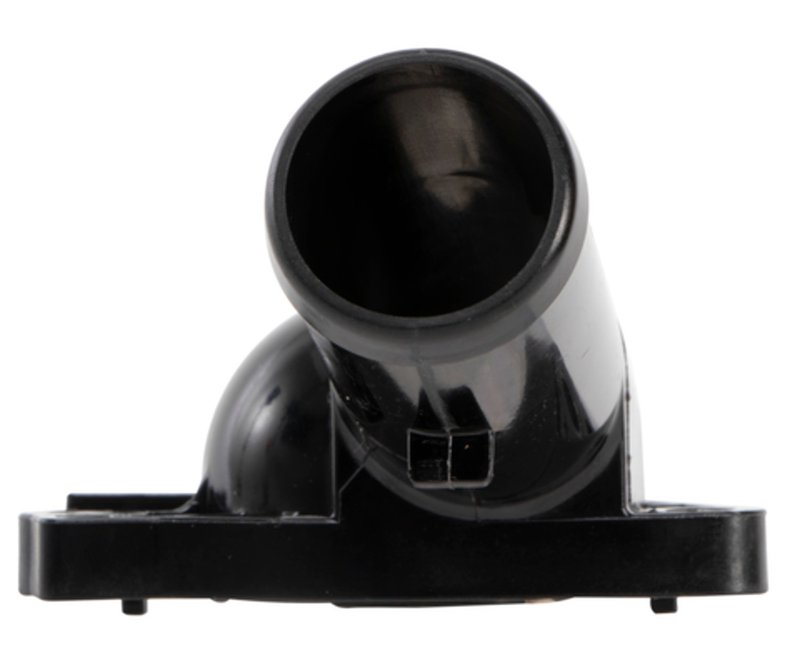

Four Seasons 86285 Engine Coolant Water Outlet - Upper

Engine Coolant Water Outlet Overview

Four Seasons Water Outlet 86285 is an engine coolant water outlet for the cooling system. This plastic outlet is built in an OE-style configuration without a thermostat and without a gasket or seal included, making it a direct replacement choice for service work on the coolant outlet assembly.

Fits 2015-2020 Hyundai Sonata, upper; 2019 Hyundai Santa Fe, N/A; 2020 Hyundai Santa Fe, upper; 2019 Hyundai Veloster, N/A; 2019 Hyundai Veloster N, N/A; 2016-2018 Hyundai Sonata, upper; 2017-2018 Hyundai Santa Fe Sport, upper; 2016-2017 Kia Optima, upper; 2017-2018 Kia Optima, N/A; 2016-2017 Kia Sorento, upper; 2018 Kia Sorento, N/A; 2020 Kia Optima, N/A.

Key Features

• Brand: Four Seasons Water Outlet
• Part number: 86285
• Engine coolant components outlet type
• Plastic construction
• Style: without thermostat
• Thermostat included: not included
• Gasket or seal included: not included
• Meets or exceeds OEM requirements
• Inlet diameter: 1.37 in.
• Maximum height: 2.6 in.
• Bolt hole center to bolt hole center: 2.39 in.
• Mounting flange width: 0.39 in.

Product Details

Four Seasons 86285 is a coolant outlet designed for vehicles that use an upper or standard outlet housing in the cooling circuit. The plastic housing follows OE-style dimensions and mounting points, with a 1.37-inch inlet diameter and measured flange and bolt spacing for accurate replacement fitment. This part cross-references Focus Auto Parts 86285 for the same application.

Use this water outlet when servicing the coolant passage on Hyundai Sonata, Hyundai Santa Fe, Kia Optima, Kia Sorento, Hyundai Veloster, and Hyundai Veloster N applications listed above. The part number 86285 is also referenced by OE-style interchange numbers 256302GTA0 and 817115.

Common Repair Uses

• Replacing a cracked or leaking coolant outlet housing
• Restoring proper coolant flow at the outlet connection
• Repairing a damaged plastic coolant component
• Addressing seepage around the outlet mounting surface
• Servicing an upper coolant outlet on Hyundai and Kia applications

Installation Notes

Verify the outlet position, inlet diameter, and bolt spacing against the original part before installation. Because the gasket or seal is not included, transfer or replace the sealing component as required for the repair. Confirm thermostat requirements for the vehicle, since this outlet is supplied without a thermostat.

Quality Assurance

Four Seasons 86285 meets or exceeds OEM requirements for the listed applications and is built as an OE-style replacement coolant outlet for service use.
