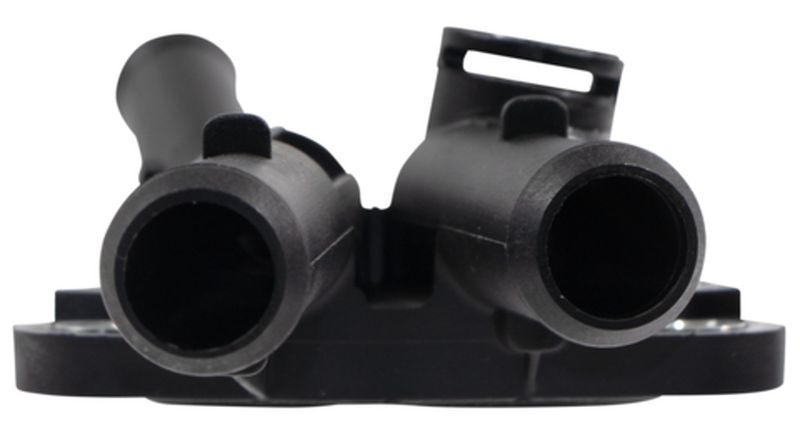

Four Seasons 86369 Engine Coolant Outlet Flange
| Brand | Four Seasons 86369 |
|---|---|
| Base Width IN | 0.269 |
| Bld Screw Included? | Not included |
| Blt Hole A to Ctr IN | 2.44 |
| Bolt Hole Quantity | 3.000 |
| Description | Engine coolant components |
| Gasket or Seal Included | Yes |
| Lip For Thermostat? | No |
| Material | Plastic |
| Mount Hole Qty | 3 |
| Mounting Hardware Included | No |
| Number of Outlets | 3.000 |
| Open Attachment | Hose barb |
| Outlet Dia. IN | 0.74 |
| Outlet Quantity | 3 |
| Style | W/o thermostat |
| Symetrical Base? | No |
| Total Port Quantity | 3 |
| Type | Coolant flange |
| Product line | Coolant Flange |
| Fits | Lexus and Toyota · 22 vehicles |
OE-style coolant flange. Three-port plastic design for engine coolant routing and service replacement.
Seal included. Helps restore a secure seal at the mounting surface during installation.
Four Seasons engineering. Backed by decades of thermal management experience and product testing.
Cross-references Focus Auto Parts 86369, Gates CO35076 and 16305F0010 for the same application. See all 5.
Engine coolant outlet flange overview
The Four Seasons 86369 coolant flange is a plastic engine coolant outlet flange with a three-port layout and a hose barb attachment. It includes a gasket or seal and is built for coolant system service on select Lexus and Toyota applications.
- Plastic coolant flange with three outlets for engine coolant routing
- Hose barb connection for secure hose attachment
- Gasket or seal included for sealing at installation
- Three-bolt mounting pattern with a 2.44 in. bolt-hole spacing
- Designed without a thermostat lip
Fitment and application details
Fits 2021-2025 Lexus ES250, N/A. Fits 2022-2025 Lexus NX250, N/A. Fits 2018-2024 Toyota Camry, N/A. Fits 2019-2024 Toyota RAV4, N/A. This part number 86369 is a direct reference for coolant flange replacement on these applications, and it cross-references Gates CO35076 for the same application.
Use this coolant outlet flange when the original housing is cracked, warped, or no longer sealing properly. The three-port design supports coolant routing in the engine cooling circuit, while the included seal helps restore a tight connection at the mounting surface.
Common replacement issues
- Coolant seepage at the flange or mounting surface
- Cracked plastic housing from heat cycling
- Damaged hose connection at the outlet barb
- Loss of sealing due to worn gasket or seal
- Cooling system leaks affecting normal coolant flow
Installation notes and quality
Verify hose diameter, bolt-hole spacing, and outlet layout before installation. Replace the seal during service and inspect adjacent hoses and clamps for wear. Part number 86369 is engineered and tested by Four Seasons for trouble-free operation, drawing on more than 50 years of mobile A/C and thermal management experience.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2025 | Lexus | ES250 | — | — | Coolant Flange |
| 2025 | Lexus | NX250 | — | — | Japan Built; Coolant Flange |
| 2024 | Lexus | ES250 | — | — | Coolant Flange |
| 2024 | Lexus | NX250 | — | — | Japan Built; Coolant Flange |
| 2024 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2024 | Toyota | RAV4 | — | — | Coolant Flange |
| 2023 | Lexus | ES250 | — | — | Coolant Flange |
| 2023 | Lexus | NX250 | — | — | Japan Built; Coolant Flange |
| 2023 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2023 | Toyota | RAV4 | — | — | Coolant Flange |
| 2022 | Lexus | ES250 | — | — | Coolant Flange |
| 2022 | Lexus | NX250 | — | — | Japan Built; Coolant Flange |
| 2022 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2022 | Toyota | RAV4 | — | — | Coolant Flange |
| 2021 | Lexus | ES250 | — | — | Coolant Flange |
| 2021 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2021 | Toyota | RAV4 | — | — | Coolant Flange |
| 2020 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2020 | Toyota | RAV4 | — | — | Coolant Flange |
| 2019 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
| 2019 | Toyota | RAV4 | — | — | Coolant Flange |
| 2018 | Toyota | Camry | 2.5L | L4 | Coolant Flange |
