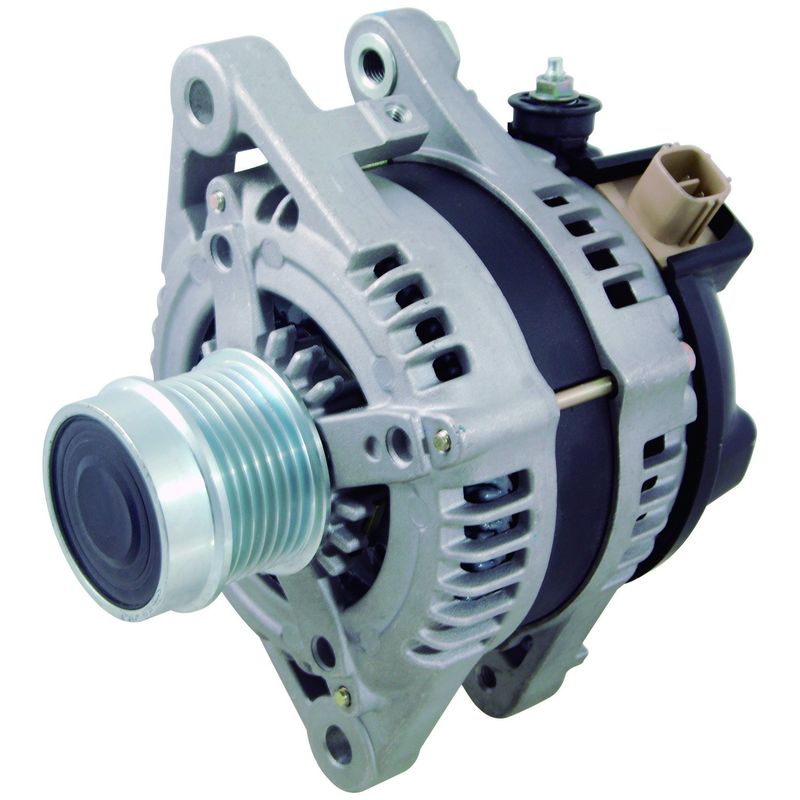

FWGC 11136R Alternator

Alternator Overview

This alternator is built for Toyota and Lexus charging-system applications that require stable 12-volt output and 100 amp performance. Part number 11136R is a DENSO-family unit with an internal regulator, internal fan, and serpentine pulley setup for direct replacement use in supported applications.

Key Features

• 12-volt alternator with a 100 amp amperage rating.
• Internal regulator and internal fan for integrated charging control and cooling.
• Serpentine belt pulley with 7 grooves and a decoupled clutch pulley.
• Clockwise rotation, with pulley included.
• Power Select construction uses proprietary components and processes for long service life.

Detailed Description

Part number 11136R is an alternator for select Toyota Avalon, Camry, Highlander, RAV4, and Venza applications, plus Lexus RX350 coverage in listed fitments. It is engineered to supply the amperage needed by modern electrical systems while matching the DENSO-style configuration used in the supported vehicles. The internal regulator, pulley design, and clockwise rotation help maintain proper charging-system operation where this exact specification is required. This part cross-references BBB Industries 11136 for the same application.

The Power Select line focuses on charging components built with proprietary manufacturing methods and parts selection to support consistent output and service life. For buyers searching for a Toyota Camry alternator 11136R or a Lexus RX350 alternator 11136R, this unit matches the listed electrical and pulley specifications rather than relying on a universal design.

Common Problems This Part Can Address

• Low battery charging caused by a worn alternator.
• Battery warning lights related to charging-system output.
• Electrical instability from an alternator that no longer maintains proper amperage.
• Belt-drive noise or charging issues tied to pulley wear.
• Charging-system failure in vehicles that require a 100 amp DENSO-style alternator.

Installation Notes and Tips

Verify the vehicle’s year, engine, and equipment notes before ordering, especially for Toyota Highlander and Toyota RAV4 applications with towing or country-of-origin differences. Confirm the pulley groove count, rotation direction, and amperage rating against the original unit before installation. This alternator is listed for N/A position fitments and should be matched to the exact charging-system specification shown in the fitment data.

Quality Assurance

Power Select alternators are manufactured with proprietary components and processes to support maximum life and performance. Part number 11136R is built to the stated electrical and pulley specifications for the listed applications.
