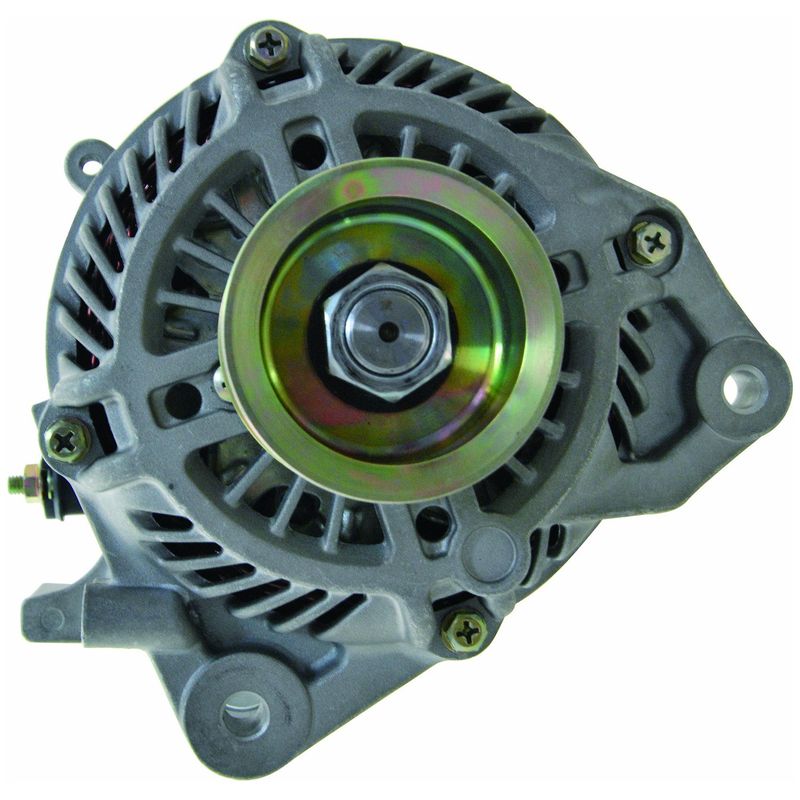

FWGC 11176R Alternator
| Brand | FWGC 11176R |
|---|---|
| Voltage | 12 |
| Fan Type | Internal |
| Rotation Direction | Clockwise (right) |
| Pulley Included | Yes |
| Family | Mitsubishi |
| Pulley Groove Quantity | 7 |
| Pulley Belt Type | Serpentine |
| Regulator Type | Internal |
| Decoupled Or Clutch Pulley | No |
| Amperage Rating | 80 |
| Fits | Honda · 6 vehicles |
OE-style replacement. Built as an alternator for straightforward charging-system service.
80-amp output. Provides the amperage needed for modern electrical loads.
Internal regulator. Integrated voltage control in a compact alternator design.
Cross-references BBB Industries 11176, 31100-RNA-A01 and 31100-RNA-A01RM for the same application. See all 9.
Alternator Overview
This alternator is built for charging-system replacement on the Honda Civic. Part number 11176R is an 80-amp unit with an internal regulator, internal fan, and a serpentine pulley setup for direct electrical system support.
Key Features
- 80-amp output for steady charging performance
- Internal regulator for integrated voltage control
- Internal fan design for compact alternator construction
- Serpentine pulley with 7 grooves
- Clockwise rotation with pulley included
- Mitsubishi family alternator design
Detailed Description
Power Select alternators are engineered to deliver the amperage needed for modern vehicle electrical loads. This unit uses proprietary components and manufacturing processes aimed at consistent output and long service life. Fits 2006-2011 Honda Civic, N/A. Part number 11176R is also referenced by BBB Industries 11176 for the same application.
Common Replacement Issues
- Battery warning light caused by weak charging output
- Dim lights or unstable electrical performance
- Charging system noise related to alternator wear
- Voltage irregularities from a failing internal regulator
Installation Notes
Verify pulley style, groove count, rotation direction, and electrical connector match the original unit before installation. Confirm fitment for the specific Honda Civic application listed above and compare the existing alternator specifications to Part number 11176R.
Quality Assurance
Power Select alternators are manufactured with proprietary components and processes to support long service life and consistent performance.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Civic | 1.8L | L4 | — |
| 2010 | Honda | Civic | 1.8L | L4 | — |
| 2009 | Honda | Civic | 1.8L | L4 | — |
| 2008 | Honda | Civic | 1.8L | L4 | — |
| 2007 | Honda | Civic | 1.8L | L4 | — |
| 2006 | Honda | Civic | 1.8L | L4 | — |
| No rows match your filter. | |||||
