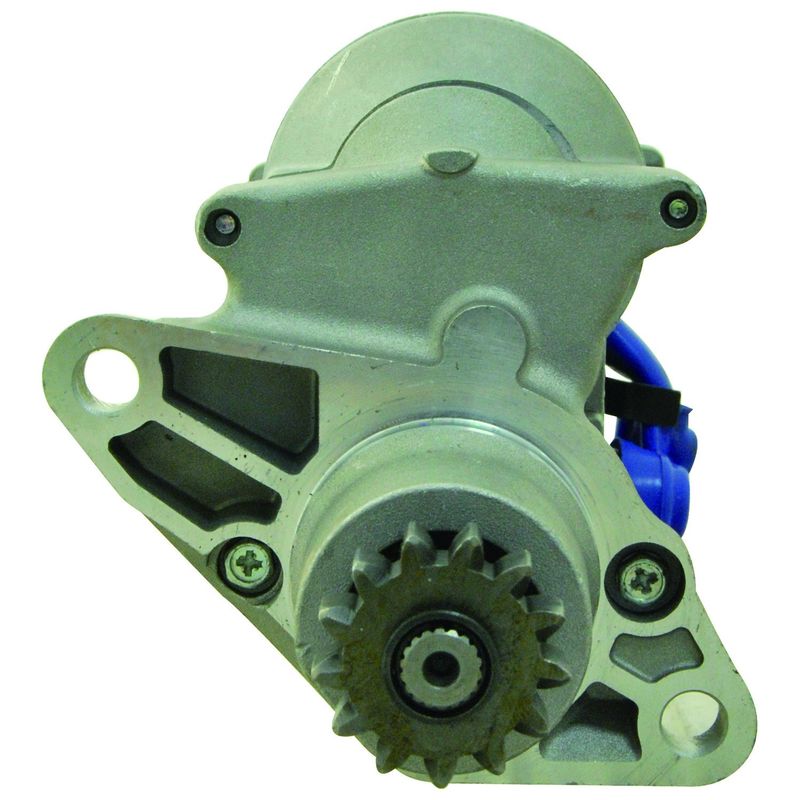

FWGC 17774R Starter
| Brand | FWGC 17774R |
|---|---|
| Voltage | 12 |
| Design | Offset gear reduction |
| Family | Denso |
| Power Rating | 1.4 |
| Starter Rotation | Counterclockwise (left) |
| Tooth Quantity | 13 |
| Mounting Type | Flange |
| Fits | Lexus and Toyota · 43 vehicles |
OE-style replacement. Built as a 12-volt starter with flange mount and 13-tooth drive.
Offset gear reduction. Counterclockwise rotation matches the listed starter configuration.
Power Select engineering. Proprietary components and processes support long service life.
Cross-references BBB Industries 17774, 28100-03100 and 28100-74260 for the same application. See all 12.
Starter Overview
This 12-volt starter is built for Toyota and Lexus applications that require an offset gear reduction design with counterclockwise rotation. Part number 17774R is a DENSO-family unit with a flange mount and 13-tooth configuration for direct replacement use in supported applications.
- 12-volt starter with offset gear reduction construction
- Counterclockwise rotation and 13-tooth drive
- Flange-mount design for supported applications
- Power rating of 1.4 for listed fitments
- Cross-references BBB Industries 17774 for the same application
Fitment Details
Compatible with Toyota Camry, Toyota RAV4, Toyota Avalon, Toyota Highlander, Toyota Sienna, Toyota Solara, Lexus RX300, and Lexus ES300 applications listed below. Fits 2002-2005 Toyota Camry, N/A; 2004-2005 Toyota RAV4, N/A; 1998-2004 Toyota Avalon, N/A; 1999-2003 Lexus RX300, N/A; 2001-2003 Toyota Highlander, N/A; 2001-2003 Toyota RAV4, N/A; 1998-2003 Toyota Sienna, N/A; 2002-2003 Toyota Solara, N/A; 1998-2001 Lexus ES300, N/A; 1998-2001 Toyota Camry, N/A; and 1999-2001 Toyota Solara, N/A.
What It Helps Correct
- Slow or failed engine cranking
- No-start conditions caused by starter wear
- Intermittent starter engagement
- Electrical starting issues in supported Toyota and Lexus vehicles
Installation Notes
Verify voltage, rotation, tooth count, and mounting type against the original unit before installation. Confirm the listed Toyota and Lexus fitment by model year and application notes, especially where standard and optional configurations are specified.
Quality Assurance
Power Select starters are engineered to deliver the amperage output needed for modern vehicle electrical demands. Proprietary components and manufacturing processes are used to support long service life and consistent performance.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2005 | Toyota | Camry | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2005 | Toyota | RAV4 | — | — | — |
| 2004 | Toyota | Avalon | — | — | — |
| 2004 | Toyota | Camry | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2004 | Toyota | RAV4 | — | — | — |
| 2003 | Lexus | RX300 | — | — | — |
| 2003 | Toyota | Avalon | — | — | — |
| 2003 | Toyota | Camry | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2003 | Toyota | Highlander | 3.0L | V6 | — |
| 2003 | Toyota | RAV4 | 2.0L | L4 | Opt, 1.4kw |
| 2003 | Toyota | Sienna | — | — | — |
| 2003 | Toyota | Solara | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2002 | Lexus | RX300 | — | — | — |
| 2002 | Toyota | Avalon | — | — | — |
| 2002 | Toyota | Camry | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2002 | Toyota | Highlander | 3.0L | V6 | — |
| 2002 | Toyota | RAV4 | 2.0L | L4 | Opt, 1.4kw |
| 2002 | Toyota | Sienna | — | — | — |
| 2002 | Toyota | Solara | 3.0L | V6 | Std, 1.4kw, OSGR Starter |
| 2001 | Lexus | ES300 | — | — | — |
| 2001 | Lexus | RX300 | — | — | — |
| 2001 | Toyota | Avalon | — | — | — |
| 2001 | Toyota | Camry | 3.0L | V6 | — |
| 2001 | Toyota | Highlander | 3.0L | V6 | — |
| 2001 | Toyota | RAV4 | 2.0L | L4 | Opt, 1.4kw |
| 2001 | Toyota | Sienna | — | — | — |
| 2001 | Toyota | Solara | 3.0L | V6 | — |
| 2000 | Lexus | ES300 | — | — | — |
| 2000 | Lexus | RX300 | — | — | — |
| 2000 | Toyota | Avalon | — | — | — |
| 2000 | Toyota | Camry | 3.0L | V6 | — |
| 2000 | Toyota | Sienna | — | — | — |
| 2000 | Toyota | Solara | 3.0L | V6 | — |
| 1999 | Lexus | ES300 | — | — | — |
| 1999 | Lexus | RX300 | — | — | — |
| 1999 | Toyota | Avalon | — | — | — |
| 1999 | Toyota | Camry | 3.0L | V6 | — |
| 1999 | Toyota | Sienna | — | — | — |
| 1999 | Toyota | Solara | 3.0L | V6 | — |
| 1998 | Lexus | ES300 | — | — | — |
| 1998 | Toyota | Avalon | — | — | — |
| 1998 | Toyota | Camry | 3.0L | V6 | — |
| 1998 | Toyota | Sienna | — | — | — |
