FWGC 7750R-6G2 Alternator
OE Quality 60-Day Returns
FWGC

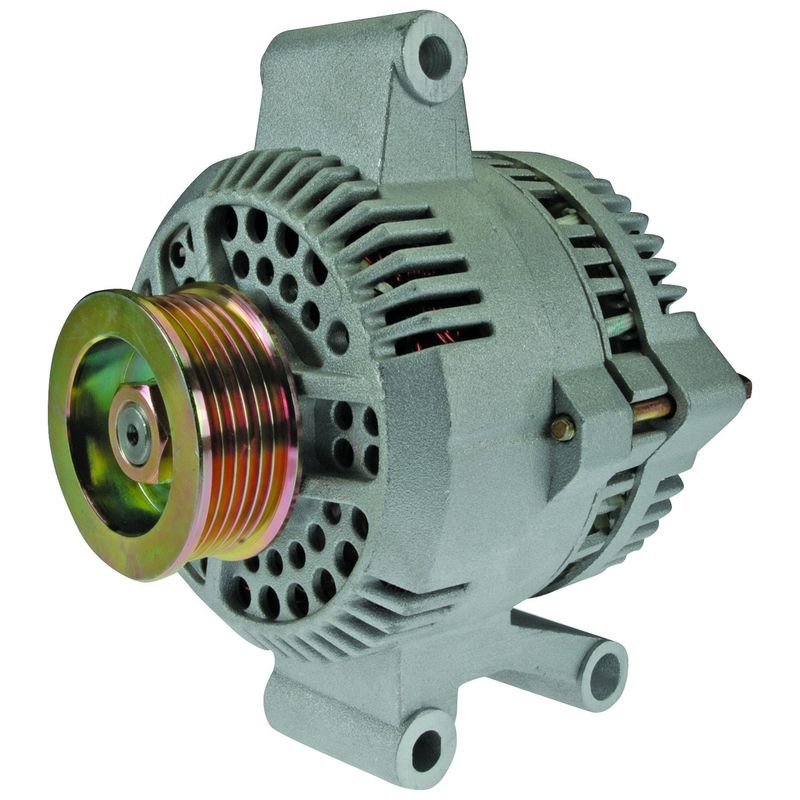

FWGC 7750R-6G2 Alternator

Brand FWGC 7750R-6G2
Voltage 12
Fan Type Internal
Rotation Direction Clockwise (right)
Pulley Included Yes
Family Ford
Pulley Groove Quantity 6
Pulley Belt Type Serpentine
Regulator Type Internal
Decoupled Or Clutch Pulley No
Amperage Rating 95
Fits Ford and Mazda · 70 vehicles

OE-style replacement. Built for standard charging-system service with the correct electrical output.

Integrated regulation. Internal regulator and fan simplify the alternator design.

Serpentine drive setup. Includes a 6-groove pulley for the listed belt configuration.

Cross-references BBB Industries 7750, 0 986 UN0 367 and F0PU-10346-BD for the same application. See all 27.

$99.42Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $99.42
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Alternator options

Alternator Overview

This 12-volt alternator is built for Ford and Mazda applications that require a standard 95 amp charging unit with a serpentine belt drive. Part number 7750R-6G2 is a direct-fit replacement for a wide range of trucks, vans, and SUVs with the specified pulley and rotation setup.

Key Features

  • 95 amp output for standard charging-system replacement needs
  • Internal regulator and internal fan for integrated operation
  • Clockwise rotation with a 6-groove serpentine pulley
  • Pulley included for installation on the correct belt drive configuration
  • Fits Ford and Mazda applications with the listed OE-style specifications

Detailed Description

Power Select alternators are engineered to provide the amperage needed for modern vehicle electrical loads. This alternator uses proprietary components and manufacturing processes aimed at consistent performance and service life. Part number 7750R-6G2 matches applications calling for a 12-volt, 95 amp unit with an internal regulator, clockwise rotation, and a non-clutch pulley.

Compatible With Ford F-150, Ford Ranger, Ford Explorer, Ford Bronco, Ford F-250, Ford F-350, Ford E-Series vans, Mazda B2300, Mazda B3000, Mazda B4000, and Mazda Navajo applications listed in the fitment data. This part cross-references BBB Industries 7750 for the same application.

Common Replacement Uses

  • Charging-system failure caused by a worn alternator
  • Low battery charging or repeated battery discharge
  • Electrical output loss under accessory load
  • Noise or pulley-related alternator wear
  • Replacement for a unit with the same amperage and pulley configuration

Installation Notes

Verify the vehicle’s belt type, pulley groove count, rotation direction, and amperage rating before installation. Confirm the application uses a standard unit with a 66 mm pulley outside diameter and the listed internal regulator setup. Match the OE reference and fitment notes for the exact Ford or Mazda application before replacing the alternator.

Quality Assurance

Power Select alternators are manufactured with proprietary components and processes to support maximum life and performance. Part number 7750R-6G2 is built to meet the electrical output requirements of the listed applications.

Related reading

This part fits 70 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2000FordF-1504.2LV6Standard Unit, 95 Amp, 66mm Pulley OD
1998FordF-100 Ranger3.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1997FordF-3505.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1997FordRanger2.3LL4Standard Unit, 95 Amp, 66mm Pulley OD
1997MazdaB2300——Standard Unit, 95 Amp, 66mm Pulley OD
1996FordBronco5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordClub Wagon——Standard Unit, 95 Amp, 66mm Pulley OD
1996FordE-150 Econoline5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordE-150 Econoline Club Wagon5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordE-250 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordE-350 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordE-350 Econoline Club Wagon5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordExplorer5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordF-1505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordF-2505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordF-3505.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1996FordRanger2.3LL4Standard Unit, 95 Amp, 66mm Pulley OD
1996MazdaB2300——Standard Unit, 95 Amp, 66mm Pulley OD
1996MazdaB3000——Standard Unit, 95 Amp, 66mm Pulley OD
1995FordAerostar4.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1995FordBronco5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordClub Wagon5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordE-150 Econoline5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordE-150 Econoline Club Wagon5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordE-250 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordE-350 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordE-350 Econoline Club Wagon5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordExplorer——Standard Unit, 95 Amp, 66mm Pulley OD
1995FordF-1505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordF-2505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordF-3505.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1995FordRanger3.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1995MazdaB2300——Standard Unit, 95 Amp, 66mm Pulley OD
1995MazdaB3000——Standard Unit, 95 Amp, 66mm Pulley OD
1995MazdaB4000——Standard Unit, 95 Amp, 66mm Pulley OD
1994FordAerostar4.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1994FordBronco5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordE-150 Econoline5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordE-150 Econoline Club Wagon5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordE-250 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordE-350 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordE-350 Econoline Club Wagon5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordExplorer——Standard Unit, 95 Amp, 66mm Pulley OD
1994FordF-1505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordF-2505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordF-3505.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1994FordRanger3.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1994MazdaB2300——Standard Unit, 95 Amp, 66mm Pulley OD
1994MazdaB3000——Standard Unit, 95 Amp, 66mm Pulley OD
1994MazdaB4000——Standard Unit, 95 Amp, 66mm Pulley OD
1994MazdaNavajo——Standard Unit, 95 Amp, 66mm Pulley OD
1993FordAerostar4.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1993FordBronco5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordE-150 Econoline5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordE-150 Econoline Club Wagon5.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordE-250 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordE-350 Econoline5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordE-350 Econoline Club Wagon5.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordExplorer——Standard Unit, 95 Amp, 66mm Pulley OD
1993FordF-1505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordF-2505.0LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordF-3505.8LV8Standard Unit, 95 Amp, 66mm Pulley OD
1993FordRanger3.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1993MazdaNavajo——Standard Unit, 95 Amp, 66mm Pulley OD
1992FordAerostar4.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1992FordExplorer——Standard Unit, 95 Amp, 66mm Pulley OD
1992FordRanger3.0LV6Standard Unit, 95 Amp, 66mm Pulley OD
1992MazdaNavajo——Standard Unit, 95 Amp, 66mm Pulley OD
1991FordExplorer——Standard Unit, 95 Amp, 66mm Pulley OD
1991MazdaNavajo——Standard Unit, 95 Amp, 66mm Pulley OD
Directly replaces or cross-references 27 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BBB Industries — 77500 986 UN0 367F0PU-10346-BDF07F-10300-AAF07F-AAF07U-10300-AAF07U-10300-ABF07U-10300-ACF07U-10346-ACF07U-AAF07U-ABF07U-ACF1PU-10346-CAF1TZ-10346-BF1TZ-10346-CF1TZ-10346-CRMF1TZ-10346-CRM1F1TZ-10346-CRM2F6PZ-10346-LAF17U-10300-AAF17U-AAF67U-10300-AAF67U-AAKBZZL0-18-300ZZL0-18-301ZZM0-18-300B
