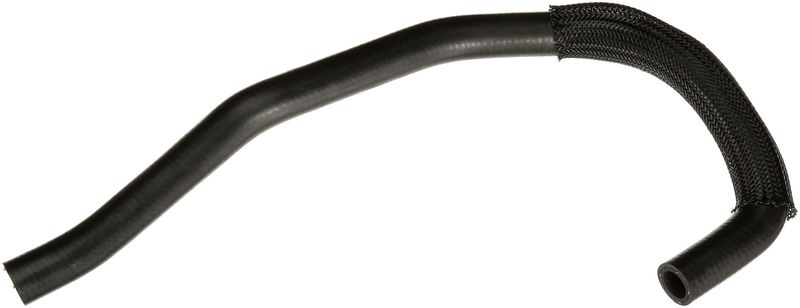

Gates 12463 HVAC Heater Hose - Inverter Cooling Hose-3
| Brand | Gates 12463 |
|---|---|
| Position | Inverter Cooling Hose-3 |
| Material | Epdm |
| End 1 Inside Diameter | .62 |
| End 1 Inside Diameter | 16 |
| End 2 Inside Diameter | .62 |
| End 2 Inside Diameter | 16 |
| Centerline Length | 21.8 |
| Centerline Length | 554 |
| Branch Quantity | 0 |
| 9839 | Yes |
| 9845 | 0 |
| Product line | Molded Heater Hose |
| Fits | Toyota · 12 vehicles |
Factory-molded OEM style. Fits tight engine compartments with a precise molded shape.
EPDM construction. Resists coolant, water, air, and marine use.
Small I.D. heater hose for HVAC coolant routing.
Cross-references Gates 12463, Remy 13463 and F11918 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Gates Molded Heater Hose for Toyota Hybrid Cooling
Gates 12463 is a factory-molded coolant hose built for tight engine compartments where a straight hose will not route correctly. Made from EPDM, it is specified for coolant, water, and air service, and it is also approved for marine applications.
This molded heater hose is part of the Gates Molded Heater Hose line, which focuses on OE-style routing and fitment for compact vehicle layouts. For drivers and technicians servicing Toyota Avalon and Toyota Camry hybrid cooling circuits, Gates 12463 provides the shaped routing needed for the inverter cooling hose-3 position.
- EPDM construction for coolant, water, and air applications
- Factory-molded shape for tighter engine bay routing
- Small I.D. design with 0.62 in. / 16 mm inside diameter at both ends
- Centerline length: 21.8 in. / 554 mm
- Approved for marine applications
- OE-style replacement hose for compact cooling system layouts
Fitment Details
- Fits 2013-2018 Toyota Avalon, Inverter Cooling Hose-3
- Fits 2012-2017 Toyota Camry, Inverter Cooling Hose-3
Use Gates 12463 when replacing a molded hose in the inverter cooling circuit on Toyota Avalon and Toyota Camry models. This part cross-references Remy 13463 for the same application.
Common Repair Uses
- Cracked or hardened coolant hose material
- Leaks at a molded hose section that no longer holds shape
- Poor routing in a tight engine compartment
- Cooling system service on inverter cooling hose-3 applications
- Replacement of a hose with incorrect bend geometry
Installation Notes and Tips
Verify end diameters and centerline length before installation to confirm routing and fit. Inspect adjoining clamps, fittings, and mating surfaces for wear or corrosion, and make sure the hose follows the original molded path without twisting.
Quality Assurance
Gates manufactures this hose as an OEM-style molded replacement for modern compact engine compartments. The EPDM construction and factory-shaped design support consistent fitment in the specified Toyota Avalon and Toyota Camry applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2017 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2017 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2016 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2016 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2015 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2015 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2014 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2014 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2013 | Toyota | Avalon | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2013 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
| 2012 | Toyota | Camry | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Inverter Cooling Hose-3 | Molded Heater Hose |
