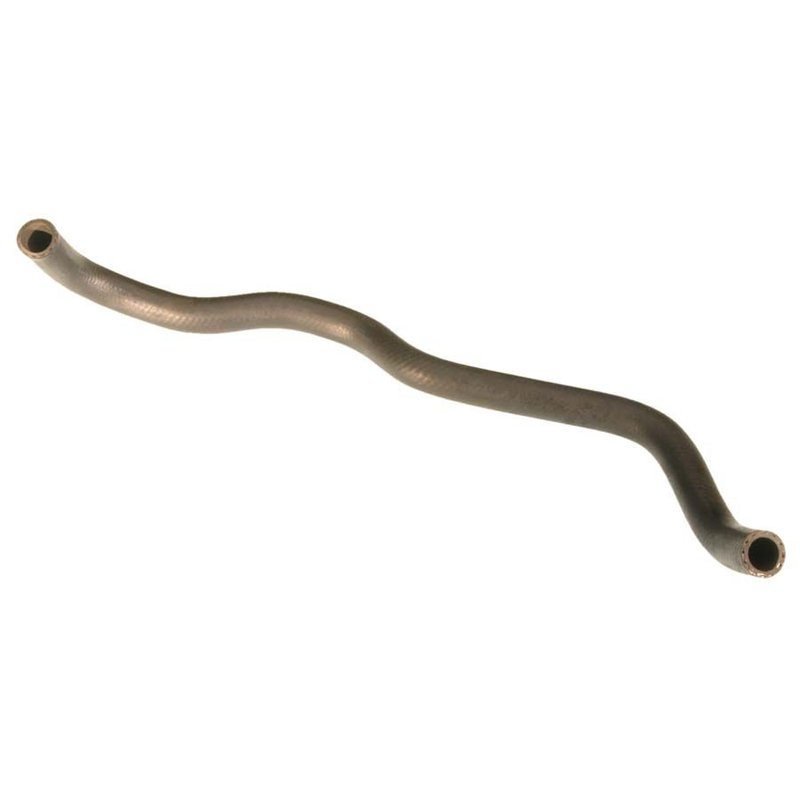

Gates 18849 HVAC Heater Hose - Heater Inlet, Valve To Engine or Valve-1 To Engine

Gates Molded Heater Hose 18849

Gates 18849 is a factory-molded heater hose built for tight engine bays and OE-style routing. With a 16 mm (0.62 in) inside diameter at both ends and a 587 mm (23.1 in) centerline length, it supports coolant, water, and air transfer in HVAC and cooling system service.

Key Features

• EPDM construction for heater and coolant service
• Factory-molded shape for compact engine compartment routing
• 16 mm (0.62 in) inside diameter at both ends
• 23.1 in (587 mm) centerline length
• Approved for marine applications
• OE-style molded replacement for HVAC heater hose service

Product Details

The Gates Molded Heater Hose line is built around factory-molded, OE-style fitment for vehicles with smaller, tighter engine compartments. Part number 18849 is formed to follow the original hose path and is specified for coolant, water, and air applications. It is a direct service option for HVAC heater hose replacement on applications such as the Mitsubishi Eclipse heater inlet, Mitsubishi Galant heater inlet, and Honda Accord or Honda Prelude valve-to-engine routing. This part cross-references Dayco 87688 for the same application.

Common Problems It Can Address

• Cracked or heat-aged heater hose material
• Coolant seepage at a molded hose section
• Poor hose routing in tight engine compartments
• Restricted heater circuit flow from a deteriorated hose
• Service replacement for worn HVAC heater inlet hose routing

Installation Notes and Tips

• Verify end diameters and centerline length before installation.
• Match the molded shape to the original hose routing on the vehicle.
• Inspect clamps, fittings, and adjoining pipes for wear before reassembly.
• Confirm the hose path clears nearby components in compact engine bays.

Quality Assurance

Gates manufactures this molded coolant hose as an OE-style replacement built from EPDM material for HVAC and cooling system service. Part number 18849 is engineered for the listed vehicle applications, including Mitsubishi Eclipse and Mitsubishi Galant heater inlet service, as well as Honda Accord and Honda Prelude valve-to-engine routing.
