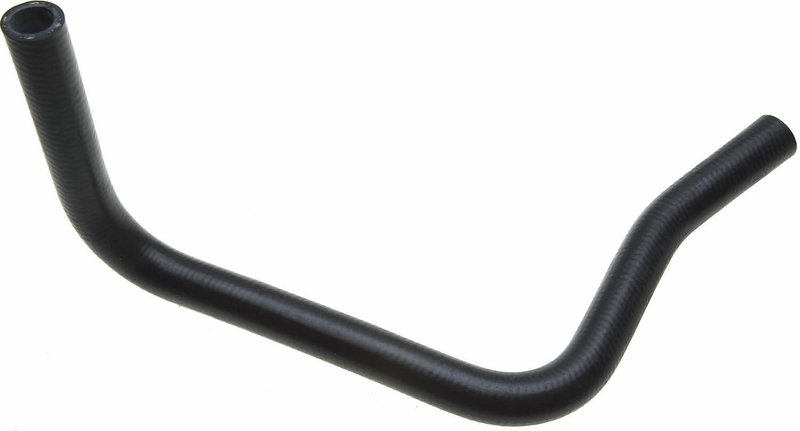

Gates 19117 HVAC Heater Hose - Inverter Cooling Hose-1, Tee-1 To Thermostat or Valve To Thermostat
Reliable HVAC Heater Hose for Ford, Lexus, and Mazda Vehicles
The Gates Molded Heater Hose 19117 is engineered to provide durable and precise fitment for select Ford, Lexus, and Mazda models. Designed with high-quality EPDM material, this molded heater hose ensures consistent performance in your vehicle's heating system.
- Constructed from durable EPDM material for heat and chemical resistance
- Molded design for exact fit and easy installation
- Centerline length of 20.4 inches (518 mm) for proper routing
- Consistent inside diameter of 0.63 inches (16 mm) on both ends
- Compatible with Ford B3000, F-100 Ranger, Ranger, and Lexus HS250h models
About the Gates Molded Heater Hose Product Line
The Molded Heater Hose line by Gates focuses on precision-engineered hoses designed to meet specific vehicle requirements. These hoses are molded to exact specifications, ensuring a secure fit and reliable sealing in HVAC systems. The 19117 part number is part of this line, offering a tailored solution for heating system connections in select Ford, Lexus, and Mazda vehicles.
Product Details and Specifications
This HVAC heater hose features a molded construction using EPDM, a synthetic rubber known for its resistance to heat, ozone, and automotive fluids. Both ends of the hose have an inside diameter of 0.63 inches (16 mm), providing consistent flow and compatibility with OEM fittings. The centerline length measures 20.4 inches (518 mm), allowing for proper installation without excess slack or tension. The hose does not include quick connect fittings or branches, simplifying its integration into the vehicle's heating system.
Common Applications and Problem Solving
- Replacement of worn or cracked heater hoses in Ford B3000 and F-100 Ranger models
- Restoring proper coolant flow in Lexus HS250h heating systems
- Addressing leaks or blockages caused by deteriorated hoses in Mazda Ranger vehicles
- Ensuring reliable heating performance during cold weather operation
- Preventing overheating issues related to faulty heater hose connections
Installation Notes and Tips
When installing the Gates Molded Heater Hose 19117, ensure the vehicle is cool and the cooling system is depressurized. Verify the hose routing matches the original configuration to avoid kinks or interference with other components. Use appropriate clamps to secure the hose ends firmly. Inspect adjacent components for wear or damage during replacement to maintain overall HVAC system integrity.
Quality Assurance and Warranty
Gates manufactures the Molded Heater Hose 19117 to meet or exceed OEM standards for durability and performance. The EPDM material and molded design contribute to long service life under typical operating conditions. While specific warranty details are not provided here, Gates products generally come with manufacturer-backed quality assurance to support reliable vehicle operation.
| Brand | Gates |
| Part Number | 19117 |
| Position | Molded Heater Hose, Tee-1 To Thermostat, Inverter Cooling Hose-1, and Valve To Thermostat |
| Material | Epdm |
| End 1 Inside Diameter | .63 |
| End 1 Inside Diameter | 16 |
| End 2 Inside Diameter | .63 |
| End 2 Inside Diameter | 16 |
| Centerline Length | 20.4 |
| Centerline Length | 518 |
| Branch Quantity | 0 |
| 9839 | Yes |
| 9845 | 0 |
| Centerline Length (in) | 20.4 |
| Centerline Length (mm) | 518 |
| Molded | Yes |
| Number of Quick Connect Fittings | 0 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Lexus | HS250h | 2.4L | L4 | ELECTRIC/GAS | Inverter Cooling Hose-1 | Radiator and HVAC compatible coolant and heater hose.; Molded Heater Hose |
| 2011 | Lexus | HS250h | 2.4L | L4 | ELECTRIC/GAS | Inverter Cooling Hose-1 | Radiator and HVAC compatible coolant and heater hose.; Molded Heater Hose |
| 2010 | Lexus | HS250h | 2.4L | L4 | ELECTRIC/GAS | Inverter Cooling Hose-1 | Radiator and HVAC compatible coolant and heater hose.; Molded Heater Hose |
| 1997 | Ford | F-100 Ranger | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1997 | Ford | Ranger | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1997 | Mazda | B3000 | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1996 | Ford | F-100 Ranger | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1996 | Ford | Ranger | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1996 | Mazda | B3000 | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1995 | Ford | Ranger | 3.0L | V6 | GAS | Tee-1 To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
| 1995 | Mazda | B3000 | 3.0L | V6 | GAS | Valve To Thermostat | HVAC heater hose with A/C, fits Serpentine Belt application.; Molded Heater Hose |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
