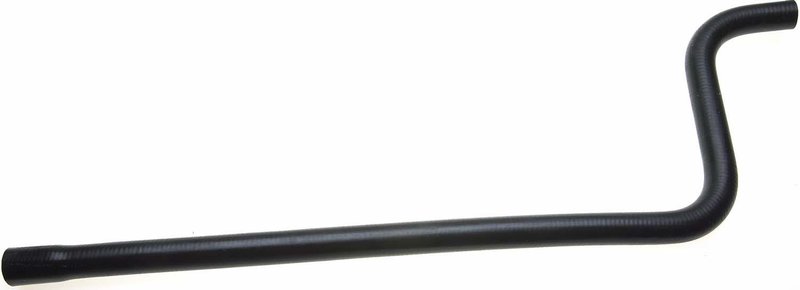

Gates 19126 HVAC Heater Hose - Heater To Tee or Heater To Thermostat

Overview of Gates Molded Heater Hose 19126

The Gates Molded Heater Hose 19126 is designed for reliable HVAC system performance in select Cadillac and Jeep vehicles. Engineered with durable EPDM material, this molded heater hose ensures proper coolant flow and heat transfer for models like the Cadillac Commercial Chassis and Jeep Wrangler TJ.

• Constructed from high-quality EPDM for heat and chemical resistance
• Molded design for precise fit and leak prevention
• End 1 inside diameter: 0.59 inches (15 mm)
• End 2 inside diameter: 0.72 inches (18 mm)
• Centerline length: 28.4 inches (721 mm)
• No quick connect fittings or branches, ensuring straightforward installation

Detailed Product Description

The Gates Molded Heater Hose 19126 is part of the Molded Heater Hose product line, which focuses on delivering exact-fit hoses molded to match specific vehicle configurations. This hose is made from EPDM, a synthetic rubber known for its resistance to heat, ozone, and automotive fluids, making it suitable for HVAC heater core connections. The molded construction eliminates the need for multiple hose clamps and reduces the risk of leaks, providing a secure and durable connection.

With an inside diameter of 0.59 inches (15 mm) on one end and 0.72 inches (18 mm) on the other, and a centerline length of 28.4 inches (721 mm), this hose is designed to fit the HVAC systems of Cadillac Commercial Chassis and Jeep models including the Fleetwood, TJ, and Wrangler. The absence of quick connect fittings and branches simplifies the hose routing and installation process.

Applications and Common Issues Addressed

• Replacement of worn or cracked heater hoses in Cadillac Commercial Chassis and Jeep Wrangler TJ
• Resolving coolant leaks in HVAC heater core connections
• Restoring proper coolant flow to prevent heater core overheating
• Eliminating hose collapse or blockage that affects cabin heating performance
• Addressing hose degradation caused by exposure to heat and automotive fluids

Installation Notes and Tips

• Ensure the vehicle is cool and the cooling system is depressurized before installation
• Verify hose orientation matches the molded shape for proper fit
• Inspect hose ends and connections for secure seating to prevent leaks
• Use appropriate clamps if required, although molded design minimizes clamp use
• Check for clearance around the hose to avoid contact with moving parts or sharp edges

Quality Assurance and Warranty

Gates Molded Heater Hose 19126 is manufactured to meet OEM specifications for durability and performance. The EPDM material and molded construction provide resistance to heat, pressure, and automotive chemicals, ensuring long service life. While specific warranty details are not provided, Gates products typically come with a limited warranty against defects in material and workmanship.
