OE Quality
60-Day Returns

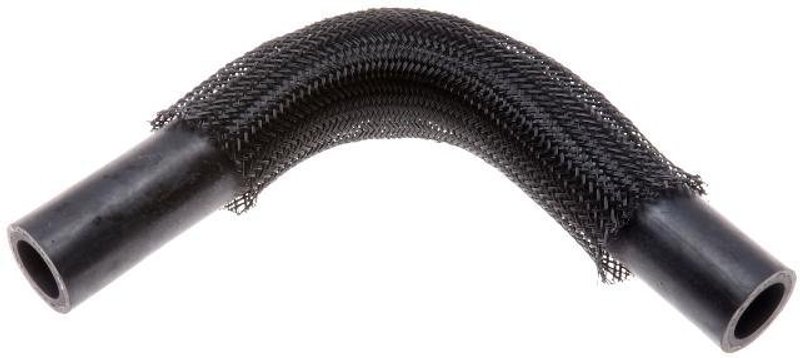

Gates 19907 Radiator Coolant Hose - Auxiliary Water Pump Inlet, Auxiliary Water Pump Inlet (Power Electronics Module) or Lower - Pipe To Engine
Gates 19907 Molded Heater Hose Overview
The Gates 19907 molded heater hose is an OEM-style coolant hose built for tight engine compartments where a formed routing path matters. Made from EPDM, it is suitable for coolant, water, and air service, and it is approved for marine applications.
This Gates Molded Heater Hose line is made for factory-style fitment in compact cooling-system layouts, including applications where a small inside diameter and molded shape are required.
Key Features
- EPDM construction for cooling-system service
- Factory-molded shape for tighter engine bay routing
- Small I.D. design with 0.72 in. / 18 mm ends
- 9.5 in. centerline length for compact installations
- Approved for coolant, water, air, and marine applications
- OE-style replacement hose for select Volkswagen e-Golf and Nissan LEAF applications
Product Details
Gates 19907 is a molded radiator coolant hose designed around the demands of modern packaging, where hoses must clear nearby components while maintaining a stable route. The 9.5-inch centerline length and molded profile support applications that need a formed hose rather than a straight universal section. This part number, 19907, is listed for the 2016-2019 Volkswagen e-Golf auxiliary water pump inlet, the 2015 Volkswagen e-Golf auxiliary water pump inlet at the power electronics module, and the 2011-2012 Nissan LEAF lower pipe-to-engine position. This part cross-references Quality-Built 11907 for the same application.
Common Problems This Hose Can Address
- Cracked or hardened coolant hose material
- Improper hose routing in a tight engine compartment
- Leaks at a molded hose section
- Restricted coolant flow from a deteriorated hose
- Service replacement for a damaged auxiliary water pump inlet hose
Installation Notes and Tips
Verify the hose path, end diameters, and centerline length before installation. For the Volkswagen e-Golf and Nissan LEAF applications listed for Gates 19907, match the position exactly, since the molded shape and cut-to-fit notes vary by vehicle and configuration. Confirm the auxiliary water pump inlet or lower pipe-to-engine routing before trimming or installing the hose.
Quality Assurance
Gates manufactures this molded heater hose as an OE-style replacement built to the dimensional and material requirements of modern cooling systems. The EPDM construction and molded form support consistent fitment in the specified Volkswagen e-Golf and Nissan LEAF applications.
| Brand | Gates |
|---|---|
| Part Number | 19907 |
| Position | Molded Heater Hose, Lower - Pipe To Engine, Auxiliary Water Pump Inlet, and Auxiliary Water Pump Inlet (Power Electronics Module) |
| Material | Epdm |
| End 1 Inside Diameter | .72 |
| End 1 Inside Diameter | 18 |
| End 2 Inside Diameter | .72 |
| End 2 Inside Diameter | 18 |
| Centerline Length | 241 |
| Centerline Length | 9.5 |
| Branch Quantity | 0 |
| 9839 | Yes |
| 9845 | 0 |
| Centerline Length (in) | 9.5 |
| Centerline Length (mm) | 241 |
| Molded | Yes |
| Number of Quick Connect Fittings | 0 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Volkswagen | e-Golf | -L | -- | ELECTRIC | Auxiliary Water Pump Inlet | Cut to fit; Not exact duplicate; Molded Heater Hose |
| 2018 | Volkswagen | e-Golf | -L | -- | ELECTRIC | Auxiliary Water Pump Inlet | Cut to fit; Not exact duplicate; Molded Heater Hose |
| 2017 | Volkswagen | e-Golf | -L | -- | ELECTRIC | Auxiliary Water Pump Inlet | Cut to fit; Not exact duplicate; Molded Heater Hose |
| 2016 | Volkswagen | e-Golf | -L | -- | ELECTRIC | Auxiliary Water Pump Inlet | Cut to fit; Not exact duplicate; Molded Heater Hose |
| 2015 | Volkswagen | e-Golf | -L | -- | ELECTRIC | Auxiliary Water Pump Inlet (Power Electronics Module) | Cut to fit for vehicles without auxiliary heater; Molded Heater Hose |
| 2012 | Nissan | LEAF | -L | -- | ELECTRIC | Lower - Pipe To Engine | Molded Heater Hose |
| 2011 | Nissan | LEAF | -L | -- | ELECTRIC | Lower - Pipe To Engine | Molded Heater Hose |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
