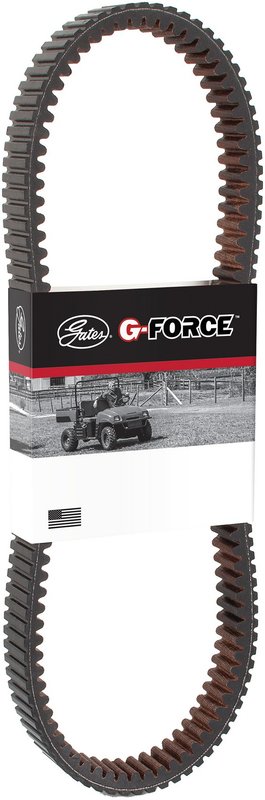

Gates 19G3450 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force CVT Belt 19G3450

The Gates G-Force CVT Belt 19G3450 is engineered for automatic continuously variable transmissions, designed to deliver reliable power transfer in powersport vehicles. Featuring a double notched construction and aramid cord material, this belt ensures durability and consistent performance in demanding transmission systems.

• Top width: 1.188 inches (30 mm)
• Outside circumference: 35.625 inches (905 mm)
• Double notched construction for enhanced flexibility
• Black chloroprene belt material for wear resistance
• Aramid cord reinforcement for high tensile strength
• Fabric bottom for improved grip and reduced slippage
• Cross section designation: Rvs-r
• 28-degree angle design for optimized power transmission
• Power sport CVT belt type suitable for automatic transmissions

G-Force CVT Belt Product Line Details

The G-Force CVT Belt line by Gates focuses on delivering belts specifically designed for powersport applications, emphasizing durability and performance under variable load conditions. The 19G3450 model benefits from this product line's advanced materials and construction techniques, ensuring compatibility with a range of automatic continuously variable transmissions requiring a robust and reliable belt solution.

Technical Description and Features

This automatic continuously variable transmission (CVT) belt is constructed with a chloroprene rubber compound, providing resistance to heat and wear. The double notched design enhances flexibility, allowing the belt to conform to the pulleys' varying diameters during operation. Reinforced with aramid cords, the belt maintains high tensile strength and resists stretching, which is critical for maintaining transmission efficiency. The fabric bottom layer improves grip on the pulley surfaces, reducing slippage and improving power transfer. With a top width of 1.188 inches and an outside circumference of 35.625 inches, this belt fits specific powersport CVT systems requiring these dimensions.

Applications and Problem Solving

• Replacement for worn or damaged CVT belts in powersport vehicles
• Addresses slipping or loss of power transmission in automatic CVT systems
• Helps prevent premature belt failure due to heat or wear
• Improves transmission efficiency by maintaining proper belt tension and grip
• Suitable for vehicles requiring a 30 mm top width and 905 mm circumference belt

Installation Notes and Tips

Ensure the CVT system is clean and free of debris before installing the Gates G-Force CVT Belt 19G3450. Verify the belt dimensions match the vehicle’s specifications, particularly the top width and outside circumference. Proper alignment of the pulleys is essential to prevent uneven wear. It is recommended to inspect other transmission components during installation to ensure optimal system performance.

Quality Assurance and Warranty

Gates manufactures the G-Force CVT Belt 19G3450 to meet OE performance standards, ensuring reliable operation in powersport automatic transmissions. The use of aramid cords and chloroprene materials reflects a focus on durability and longevity. While specific warranty details are not provided, Gates products typically adhere to strict quality control processes to maintain consistent product reliability.
