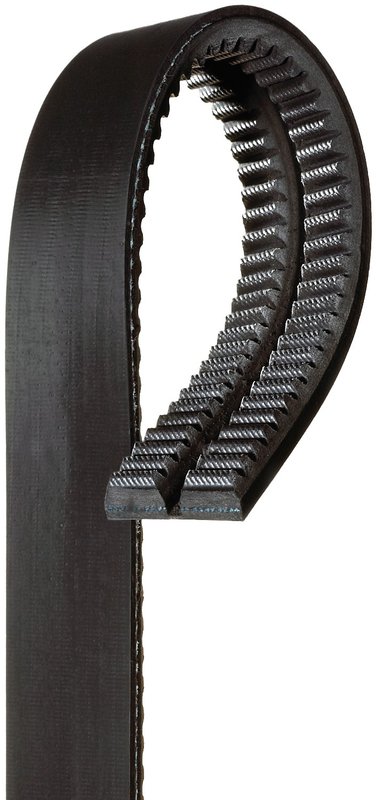

Gates 2/9670PB Accessory Drive Belt - Fan and Alternator

Gates PowerBand V-Belt Overview

The Gates 2/9670PB is a high capacity joined V-belt built for accessory drive systems that see heavy load and vibration. Its joined-strand design helps the belt set run as a single unit for steadier tracking and more even load distribution.

For applications such as Ford F-150 and Chevrolet Silverado accessory drive setups, this Gates accessory drive belt is built around EPDM construction, a notched profile, and polyester cord reinforcement for consistent pulley engagement.

Key Features

• High Capacity Joined V-Belt design for belt-set applications
• Permanent tie band joins the strands for improved stability
• Notched construction for flexible operation in pulley systems
• EPDM belt material for durable accessory drive service
• Polyester cord material for added strength and dimensional control
• HC50 section with 36-degree angle
• Top width per strand: 0.5 in. (13 mm)
• Effective length: 66.99 in. (1702 mm)
• Outside circumference: 67.375 in. (1710 mm)

Product Details

Gates PowerBand Green Stripe belts are engineered for problematic, heavy-duty, high-vibration accessory drive systems that require matched belt sets. The joined construction keeps the strands aligned so the belt rides more consistently in the pulley grooves, which supports smoother power transfer across the drive system. Part number 2/9670PB is also referenced by cross numbers such as 2/17671TT and 2B17670 for the same application.

Common Issues This Belt Can Address

• Belt flutter in high-vibration accessory drive systems
• Uneven loading across multiple V-belts
• Tracking instability in pulley grooves
• Noise caused by inconsistent belt alignment
• Wear associated with matched-belt drive setups

Installation Notes

Verify pulley groove width, belt section, and effective length before installation. Inspect the accessory drive pulleys for wear, contamination, or misalignment, since joined V-belts depend on proper groove engagement. Confirm the replacement matches the original belt profile and routing for the vehicle application.

Compatible With Ford F-150 and Chevrolet Silverado accessory drive belt applications where the specified HC50 joined V-belt is required. Use part number 2/9670PB to confirm the correct replacement during service.

Quality Assurance

Gates is a recognized name in accessory drive components, and the PowerBand line is built for demanding belt-set applications that require stable operation under load. The 2/9670PB follows the listed dimensions and construction details for accurate replacement selection.
