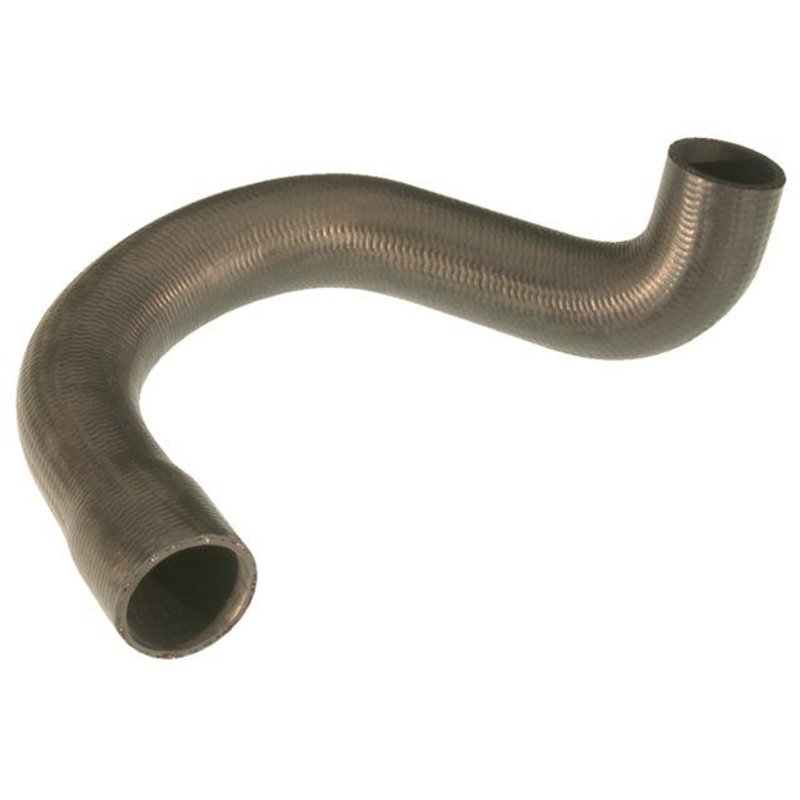

Gates 20537 Radiator Coolant Hose - Lower

Gates 20537 Molded Coolant Hose Overview

The Gates 20537 molded coolant hose is an OE-style radiator coolant hose built for lower cooling-system routing on select Jeep applications. Made from EPDM and formed to a molded shape, it supports a precise fit for replacement work on Jeep Cherokee, CJ5, J10, J20, and Wagoneer cooling systems.

Gates Molded Coolant Hose products are built for upper, lower, bypass, heater, and other coolant routing needs using OEM-quality specifications. The 20537 follows that product-line approach with a formed profile that helps match the original hose path on the vehicle.

Key Features

• Part number: 20537
• Brand line: Gates Molded Coolant Hose
• EPDM construction for coolant-system service
• Molded hose design for a formed replacement shape
• Lower radiator coolant hose application
• End 1 inside diameter: 1.5 in. (38 mm)
• End 2 inside diameter: 1.78 in. (45 mm)
• Centerline length: 19.2 in. (488 mm)
• No spring and no quick-connect fittings

Detailed Description

Gates 20537 is a molded radiator coolant hose for lower hose routing on select Jeep models. It is listed for 1974 Jeep Cherokee, 1972-1974 Jeep CJ5, 1974 Jeep J10, 1974 Jeep J20, and 1965-1973 Jeep Wagoneer. This hose uses EPDM material and molded construction to match the original coolant path and connection sizes used in these applications.

For buyers searching for a 1974 Jeep Cherokee lower radiator hose, a 1972-1974 Jeep CJ5 molded coolant hose, or a 1965-1973 Jeep Wagoneer lower coolant hose, Gates 20537 provides a direct replacement option. This part cross-references Anchor 3537 and AP Exhaust 7310 for the same application.

Common Cooling Issues This Hose Can Address

• Cracked or split lower radiator hose
• Coolant leaks at the hose body or ends
• Softening, swelling, or collapse from age and heat
• Incorrect hose routing after a previous replacement
• Loss of coolant flow caused by a deteriorated hose

Installation Notes and Tips

Verify the hose shape, end diameters, and centerline length against the original part before installation. Confirm lower-position routing on the vehicle and inspect the radiator neck, engine outlet, and clamps for wear or corrosion before installing the new hose. For best results, replace coolant with the correct specification after the system is serviced and bleed air from the cooling system according to the vehicle procedure.

Quality Assurance

Gates manufactures molded coolant hoses to OEM-quality specifications for replacement cooling-system service. The 20537 is built as a formed EPDM hose for the listed Jeep applications and follows the Gates molded hose product-line approach for fit and routing accuracy.
