Gates 20893 Radiator Coolant Hose - Lower, Upper or Upper - Reservoir To Radiator

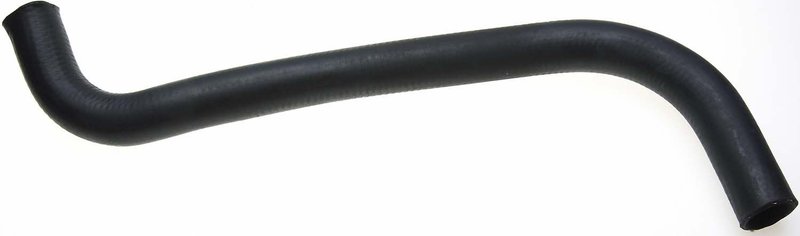

Gates 20893 Molded Coolant Hose Overview

The Gates 20893 molded coolant hose is built for radiator coolant hose replacement where a formed EPDM hose is required. It follows OEM-quality specifications for upper, lower, bypass, heater, and other coolant routing applications, helping simplify radiator hose service on supported vehicles.

Compatible With Chrysler Neon upper hose applications, Chevrolet Camaro upper hose applications, Pontiac Firebird upper hose applications, and select lower hose applications on full-size GM cars and chassis models.

Key Features

• EPDM construction for coolant-system durability
• Molded hose shape for accurate routing and fit
• 1.25 in. inside diameter at both ends
• 27.5 in. centerline length
• No spring and no quick-connect fittings
• Designed for upper and lower radiator coolant hose applications
• Gates Molded Coolant Hose line coverage for a wide range of replacement needs

Product Details

Gates part number 20893 is a molded radiator coolant hose made from EPDM and formed to match the routing demands of specific cooling-system layouts. The hose measures 1.25 inches inside diameter at each end and 27.5 inches centerline length, making it a direct-fit style replacement for vehicles that call for a molded hose rather than universal straight hose. This part number also appears in cross-reference listings such as Four Seasons 20893 for the same application.

The Gates Molded Coolant Hose product line is engineered to cover upper, lower, bypass, heater, and other coolant hose positions with OE-style dimensions and shapes. For vehicles such as Chrysler Neon, Chevrolet Camaro, and Pontiac Firebird, the molded profile helps maintain proper hose routing in tight engine compartments.

Fitment Notes

• Fits 2000-2002 Chrysler Neon, Upper
• Fits 1993-1995 Chevrolet Camaro, Upper
• Fits 1993-1995 Pontiac Firebird, Upper
• Fits 1994-1996 Buick Roadmaster, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1995-1996 Cadillac Commercial Chassis, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1995-1996 Cadillac Fleetwood, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1994-1996 Chevrolet Caprice, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1994-1996 Chevrolet Impala, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1996 Chevrolet Caprice, Lower; W/O H.D. Cool.; Protective sleeve required; Cut to fit
• Fits 1996 Chevrolet Impala, Lower; W/O H.D. Cool.; Protective sleeve required; Cut to fit
• Fits 1994 Chevrolet Commercial Chassis, Lower; W/O H.D. Cool.; Cut to fit
• Fits 1988-1992 Chrysler Dynasty, Upper
• Fits 1991-1992 Chrysler Imperial, Upper
• Fits 1988-1992 Chrysler New Yorker, Upper
• Fits 1984-1985 Nissan 200SX, Upper
• Fits 1978 Mercedes-Benz 300D, Lower

Common Replacement Uses

• Cracked or hardened radiator hose replacement
• Coolant leaks caused by aging EPDM hose material
• Improper hose routing from a collapsed or misshaped hose
• Service on upper or lower coolant hose locations listed above
• Replacement for molded hose applications that require formed bends

Installation Notes and Quality

Verify hose routing, end diameters, and centerline length against the original part before installation. Some listed applications require cut-to-fit installation or a protective sleeve, so confirm vehicle-specific notes before service. Gates 20893 is manufactured to OEM-quality specifications for the supported cooling-system applications.
