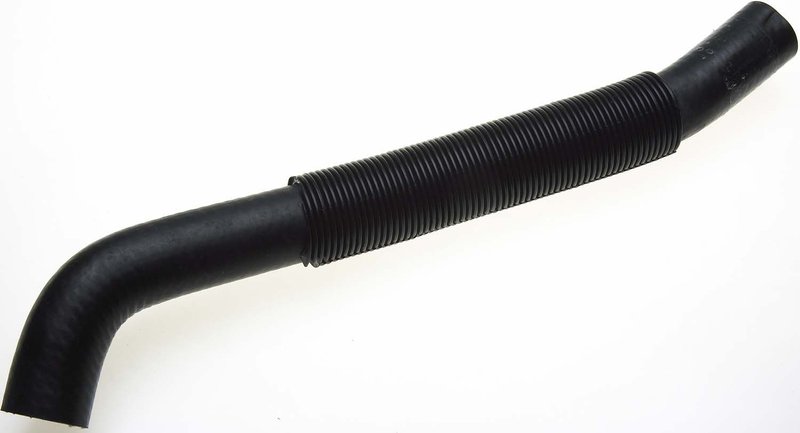

Gates 22116 Radiator Coolant Hose - Upper

Gates 22116 Molded Coolant Hose

The Gates 22116 molded coolant hose is built for radiator coolant routing in upper hose applications that require an OEM-style formed shape. Made from EPDM and plastic, it provides a direct-fit replacement option for select Buick, Cadillac, and Chevrolet vehicles from 1994 to 1996.

As part of the Gates Molded Coolant Hose line, this hose is engineered for common cooling-system service needs, including upper, lower, bypass, and heater hose applications where a molded profile is required. The Gates 22116 is a practical replacement choice for owners servicing a 1994-1996 Chevrolet Caprice, 1994-1996 Chevrolet Impala, or 1994-1996 Buick Roadmaster.

Key Features

• Part number: 22116
• Brand line: Gates Molded Coolant Hose
• Radiator coolant hose for upper hose applications
• EPDM and plastic construction
• Molded design for OE-style routing
• 1.27 in. / 32 mm inside diameter at both ends
• 19.3 in. / 490 mm centerline length
• No spring and no quick-connect fittings

Application Details

Compatible with select 1994-1996 Buick Roadmaster, upper; 1994-1996 Cadillac Commercial Chassis, upper; 1994-1996 Cadillac Fleetwood, upper; 1994-1996 Chevrolet Caprice, upper; 1994-1996 Chevrolet Impala, upper; and 1994 Chevrolet Commercial Chassis, upper. This part cross-references Bosch 62223 and Dayco 72443 for the same application.

What This Hose Helps Address

• Cracked or split upper radiator hose material
• Coolant leaks at a worn molded hose section
• Incorrect hose routing from a non-formed replacement
• Heat-related hose deterioration in the cooling system
• Service replacement needs on a 1994-1996 Chevrolet Caprice or Impala cooling system

Installation Notes

Verify end diameters and centerline length against the original hose before installation. Confirm routing matches the vehicle’s upper coolant path and inspect adjoining clamps, necks, and coolant passages for wear or contamination. After installation, refill and bleed the cooling system according to the vehicle service procedure.

Quality Assurance

Gates molded coolant hoses are manufactured to OEM-quality specifications for fit and cooling-system service. The Gates 22116 is part of a broad replacement hose line covering multiple coolant applications, including upper radiator hose service.
