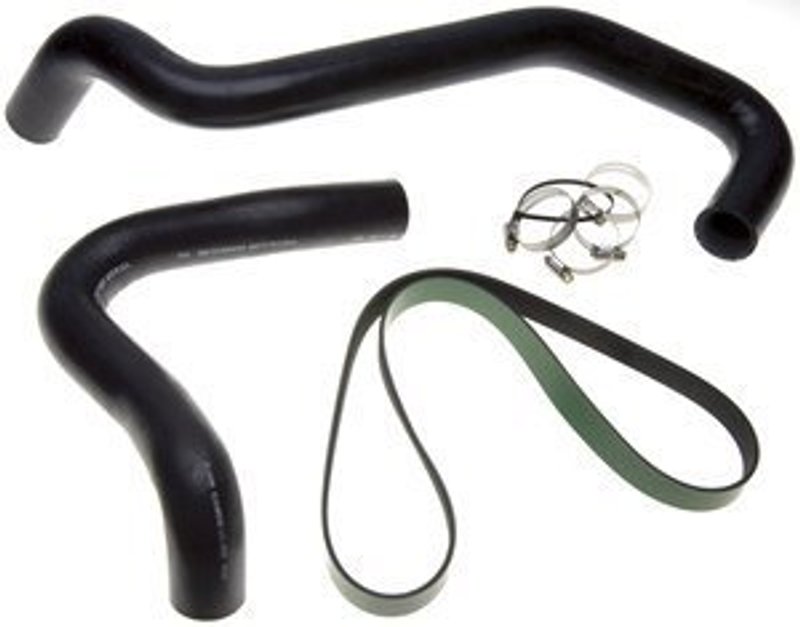

Gates 22690K Serpentine Belt Drive Enhancement Kit
Gates 22690K Solution Kit for Front-End Drive Service
The Gates 22690K Solution Kit is a precision-engineered serpentine belt drive enhancement kit for front-end accessory drive service. It is built for 2001-2003 Ford F-250 Super Duty and 2001-2003 Ford F-350 Super Duty applications with a single alternator and no ambulance prep package, where the upper hose routes around the serpentine belt.
Gates Solution Kits are developed to address common accessory drive concerns by improving OE drive design details. The 22690K package combines belt and cooling-system service components in one application-specific kit for Ford Super Duty trucks.
Key Features
- Application-specific serpentine belt drive enhancement kit
- Fits 2001-2003 Ford F-250 Super Duty, N/A
- Fits 2001-2003 Ford F-350 Super Duty, N/A
- For trucks without ambulance prep package and with single alternator
- Addresses upper hose routing around the serpentine belt
- Includes belt, hoses, clamps, and zip tie for the listed application
- Gates Solution Kit design for front-end accessory drive service
Detailed Description
Gates 22690K is engineered for Ford Super Duty trucks that need a targeted accessory drive solution rather than a generic replacement. This kit is listed for 2001-2003 Ford F-250 Super Duty and 2001-2003 Ford F-350 Super Duty models built after April 29, 2001, with no ambulance prep package and a single alternator. It is intended for vehicles where the upper hose routes around the serpentine belt, a layout that can create service and routing concerns in the front-end drive area.
As part of the Gates Solution Kit line, 22690K reflects Gates’ focus on accessory belt drive systems and OE-drive refinement. The kit contents include a belt, two hoses, four clamps, and a zip tie, supporting a complete service approach for the specified Ford F-250 Super Duty and Ford F-350 Super Duty applications. This part number is 22690K.
Common Issues Addressed
- Belt routing concerns caused by the upper hose path near the serpentine belt
- Chronic belt noise in the front accessory drive system
- Belt jump-off conditions in the specified Ford Super Duty application
- Service needs tied to aging belt and hose components
- Fitment-specific cooling and drive layout issues on single-alternator trucks
Installation Notes
Verify the vehicle is a 2001-2003 Ford F-250 Super Duty or 2001-2003 Ford F-350 Super Duty with no ambulance prep package and a single alternator before ordering. Confirm the build date is April 29, 2001 or later, and check that the upper hose routing matches the listed application. Follow factory service procedures for belt routing, hose placement, and clamp positioning during installation.
Quality Assurance
Gates is known for accessory belt drive system engineering and for developing service solutions that refine original equipment drive layouts. The 22690K Solution Kit is built around that product-line approach for a direct-fit service application.
| Brand | Gates |
|---|---|
| Part Number | 22690K |
| Position | Solution Kit |
| Hose Quantity | 2 |
| Belt Quantity | 1 |
| Clamp Quantity | 4 |
| Pulley Quantity | 0 |
| Bolt Quantity | 0 |
| Dust Shield Included | No |
| 9809 | Yes |
| 9824 | No |
| 9825 | 0 |
| 9826 | 0 |
| 9841 | 0 |
| Contents | Belt, 2 hoses, 4 clamps, zip tie |
| Includes Dust Shield | No |
| Includes Water Pump | No |
| Includes Zip Tie | Yes |
| Number of Alt Decoupler Pulleys | 0 |
| Number of Belts | 1 |
| Number of Bolts | 0 |
| Number of Clamps | 4 |
| Number of Components | 8 |
| Number of Hoses | 2 |
| Number of Idlers | 0 |
| Number of Oil Seals | 0 |
| Number of Tensioners | 0 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Ford | F-250 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
| 2003 | Ford | F-350 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
| 2002 | Ford | F-250 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
| 2002 | Ford | F-350 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
| 2001 | Ford | F-250 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
| 2001 | Ford | F-350 Super Duty | 7.3L | V8 | DIESEL | N/A | W/O Ambulance Prep. Pkg.; W/Single Alt.; Upper hose routes around serpentine belt; Apr. 29, 2001 & After; Solution Kit |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
