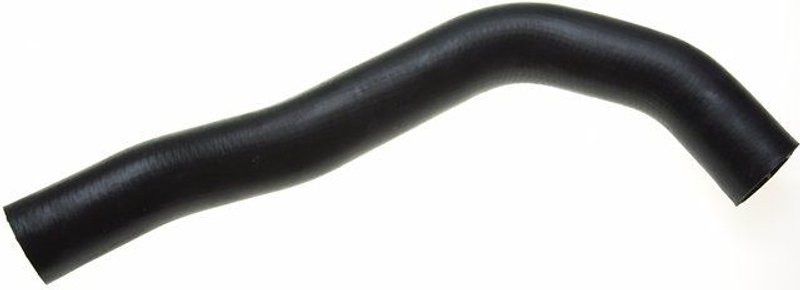

Gates 22698 Radiator Coolant Hose - Upper

Gates 22698 Molded Coolant Hose Overview

The Gates 22698 molded coolant hose is an OE-style radiator coolant hose built for upper cooling system service. It uses EPDM construction and molded shaping to match the routing needed on select Chevrolet Silverado 2500 HD, Silverado 3500, GMC Sierra 2500 HD, and Sierra 3500 applications.

Gates Molded Coolant Hose products are built for upper, lower, bypass, heater, and other coolant hose positions with OEM-quality specifications. This line is intended to simplify radiator hose replacement on vehicles that require a formed hose profile rather than a straight universal hose.

Key Features

• Brand: Gates Molded Coolant Hose
• Part number: 22698
• Part type: radiator coolant hose
• Material: EPDM
• Molded construction for formed coolant routing
• Centerline length: 21.6 in. (549 mm)
• End 1 inside diameter: 1.8 in. (46 mm)
• End 2 inside diameter: 1.8 in. (46 mm)
• Upper hose application
• Contains spring: No

Detailed Description

Gates 22698 is a molded upper radiator coolant hose made to follow the factory-style path in the cooling system. The EPDM rubber construction is suited for coolant service, while the molded shape helps match the original hose geometry on the vehicle. This part cross-references Dayco 72273 for the same application.

Compatible With 2001-2005 Chevrolet Silverado 2500 HD, upper; 2001-2005 Chevrolet Silverado 3500, upper; 2001-2005 GMC Sierra 2500 HD, upper; and 2001-2005 GMC Sierra 3500, upper. Use Gates 22698 when replacing a formed upper radiator hose on these trucks and you need the correct molded profile and hose dimensions.

Common Problems This Hose Can Address

• Cracked or hardened upper radiator hose material
• Coolant leaks at the hose body from age or heat cycling
• Collapsed or misshaped hose routing in the cooling system
• Incorrect fit from a straight hose used in a formed application
• Cooling system service on select Silverado and Sierra HD trucks

Installation Notes and Tips

Verify the hose routing, end diameters, and centerline length before installation. Match the hose to the upper position only, and inspect adjoining clamps, necks, and coolant connections for wear or corrosion before reassembly. Drain coolant as needed and confirm the hose seats fully on both ends after installation.

Quality Assurance

Gates manufactures this molded coolant hose to OEM-quality specifications for formed radiator hose replacement. The Gates 22698 is part of the brand’s broad molded coolant hose line, which covers multiple coolant system applications with factory-style fitment.
